Toyota HIGHLANDER — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1COWL 0009 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1CONSOLE BOX 0014 1CONSOLE BOX 0015 1STEERING 0016 1SEAT 0017 1DOOR & ROOF 0018 1FLOOR & BACK DOOR 0019 1FLOOR & BACK DOOR 0020 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-33V10iAXUH7#202311

main82715-33V10iAXUH7#202002-202210

main82715-33V10iAXUH7#202210-202311

main82715-48Q00iGSU7#201912-202210

main8946A-48110iTXUA70..S¥350202311-202410

main8946A-48110iTXUA7#¥350202210-202311

main8946A-48110iTXUA75;TXUA70..G,M,N¥350202311

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-42K60iAXUH7#¥520202002-202210

main82715-42K60iAXUH7#¥520202210-202311

main82715-42K60iAXUH7#¥520202311

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXUH7#,TXUA7#¥2,410202210-202311

main89422-33040iAXUH7#¥2,410202002-202210

main89422-33040iTXUA70..S¥2,410202311-202410

main89422-33040iTXUA75;AXUH7#,TXUA70..G,M,N¥2,410202311

main89422-47010iGSU7#¥2,410201912-202210

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAXUH7#¥2,410202210-202311

MEXICO SPEC

main89422-33040iAXUH7#¥2,410202002-202210

main89422-33040iAXUH7#¥2,410202311

MEXICO SPEC

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXUH7#¥5,900202210-202311

main89451-10010iAXUH7#¥5,900202311

main89451-10010iAXUH7#¥5,900202002-202210

89467BSENSOR, AIR FUEL RATIO

main89467-0E280iAXUH7#202002-202210

main89467-0E280iAXUH7#202311

main89467-0E280iAXUH7#202210-202311

main89467-0E290iGSU7#201912-202210

main89467-0E450iTXUA7#202210-202311

main89467-0E450iTXUA70..S202311-202410

main89467-0E450iTXUA75;TXUA70..G,M,N202311

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0E270iGSU7#201912-202210

main89467-0R100iAXUH7#202002-202210

main89467-0R100iAXUH7#202210-202311

main89467-0R100iAXUH7#202311

main89467-F6020iTXUA7#202210-202311

main89467-F6020iTXUA70..S202311-202410

main89467-F6020iTXUA75;TXUA70..G,M,N202311

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXUH7#¥3,670202002-202204

sub89491-33052¥3,330

main89491-33052iTXUA75;AXUH7#,TXUA70..G,M,N¥3,330202311

main89491-33052iAXUH7#¥3,330202205-202210

main89491-33052iAXUH7#,TXUA7#¥3,330202210-202311

main89491-33052iTXUA70..S¥3,330202311-202410

main89491-48021iGSU7#¥4,410201912-202002

sub89491-48040¥3,670

main89491-48040iGSU7#¥3,670202002-202204

sub89491-48041¥3,330

main89491-48041iGSU7#¥3,330202205-202210

89615SENSOR, KNOCK CONTROL

main89615-06010iAXUH7#202002-202210

MARK 89615-06010

main89615-06010iGSU7#201912-202210

(L)

main89615-20090iAXUH7#¥2,370202002-202210

MARK 89615-20090

main89615-20090iGSU7#¥2,370201912-202210

(J)

main89615-78010iAXUH7#,TXUA7#¥10,600202210-202311

(J)

main89615-78010iTXUA75;AXUH7#,TXUA70..G,M,N¥10,600202311

(J)

main89615-78010iAXUH7#¥10,600202207-202210

MARK 89615-78010

main89615-78010iTXUA70..S¥10,600202311-202410

(J)

main89615-F6010iTXUA75;AXUH7#,TXUA70..G,M,N202311

(L)

main89615-F6010iAXUH7#202207-202210

MARK 89615-F6010

main89615-F6010iAXUH7#,TXUA7#202210-202311

(L)

main89615-F6010iTXUA70..S202311-202410

(L)

90105A0120

main90105-A0120

90105A0127

main90105-A0127

9011906A23

main90119-06A23¥60

90119A0160

main90119-A0160

90119A0476

main90119-A0476

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180825

main91551-80825¥80

9155180835

main91551-80835¥80

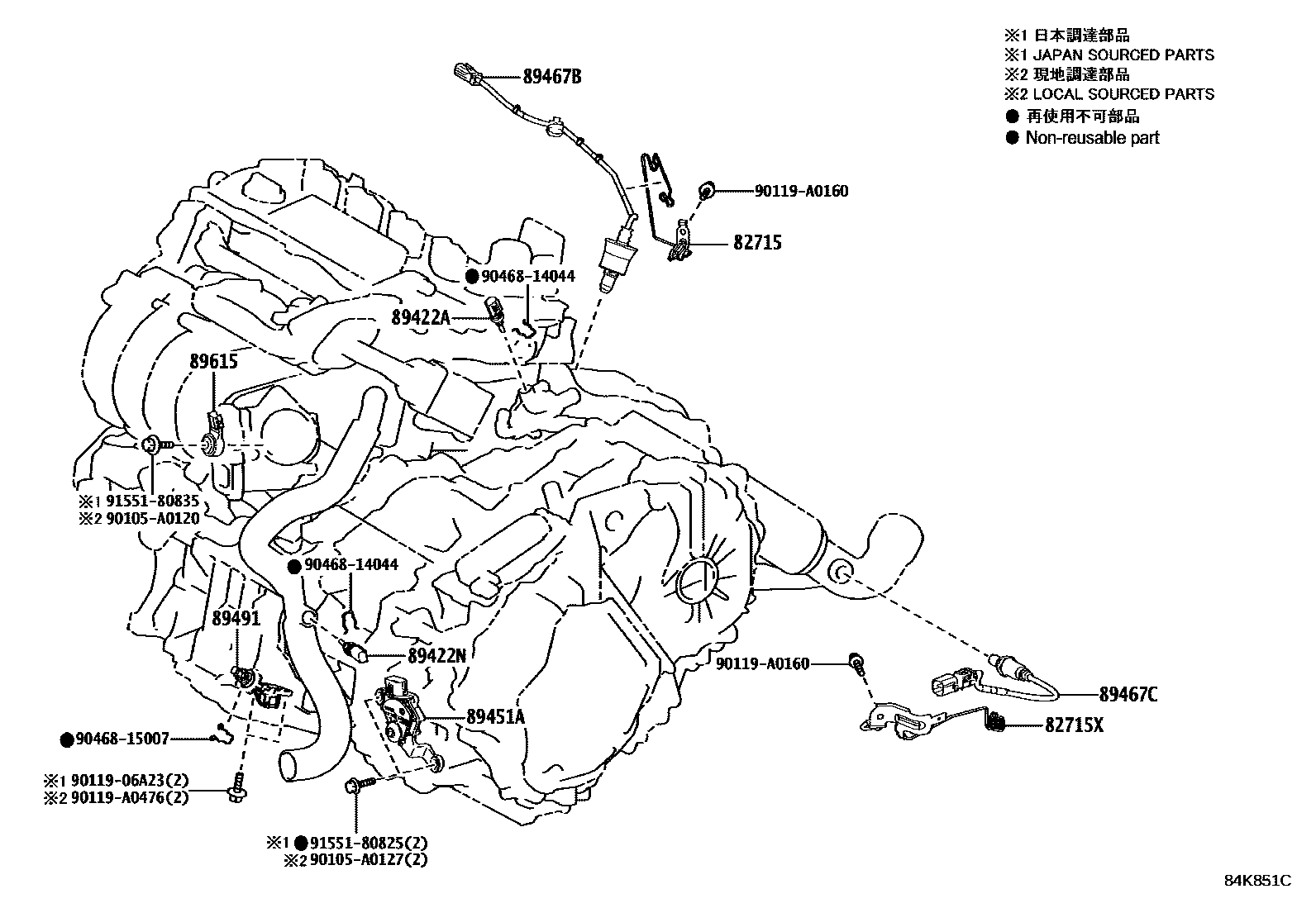

18 parts on this diagram · 18 diagrams in section
