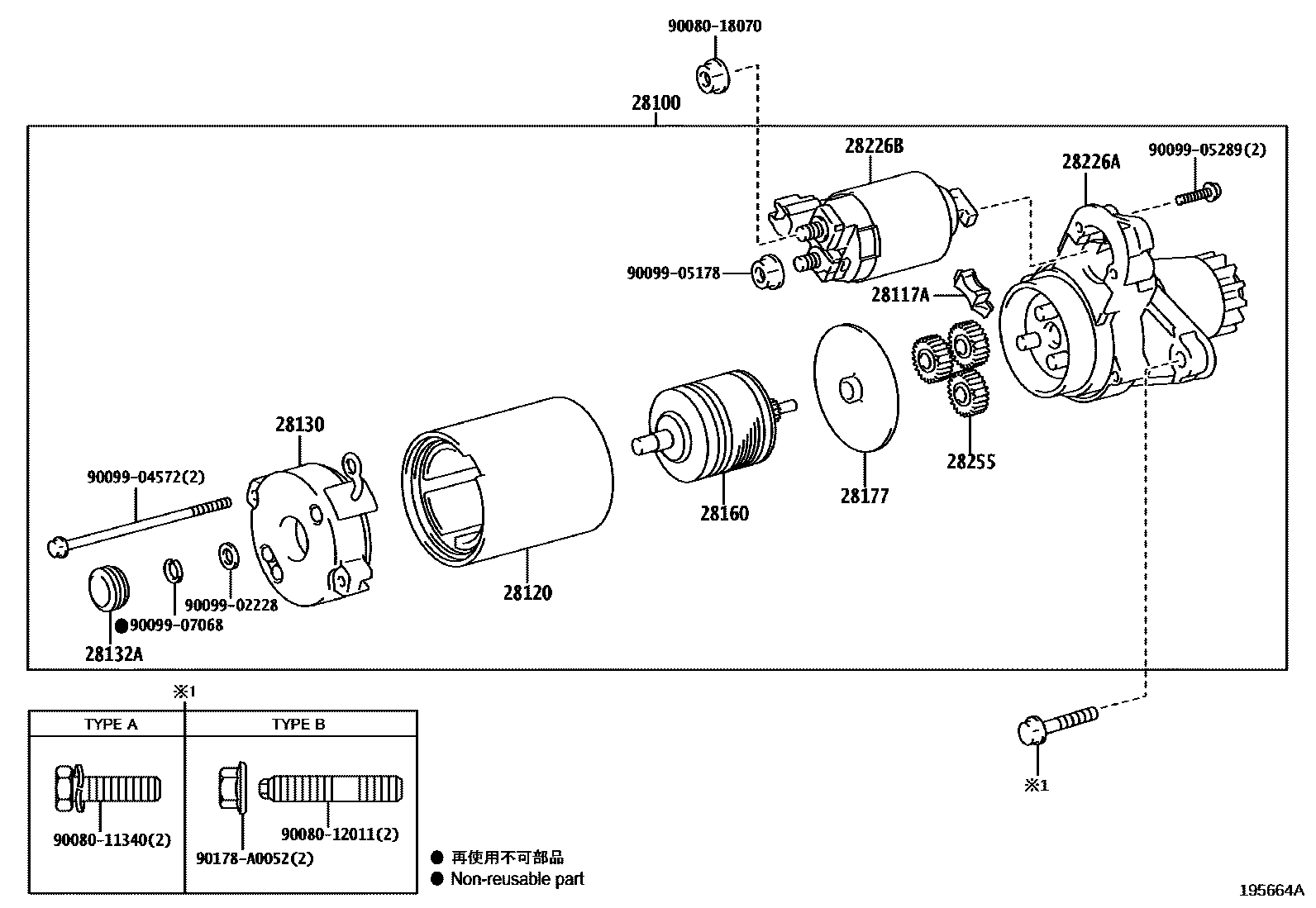

Toyota HIGHLANDER — STARTER

0001 112V 1.7KW;W/O(STOP & START SY0002 112V 1.7KW;W(STOP & START SYST0003 112V 1.5KW 0004 112V 1.6KW

28100STARTER ASSY

main28100-0P090i2GRFKS..GSU7#201912-202210

12V 1.7KW

main28100-F0140iT24AFTS..TXUA70..S202311-202410

12V 1.5KW

main28100-F0140iT24AFTS..TXUA7#202210-202311

12V 1.5KW

main28100-F0140iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N202311

12V 1.5KW

28117ASEAL, RUBBER

28120YOKE ASSY, STARTER

main28120-25070iT24AFTS..TXUA7#202210-202311

main28120-25070iT24AFTS..TXUA70..S202311-202410

main28120-25070iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N202311

main28120-31260i2GRFKS..GSU7#201912-202210

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31200

28132ACOVER, STARTER COMMUTATOR END FRAME

28160ARMATURE ASSY, STARTER

main28160-25120iT24AFTS..TXUA7#¥11,700202210-202311

main28160-25120iT24AFTS..TXUA70..S¥11,700202311-202410

main28160-25120iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N¥11,700202311

main28160-36110i2GRFKS..GSU7#¥13,100201912-202210

28177PLATE(FOR STARTER ARMATURE)

main28177-28040

28226ASTARTER KIT, MOTOR TERMINAL

main28226-31260i2GRFKS..GSU7#201912-202210

28226BSTARTER KIT, REPAIR SERVICE

main28150-47240i2GRFKS..GSU7#201912-202210

main28150-47250iT24AFTS..TXUA7#¥10,900202210-202311

main28150-47250iT24AFTS..TXUA70..S¥10,900202311-202410

main28150-47250iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N¥10,900202311

28255GEAR, PLANET

main28255-20020

9008011340

main90080-11340

9008012011

main90080-12011

9008018070

main90080-18070¥50

9009902228

main90099-02228¥0

9009904572

main90099-04572¥0

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068¥0

90178A0052

main90178-A0052

19 parts on this diagram · 4 diagrams in section
