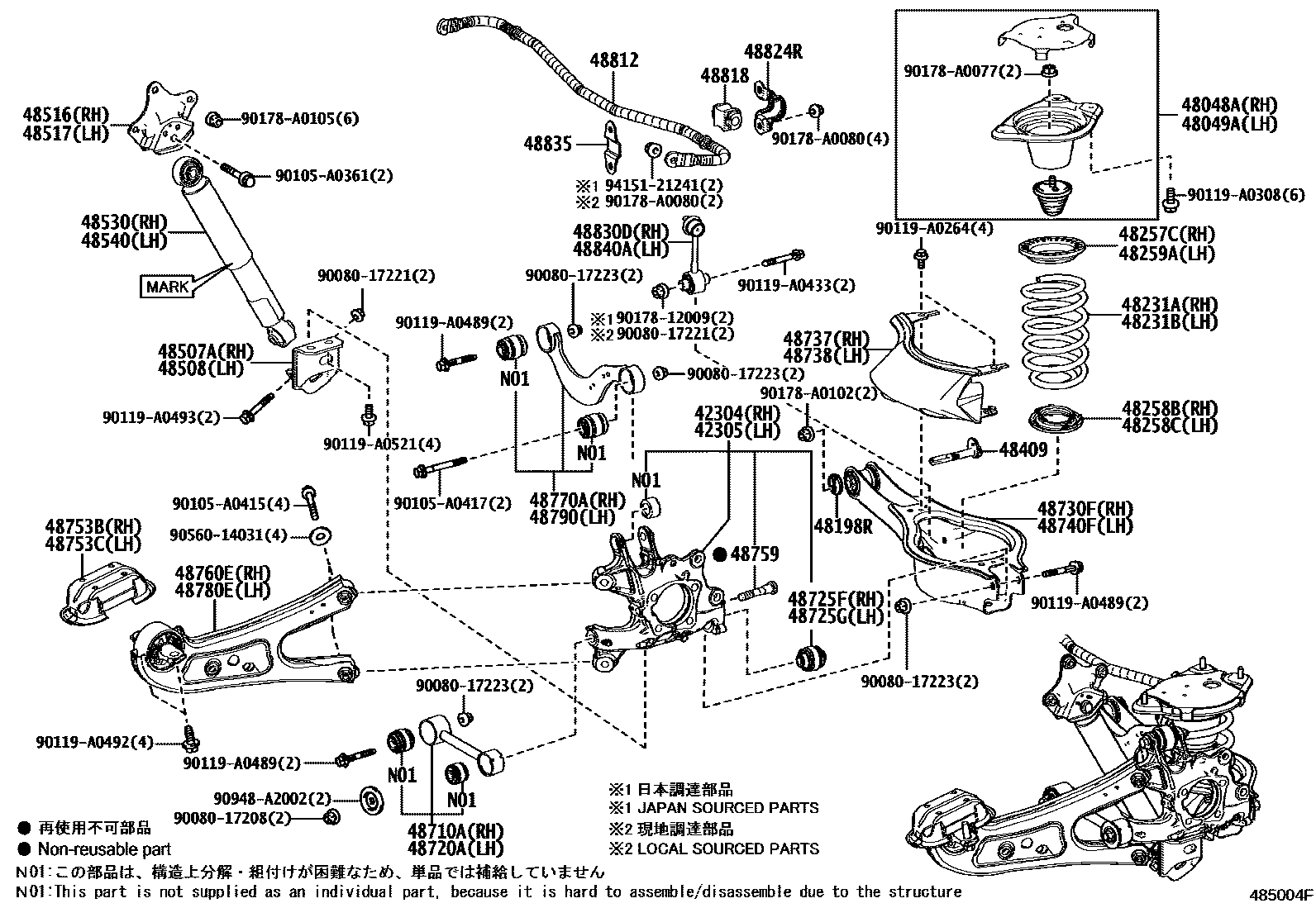

Toyota HIGHLANDER — REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48048ASEAT SUB-ASSY, SPRING, RH
48049ASEAT SUB-ASSY, SPRING, LH
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH
48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-0E330
MARK 48531-0E340
MARK 48531-0E350
MARK 48531-0E350
MARK 48531-0E350
MARK 48531-0E360
MARK 48531-0E360
MARK 48531-0E360
MARK 48531-0E370
MARK 48531-0E370
MARK 48531-0E370
MARK 48531-0E380
MARK 48531-0E380
MARK 48531-0E380
MARK 48531-0E520
MARK 48531-0E520
MARK 48531-0E530
MARK 48531-0E530
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-0E330
MARK 48531-0E340
MARK 48531-0E350
MARK 48531-0E350
MARK 48531-0E350
MARK 48531-0E360
MARK 48531-0E360
MARK 48531-0E360
MARK 48531-0E370
MARK 48531-0E370
MARK 48531-0E370
MARK 48531-0E380
MARK 48531-0E380
MARK 48531-0E380
MARK 48531-0E520
MARK 48531-0E520
MARK 48531-0E530
MARK 48531-0E530
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48759PIN, LOWER CONTROL ARM
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48824RBRACKET, STABILIZER(FOR REAR)
48830DLINK ASSY, REAR STABILIZER, RH
48835BRACKET, REAR STABILIZER, LOWER
48840ALINK ASSY, REAR STABILIZER, LH
9008017208
main90080-17208
9008017221
main90080-17221
9008017223
main90080-17223
90105A0361
main90105-A0361
90105A0415
main90105-A0415
90105A0417
main90105-A0417
90119A0264
main90119-A0264
90119A0308
main90119-A0308
90119A0433
main90119-A0433
90119A0489
main90119-A0489
90119A0492
main90119-A0492
90119A0493
main90119-A0493
90119A0521
main90119-A0521
9017812009
90178A0077
main90178-A0077
90178A0080
main90178-A0080
90178A0102
main90178-A0102
90178A0105
main90178-A0105
9056014031
90948A2002
main90948-A2002
9415121241
60 parts on this diagram · 1 diagram in section
