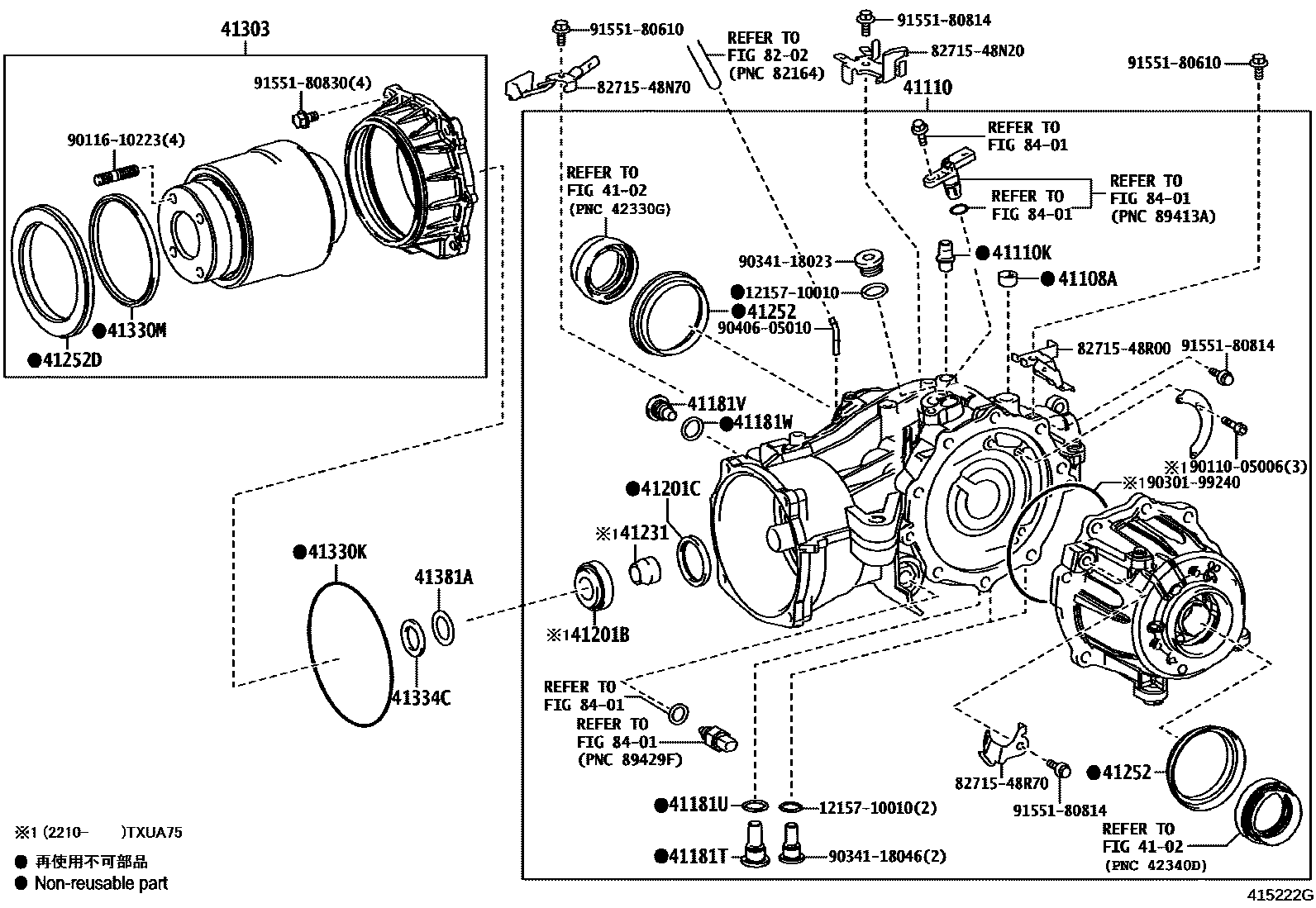

Toyota HIGHLANDER — REAR AXLE HOUSING & DIFFERENTIAL
4102
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=38:17=2.235
*FGR=38:17=2.235
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41181TPLUG (FOR REAR DIFFERENTIAL DRAIN)
41181UGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41181VPLUG (FOR REAR DIFFERENTIAL FILLER)
41181WGASKET(FOR DIFFERENTIAL FILLER PLUG)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252DDEFLECTOR, DUST, NO.2 (FOR REAR DIFFERENTIAL)
41303COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL
41330KRING, O (FOR TRANSMISSION COUPLING)
41330MSEAL, DUST (FOR TRANSMISSION COUPLING)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=1.80
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
41381AWASHER, CONICAL SPRING
8202
8401
1215710010GASKET, DRAIN PLUG(FOR OIL STRAINER COVER)
8271548N20BRACKET,WIRING HARNESS CLAMP
main82715-48N20
8271548N70BRACKET,WIRING HARNESS CLAMP
main82715-48N70
8271548R00BRACKET,WIRING HARNESS CLAMP
main82715-48R00
8271548R70BRACKET,WIRING HARNESS CLAMP
main82715-48R70
9011005006
9011610223
9030199240
9034118023
9034118046
9040605010
9155180610
9155180814
9155180830
34 parts on this diagram · 6 diagrams in section
