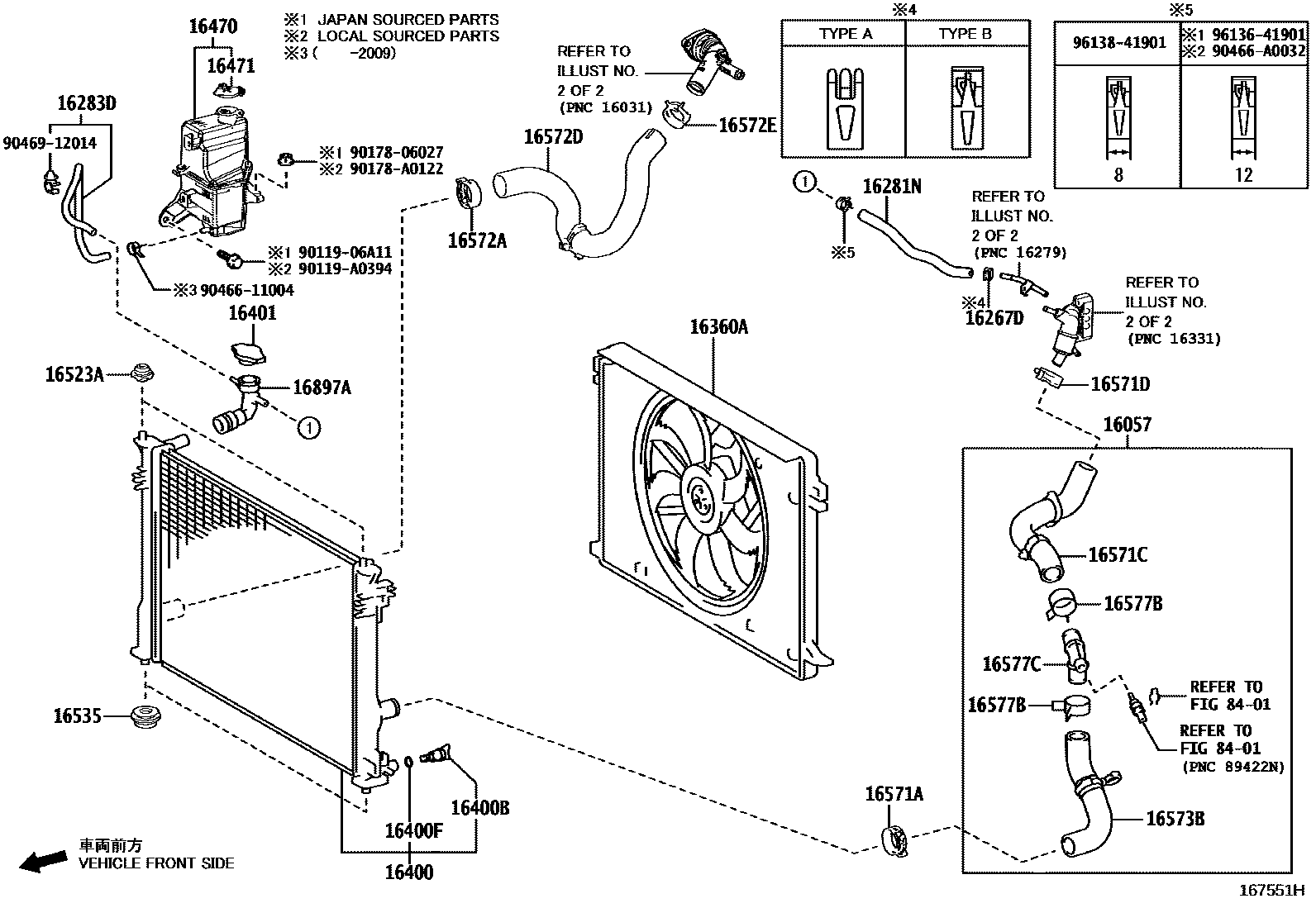

Toyota HIGHLANDER — RADIATOR & WATER OUTLET
16057HOSE SUB-ASSY, RADIATOR
16267HOSE, WATER BY-PASS, NO.3
*489,*636
*636,*489 OR *769
16267DCLIP(FOR WATER BY-PASS HOSE NO.4)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16281HOSE, WATER BY-PASS, NO.4
*489,*636
*636,*489
*636,*489 OR *769
*489,*636
16281NHOSE, WATER BY-PASS, NO.4
16283HOSE, WATER BY-PASS, NO.6
*489,*636
*636,*489 OR *769
16283DHOSE, WATER BY-PASS, NO.6
16360AFAN ASSY, W/MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
(J)
(L)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
(J)
(L)
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
(J)
(L)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1,(J)
(J)
NO.2,(J)
(L)
NO.2,(L)
NO.1,(L)
16573BHOSE, RADIATOR, NO.3
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16577CPIPE, RADIATOR
16897ANECK, FILLER
8401
9011906A11
90119A0394
main90119-A0394
9017806027
90178A0122
main90178-A0122
9046611004
90466A0032
main90466-A0032
9046912014
9613641901
9613841901
36 parts on this diagram · 12 diagrams in section
