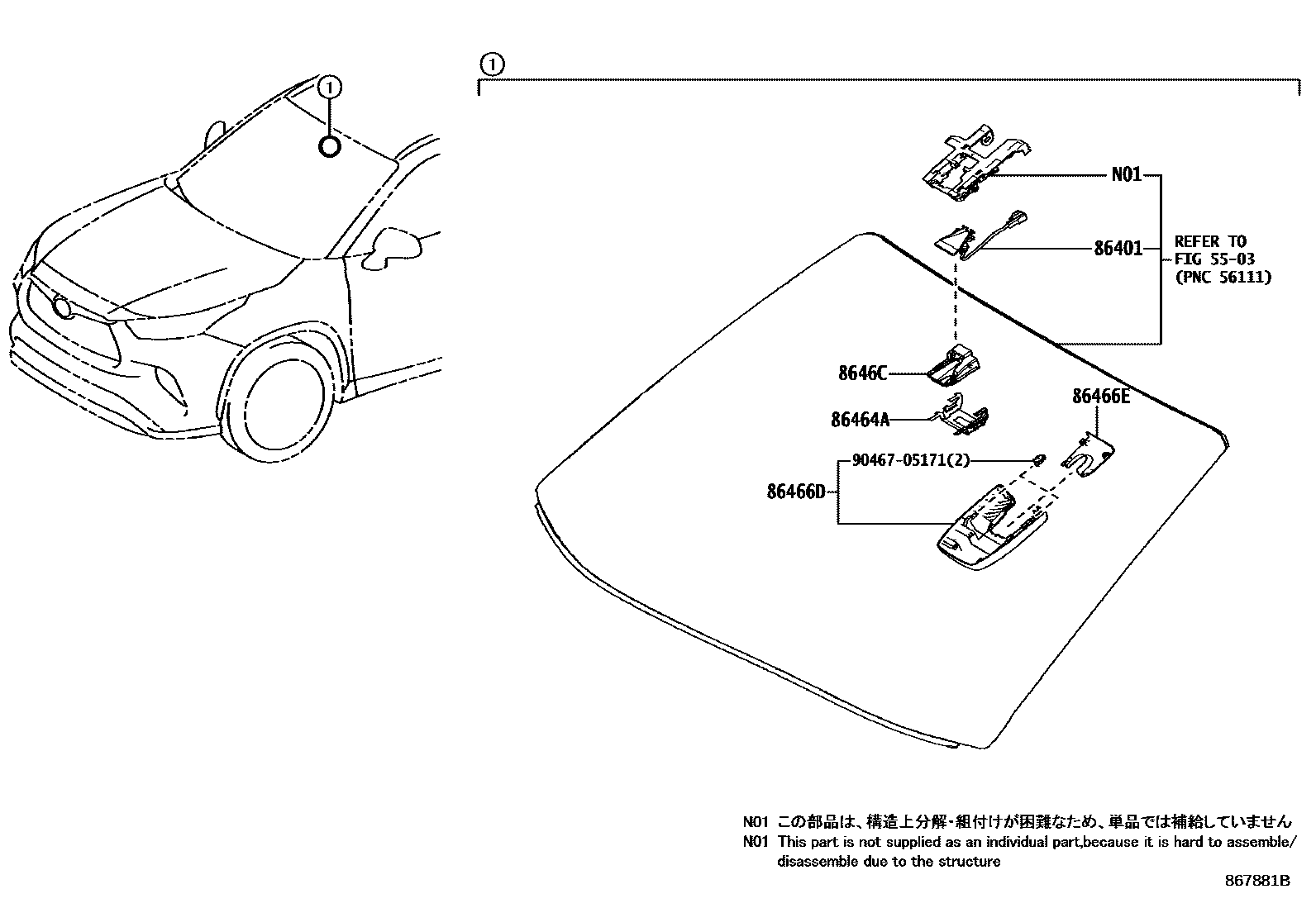

Toyota HIGHLANDER — PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-0E010iAXUH7#,TXUA7#202210-202311

main86401-0E010iTXUA70..S202311-202410

main86401-0E010iAXUH7#,GSU7#201912-202210

main86401-0E010iTXUA75;AXUH7#,TXUA70..G,M,N202311

86464ALATCH, FORWARD RECOGNITION

main86464-08010iTXUA75;AXUH7#,TXUA70..G,M,N202311

main86464-08010iAXUH7#,GSU7#202105-202210

main86464-08010iAXUH7#,TXUA7#202210-202311

main86464-08010iTXUA70..S202311-202410

main86464-26010iAXUH7#,GSU7#¥500201912-202104

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0E030iTXUA70..S202311-202410

main86466-0E030iAXUH7#,GSU7#201912-202210

main86466-0E030iAXUH7#,TXUA7#202210-202311

main86466-0E030iTXUA75;AXUH7#,TXUA70..G,M,N202311

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-0E040iAXUH7#,GSU7#201912-202210

main86466-0E040iAXUH7#,TXUA7#202210-202311

main86466-0E040iTXUA70..S202311-202410

main86466-0E040iTXUA75;AXUH7#,TXUA70..G,M,N202311

8646CCAMERA, FORWARD RECOGNITION

main8646C-0E040iAXUH7#,GSU7#201912-202009

main8646C-0E070iAXUH7#,GSU7#202009-202210

main8646C-0E071iAXUH7#,TXUA7#202210-202311

main8646C-0E250iTXUA70..S202311-202410

*614

main8646C-0E250iTXUA75;AXUH7#,TXUA70..G,M,N202311-202411

*614

main8646C-0E251iTXUA75;AXUH7#,TXUA70..G,M,N202411

*614

9046705171

main90467-05171¥60

7 parts on this diagram · 1 diagram in section
