Toyota HIGHLANDER — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12281BHANGER, ENGINE, NO.1

main12281-25030iA25AFXS..AXUH7#¥4,100202210-202311

*489,*636

main12281-25030iA25AFXS..AXUH7#¥4,100202311

*636,*489 OR *769

main12281-25030iA25AFXS..AXUH7#¥4,100202002-202210

*489,*636

main12281-25080iT24AFTS..TXUA7#¥5,300202210-202311

main12281-25080iT24AFTS..TXUA70..S¥5,300202311-202410

main12281-25080iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N¥5,300202311

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-0P020i2GRFKS..GSU70201912-202210

main12303-0P030i2GRFKS..GSU75201912-202210

main12303-F0140iA25AFXS..AXUH7#202002-202210

main12303-F0140iA25AFXS..AXUH7#202210-202311

main12303-F0140iA25AFXS..AXUH7#202311

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0P040i2GRFKS..GSU7#201912-202210

main12305-F0150iA25AFXS..AXUH7#202002-202210

main12305-F0150iA25AFXS..AXUH7#202210-202311

main12305-F0150iA25AFXS..AXUH7#202311

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-F0080iA25AFXS..AXUH7#202002-202210

main12306-F0080iA25AFXS..AXUH7#202210-202311

main12306-F0080iA25AFXS..AXUH7#202311

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0P160i2GRFKS..GSU7#201912-202210

main12311-25120iA25AFXS..AXUH7#¥4,290202207-202210

(J)

main12311-25120iA25AFXS..AXUH7#¥4,290202210-202311

(J)

main12311-25120iA25AFXS..AXUH7#¥4,290202311

(J)

main12311-F0120iA25AFXS..AXUH7#202207-202210

(L)

main12311-F0120iA25AFXS..AXUH7#202002-202207

main12311-F0120iA25AFXS..AXUH7#202210-202306

(L)

main12311-F0160iT24AFTS..TXUA7#202210-202311

main12311-F0160iT24AFTS..TXUA70..S202311-202410

main12311-F0160iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N202311

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0P080i2GRFKS..GSU7#201912-202210

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25031iA25AFXS..AXUH7#¥3,720202002-202210

*489,*636

main12315-25031iA25AFXS..AXUH7#¥3,720202210-202311

*636,*489

main12315-25031iA25AFXS..AXUH7#¥3,720202311

*636,*489 OR *769

main12315-25070iT24AFTS..TXUA70..S¥3,720202311-202410

main12315-25070iT24AFTS..TXUA7#¥3,720202210-202311

main12315-25070iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N¥3,720202311

12318STAY, ENGINE MOUNTING, LH

main12318-F0110iA25AFXS..AXUH7#202002-202210

main12318-F0110iA25AFXS..AXUH7#202210-202311

main12318-F0110iA25AFXS..AXUH7#202311

12341SPACER, ENGINE MOUNTING

main12341-F0010iA25AFXS..AXUH7#202210-202311

main12341-F0010i2GRFKS..GSU7#201912-202210

main12341-F0010iA25AFXS..AXUH7#202002-202210

main12341-F0010iT24AFTS..TXUA70..S202311-202410

main12341-F0010iA25AFXS..AXUH7#202311

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0P160i2GRFKS..GSU7#201912-202210

main12361-F0220iT24AFTS..TXUA70..S¥14,700202311-202410

main12361-F0220iT24AFTS..TXUA70¥14,700202210-202311

main12361-F0220iT24AFTS..TXUA70..G,M,N¥14,700202311

main12361-F0230iT24AFTS..TXUA75202210-202311

main12361-F0230iT24AFTS..TXUA75202311

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-F0210iA25AFXS..AXUH7#202002-202210

main12361-F0210iA25AFXS..AXUH7#202210-202311

main12361-F0210iA25AFXS..AXUH7#202311

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0P330i2GRFKS..GSU70201912-202210

main12371-0P340i2GRFKS..GSU75201912-202210

main12371-F0170iA25AFXS..AXUH7#202002-202210

main12371-F0210iA25AFXS..AXUH7#202311

main12371-F0210iA25AFXS..AXUH7#202210-202311

main12371-F0260iT24AFTS..TXUA70..S¥14,700202311-202410

main12371-F0260iT24AFTS..TXUA70¥14,700202210-202311

main12371-F0260iT24AFTS..TXUA70..G,M,N¥14,700202311

main12371-F0310iT24AFTS..TXUA75202311

main12371-F0310iT24AFTS..TXUA75202210-202311

23825AGUARD, FUEL DELIVERY

main23825-25010iA25AFXS..AXUH7#¥3,590202210-202303

main23825-25010iA25AFXS..AXUH7#¥3,590202002-202210

main23825-25010iA25AFXS..AXUH7#¥3,590202303-202311

(J)

main23825-25010iA25AFXS..AXUH7#¥3,590202311

(J)

main23825-F0080iA25AFXS..AXUH7#202311

(L)

main23825-F0080iA25AFXS..AXUH7#202303-202311

(L)

90105A0354

main90105-A0354

90105A0355

main90105-A0355

90119A0438

main90119-A0438

90119A0439

main90119-A0439

90119A0440

main90119-A0440

90119A0442

main90119-A0442

90119A0443

main90119-A0443

90178A0105

main90178-A0105

90178A0107

main90178-A0107

91552F1040

main91552-F1040¥120

91552F1090

main91552-F1090¥190

91553G1040

main91553-G1040¥290

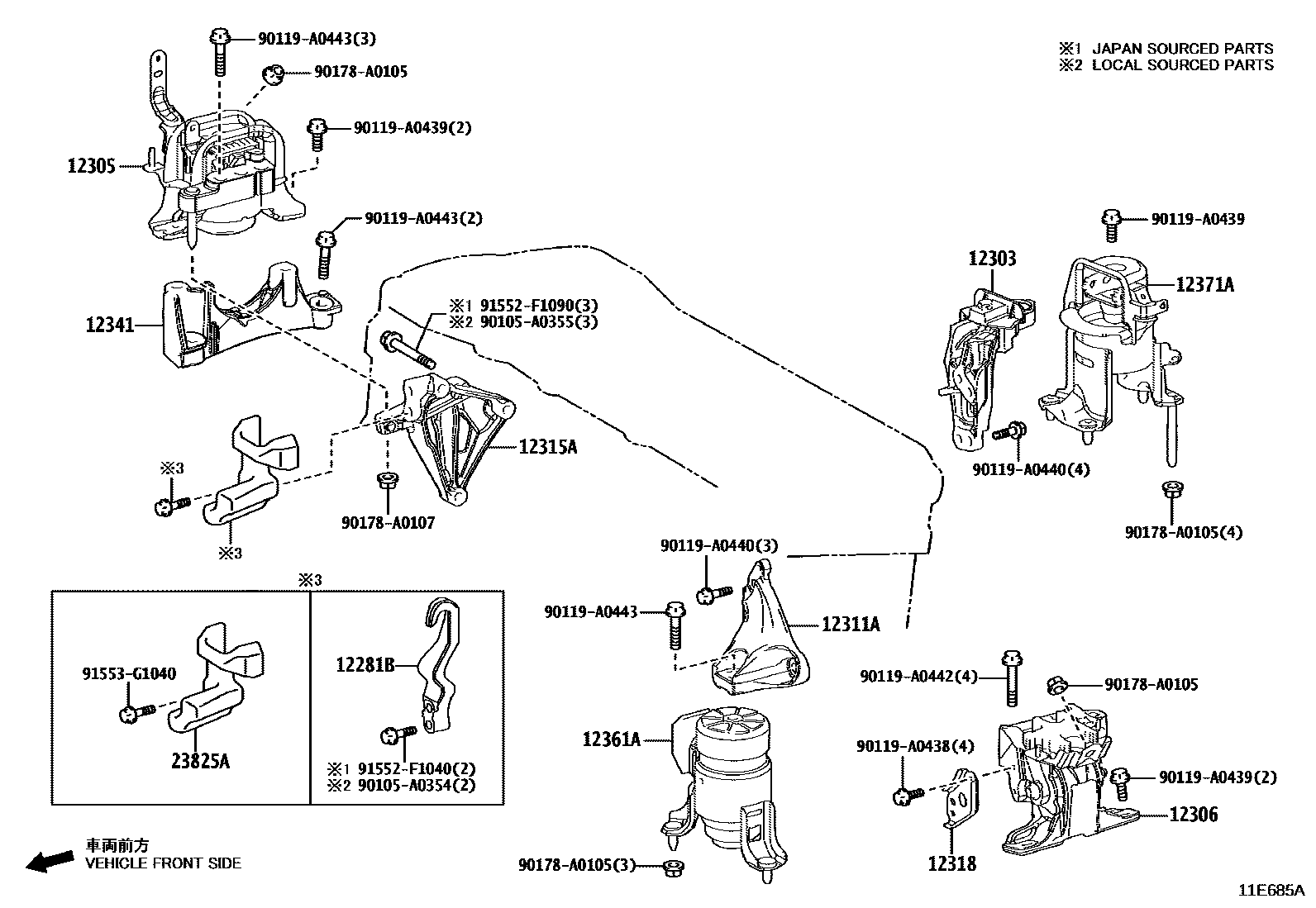

25 parts on this diagram · 5 diagrams in section
