Toyota HIGHLANDER — METER

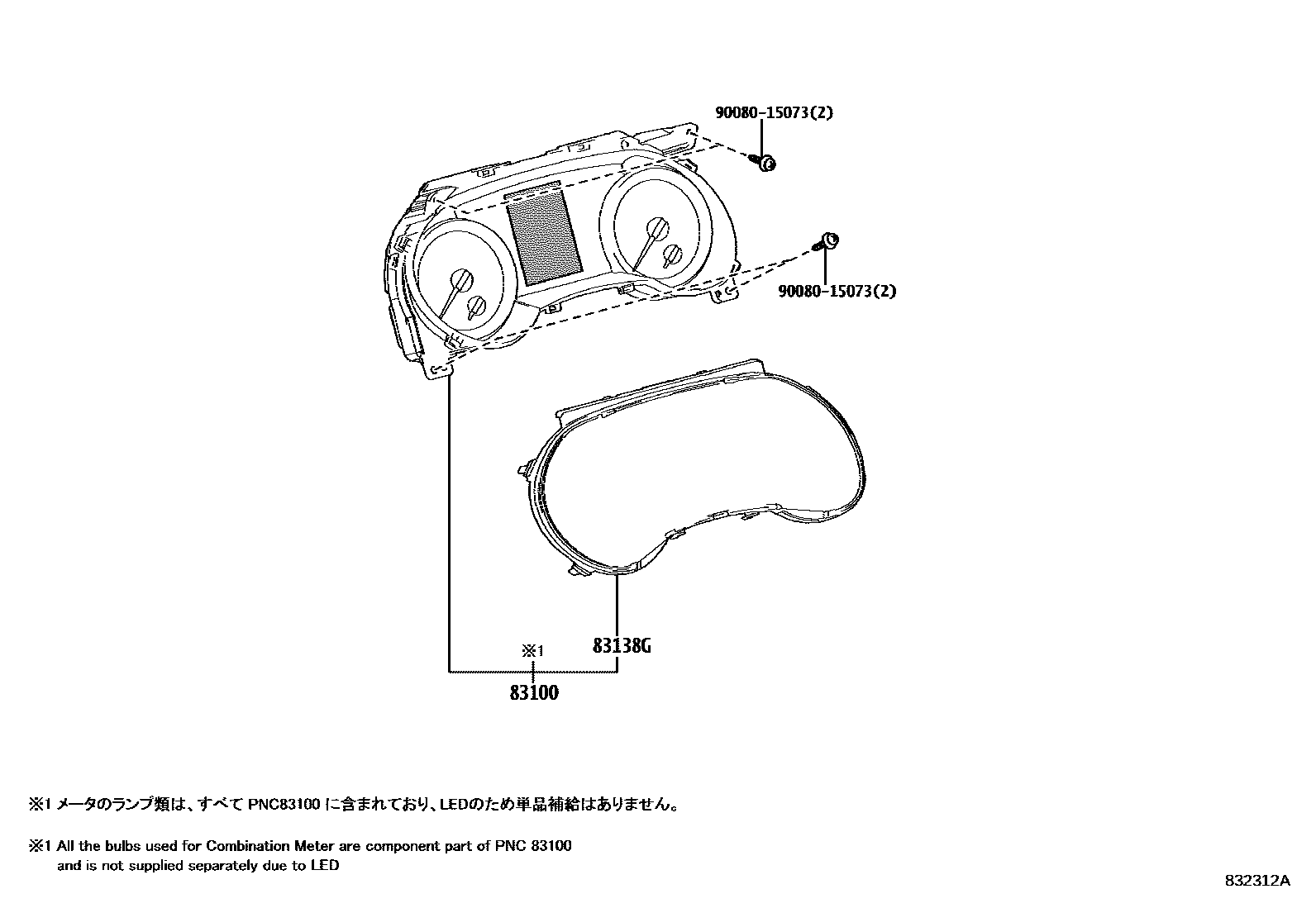

Parts diagram
83100METER ASSY, COMBINATION
main83800-0EC40i201912-202006
DENSO
sub83800-0EC41
main83800-0EC41i202006-202009
DENSO
sub83800-0EC42
main83800-0EC60i202002-202009
DENSO
sub83800-0EN70
main83800-0EE80i201912-202006
DENSO
sub83800-0EE81
main83800-0EE81i202006-202009
DENSO
sub83800-0EE82
main83800-0EF30i202002-202009
DENSO
sub83800-0EP30
main83800-0EJ50i202009-202011
DENSO
sub83800-0EJ51
main83800-0EJ51i202012-202110
DENSO
main83800-0EN50i202009-202011
DENSO
sub83800-0EN51
main83800-0EN51i202012-202110
DENSO
main83800-0EN70i202009-202110
DENSO
main83800-0EP30i202009-202110
DENSO
main83800-0EQ10i202411
DENSO
main83800-0ER60i202110-202210
DENSO
main83800-0ER80i202110-202210
DENSO
main83800-0ES20i202110-202210
DENSO
main83800-0ES40i202110-202210
DENSO
main83800-0EY00i202210-202311
DENSO
main83800-0EY20i202210-202311
DENSO
main83800-0EZ50i202210-202311
DENSO
main83800-0EZ50i202210-202311
DENSO,REAR NO.1 SEAT-BENCH SEAT
main83A00-0E030i202210-202311
DENSO,REAR NO.1 SEAT-BENCH SEAT
main83A00-0E030i202210-202311
DENSO
main83A00-0E080i202210-202311
DENSO
main83A00-0E090i202210-202311
DENSO
main83A00-0E360i202311-202411
DENSO
main83A00-0E360i202311-202411
DENSO,REAR NO.1 SEAT-BENCH SEAT
main83A00-0E380i202311-202411
DENSO,REAR NO.1 SEAT-BENCH SEAT
main83A00-0E380i202311-202411
DENSO
main83A00-0E430i202311-202407
DENSO
sub83A00-0E431
main83A00-0E431i202407-202411
DENSO
main83A00-0E450i202311-202407
DENSO
sub83A00-0E451
main83A00-0E451i202407-202411
DENSO
main83A00-0E600i202311-202411
DENSO
main83A00-0E600i202311-202410
DENSO
main83A00-0E610i202311-202411
DENSO
main83A00-0EB70i202411
DENSO
main83A00-0EB90i202411
DENSO
main83A00-0ED00i202411
DENSO
main83A00-0ED00i202411
DENSO,REAR NO.1 SEAT-BENCH SEAT
main83A00-0ED20i202411
DENSO
main83A00-0ED20i202411
DENSO,REAR NO.1 SEAT-BENCH SEAT
main83A00-0ED80i202411
DENSO
main83A00-0ED90i202411
DENSO
83138GGLASS, COMBINATION METER
main83852-0EC20i201912-202110
main83852-0EC40i201912-202210
main83852-0EC40i202311-202410
main83852-0EC40i202110-202210
main83852-0EC40i202311-202411
main83852-0EC40i202311
main83852-0EC40i202210-202311
main83852-0EX60i202411
REAR NO.1 SEAT-BENCH SEAT
main83852-0EX60i202411
CANADA SPEC
main83852-0EX60i202411
MEXICO SPEC
main83852-0EX60i202411
MEXICO SPEC&REAR NO.1 SEAT-BENCH SEAT
main83852-0EX60i202411
KOREA SPEC
main83852-0EX60i202210-202311
main83852-0EX60i202311-202411
main83852-0EX60i202311
9008015073
main90080-15073

3 parts on this diagram · 4 diagrams in section
