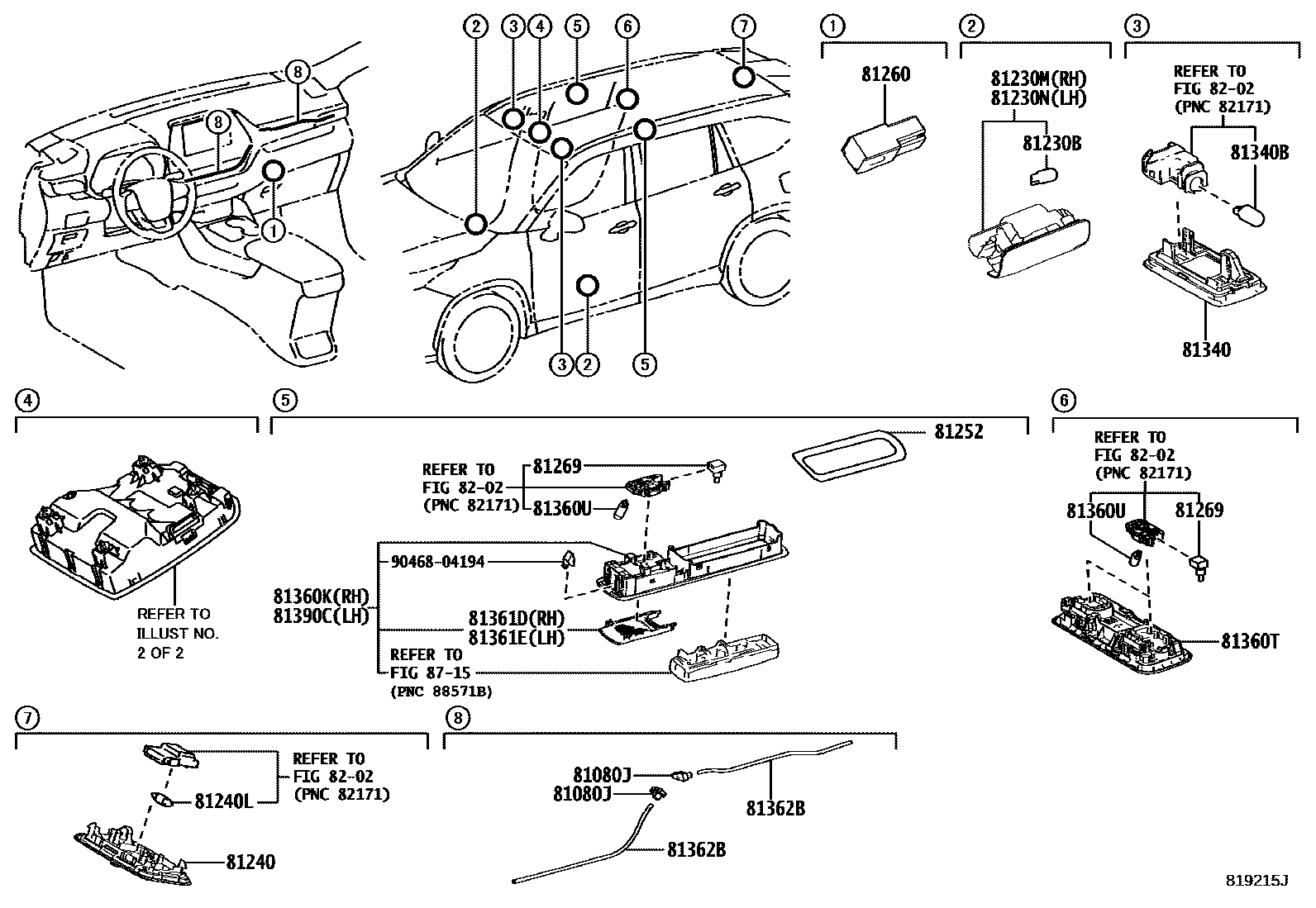

Toyota HIGHLANDER — INTERIOR LAMP

0001 1 0002 1 0003 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0E020iAXUH7#,GSU7#..G,S201912-202210

main81080-0E140iAXUH7#,TXUA7#..G,S202210-202311

HYBRID SPECIAL EDITION

main81080-0E140iAXUH7#,TXUA7#..G,S202210-202311

HYBRID SPECIAL EDITION&AUDIO-12.3INCH T-PREMIUM 6SPEAKER

main81080-0E140iTXUA70..S202311-202410

main81080-0E140iTXUA75..G,S;AXUH7#,TXUA70..G202311

HYBRID SPECIAL EDITION

main81080-0E140iTXUA75..G,S;AXUH7#,TXUA70..G202311

HYBRID SPECIAL EDITION&AUDIO-12.3INCH T-PREMIUM 6SPEAKER

81230BBULB(FOR COURTESY LAMP)

main90981-12010iAXUH7#,GSU7#¥110201912-202210

12V 5W

main90981-12010iAXUH7#,TXUA7#¥110202210-202311

12V 5W

main90981-12010iTXUA70..S¥110202311-202410

12V 5W

main90981-12010iTXUA75;AXUH7#,TXUA70..G,M,N¥110202311

12V 5W

81230MLAMP ASSY, COURTESY, RH

main81230-06040iAXUH7#,GSU7#201912-202210

main81230-06040iAXUH7#,TXUA7#202210-202311

main81230-06040iTXUA70..S202311-202410

main81230-06040iTXUA75;AXUH7#,TXUA70..G,M,N202311

81230NLAMP ASSY, COURTESY, LH

main81230-06040iAXUH7#,GSU7#201912-202210

main81230-06040iAXUH7#,TXUA7#202210-202311

main81230-06040iTXUA70..S202311-202410

main81230-06040iTXUA75;AXUH7#,TXUA70..G,M,N202311

81240LAMP ASSY, ROOM, NO.1

main81240-12100-B0iAXUH7#,TXUA7#..M202311

LT.GRAY,TRIM1#,2#

main81240-12100-B0iAXUH78..G202311

LT.GRAY,TRIM1#,2#,4#

main81240-12100-B0iAXUH78..G202311

LT.GRAY,TRIM1#,2#,40

main81240-12100-B0iAXUH7#,TXUA7#..N202311

LT.GRAY,TRIM1#,2#,40,42

main81240-12100-B0iAXUH7#,GSU7#..G202010-202210

LT.GRAY,TRIM1#,2#,40

main81240-12100-B0iAXUH7#,GSU7#..G202010-202210

LT.GRAY,TRIM1#,2#

main81240-12100-B0iAXUH7#,GSU7#..G202010-202210

LT.GRAY,TRIM1#,2#,4#

main81240-12100-B0iAXUH7#,TXUA7#..G202210-202311

LT.GRAY,TRIM1#,2#,40

main81240-12100-B0iAXUH7#,TXUA7#..G202210-202311

LT.GRAY,TRIM1#,2#

main81240-12100-B0iAXUH7#,TXUA7#..G202210-202311

LT.GRAY,TRIM1#,2#,4#

main81240-12100-C0iTXUA75..S202311

BLACK,TRIM41,42

main81240-12100-C0iTXUA75..S202311

BLACK,TRIM2#,3#

main81240-12100-C0iGSU7#..S202010-202210

BLACK,TRIM41

main81240-12100-C0iGSU7#..S202010-202210

BLACK,TRIM2#,3#

main81240-12100-C0iTXUA7#..S202210-202311

BLACK,TRIM2#,3#

main81240-12100-C0iTXUA7#..S202210-202311

BLACK,TRIM41

main81240-12100-C0iTXUA70..S202311-202410

BLACK,TRIM2#,3#

main81240-60060-B0iAXUH7#,GSU7#..G201912-202009

LT.GRAY,TRIM1#,2#,40

sub81240-12100¥3,500

main81240-60060-B0iAXUH7#,GSU7#..G201912-202009

LT.GRAY,TRIM1#,2#

sub81240-12100¥3,500

main81240-60060-B0iAXUH7#,GSU7#..G201912-202009

LT.GRAY,TRIM1#,2#,4#

sub81240-12100¥3,500

main81240-60060-C1iGSU7#..S202009-202010

BLACK,TRIM2#,3#

sub81240-12100¥3,500

main81240-60060-C1iAXUH7#,GSU7#..G201912-202009

BLACK,TRIM41

sub81240-12100¥3,500

81240LBULB, ROOM LAMP

main90981-14011iTXUA75;AXUH7#,TXUA70..G,M,N¥180202311

12V 8W

main90981-14011iAXUH7#,GSU7#¥180201912-202210

12V 8W

main90981-14011iAXUH7#,TXUA7#¥180202210-202311

12V 8W

main90981-14011iTXUA70..S¥180202311-202410

12V 8W

81252PACKING, ROOM LAMP

main55871-0E030

81260LAMP ASSY, GLOVE BOX

main81080-33290iTXUA70..S¥920202311-202410

main81080-33290iTXUA75;AXUH7#,TXUA70..G,M,N¥920202311

main81080-48010iAXUH7#,GSU7#¥860201912-202210

main81080-48010iAXUH7#,TXUA7#¥860202210-202311

81269SWITCH, MAP LAMP

main84532-58010iTXUA70..S¥740202311-202410

main84532-58010iAXUH7#,GSU7#¥740201912-202210

main84532-58010iAXUH7#,TXUA7#¥740202210-202311

main84532-58010iTXUA75;AXUH7#,TXUA70..G,M,N¥740202311

81340LAMP ASSY, VANITY

main81340-30110iTXUA70..S¥1,670202311-202410

main81340-30110iAXUH7#,GSU7#¥1,670201912-202210

main81340-30110iAXUH7#,TXUA7#¥1,670202210-202311

main81340-30110iTXUA75;AXUH7#,TXUA70..G,M,N¥1,670202311

81340BBULB (FOR VANITY LAMP)

main90981-11062iTXUA70..S¥340202311-202410

12V 8W

main90981-11062iAXUH7#,GSU7#¥340201912-202210

12V 8W

main90981-11062iAXUH7#,TXUA7#¥340202210-202311

12V 8W

main90981-11062iTXUA75;AXUH7#,TXUA70..G,M,N¥340202311

12V 8W

81360KLAMP ASSY, SPOT, RH

81360TLAMP ASSY, SPOT

main81360-0E080-B0iAXUH7#,TXUA7#..N202311

LT.GRAY,TRIM1#,2#,40

main81360-0E080-B0iAXUH7#,GSU7#..G201912-202210

LT.GRAY,TRIM1#,2#,40

main81360-0E080-B0iAXUH7#,GSU7#..G201912-202210

LT.GRAY,TRIM1#,2#

main81360-0E080-B0iAXUH7#,GSU7#..G201912-202210

LT.GRAY,TRIM1#,2#,4#

main81360-0E080-B0iAXUH70,TXUA7#..G202311

LT.GRAY,TRIM1#,2#,40,42

main81360-0E080-B0iAXUH70,TXUA7#..G202311

LT.GRAY,TRIM1#,2#

main81360-0E080-B0iAXUH70,TXUA7#..G202311

LT.GRAY,TRIM1#,2#,4#

main81360-0E080-B0iAXUH7#,TXUA7#..G202210-202311

LT.GRAY,TRIM1#,2#,40

main81360-0E080-B0iAXUH7#,TXUA7#..G202210-202311

LT.GRAY,TRIM1#,2#

main81360-0E080-B0iAXUH7#,TXUA7#..G202210-202311

LT.GRAY,TRIM1#,2#,4#

main81360-0E080-C0iTXUA70..S202311-202410

BLACK,TRIM2#,3#

main81360-0E080-C0iTXUA75..S202311

BLACK,TRIM2#,3#

main81360-0E080-C0iTXUA75..S202311

BLACK,TRIM41,42

main81360-0E080-C0iAXUH7#,GSU7#..G201912-202210

BLACK,TRIM41

main81360-0E080-C0iTXUA7#..S202210-202311

BLACK,TRIM2#,3#

main81360-0E080-C0iTXUA7#..S202210-202311

BLACK,TRIM41

main81360-0E080-C0iGSU7#..S202009-202210

BLACK,TRIM2#,3#

81360UBULB, SPOT LAMP

main90981-11062iTXUA70..S¥340202311-202410

main90981-11062iTXUA75;AXUH7#,TXUA70..G,M,N¥340202311

main90981-11062iAXUH7#,GSU7#¥340201912-202210

main90981-11062iAXUH7#,TXUA7#¥340202210-202311

81361DLENS, SPOT LAMP

81361ELENS, SPOT LAMP, NO.2

81362BLENS, INTERIOR ILLUMINATION LAMP

main81362-0E040iTXUA70..S202311-202410

main81362-0E040iTXUA75..G,S;AXUH7#,TXUA70..G202311

HYBRID SPECIAL EDITION

main81362-0E040iTXUA75..G,S;AXUH7#,TXUA70..G202311

HYBRID SPECIAL EDITION&AUDIO-12.3INCH T-PREMIUM 6SPEAKER

main81362-0E040iAXUH7#,TXUA7#..G,S202210-202311

HYBRID SPECIAL EDITION

main81362-0E040iAXUH7#,TXUA7#..G,S202210-202311

HYBRID SPECIAL EDITION&AUDIO-12.3INCH T-PREMIUM 6SPEAKER

main81362-0E040iAXUH7#,GSU7#..G,S201912-202210

81390CLAMP ASSY, SPOT, LH

8202

8715

9046804194

main90468-04194¥180

21 parts on this diagram · 3 diagrams in section
