Toyota HIGHLANDER — HEV INVERTER

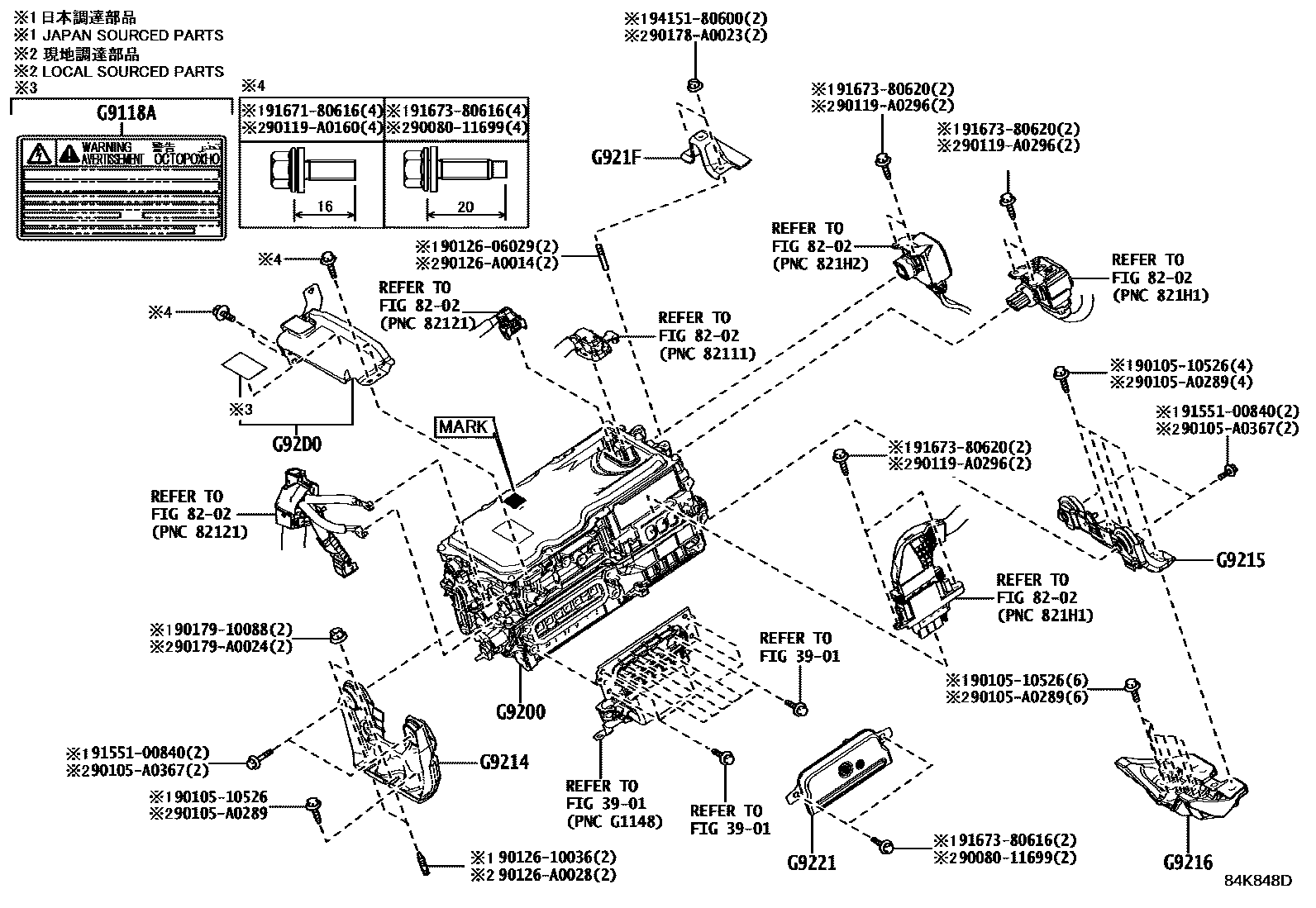

Parts diagram

3901

8202

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG91180E010i202210-202311

mainG91180E010i202002-202210

mainG91180E010i202311

G9200INVERTER ASSY, W/CONVERTER

mainG92A048210i202002-202210

mainG92A048210i202210-202303

mainG92A048211i202303-202311

mainG92A048220i202210-202303

mainG92A048220i202002-202210

mainG92A048221i202303-202311

mainG92A048450i202311-202404

mainG92A048451i202405

mainG92A048460i202311-202404

mainG92A048461i202405

G9214BRACKET, INVERTER, NO.1

mainG921448070i202311

mainG921448070i202002-202210

mainG921448070i202210-202311

G9215BRACKET, INVERTER, NO.2

mainG921542010i202002-202210

mainG921542010i202210-202311

mainG921542010i202311

G9216BRACKET, INVERTER, NO.3

mainG92160E020i202002-202210

mainG92160E020i202210-202311

mainG92160E020i202311

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010i202002-202210

mainG921F42010i202210-202311

mainG921F42010i202311

G9221COVER, INVERTER

mainG902247050i202002-202210

mainG902247050i202210-202311

mainG902247050i202311

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D00E010i202002-202210

mainG92D00E010i202210-202311

mainG92D00E010i202311

9008011699

main90080-11699¥110

9010510526

main90105-10526¥100

90105A0289

main90105-A0289

90105A0367

main90105-A0367

90119A0160

main90119-A0160

90119A0296

main90119-A0296

9012606029

main90126-06029¥60

9012610036

main90126-10036¥100

90126A0014

main90126-A0014

90126A0028

main90126-A0028

90178A0023

main90178-A0023

9017910088

main90179-10088¥100

90179A0024

main90179-A0024

9155100840

main91551-00840¥80

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

9415180600

main94151-80600¥60
