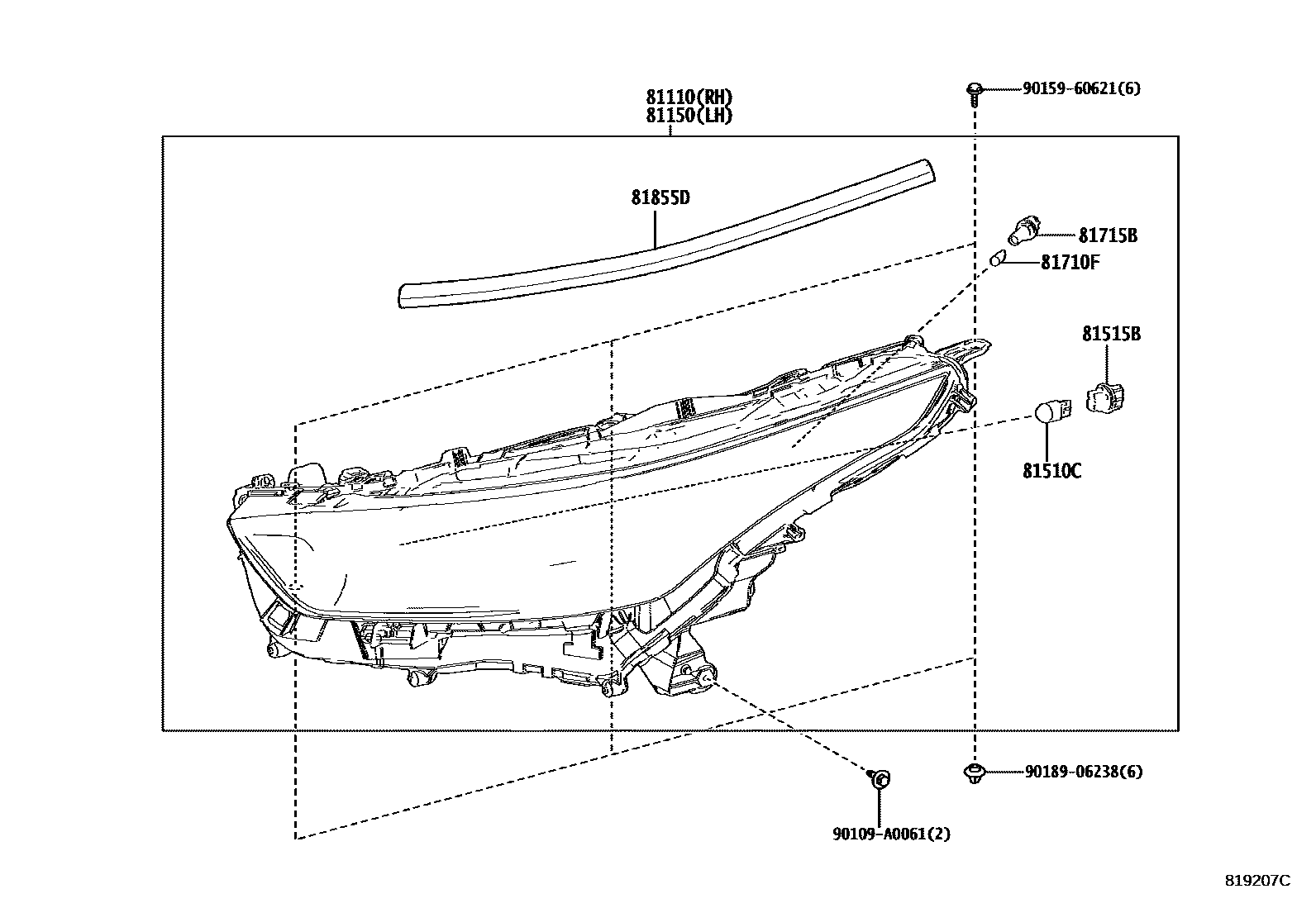

Toyota HIGHLANDER — HEADLAMP

0001 1W/O(ADAPTIVE FRONT-LIGHTING S0002 1W(ADAPTIVE FRONT-LIGHTING SYS0003 1W(ADAPTIVE FRONT-LIGHTING SYS

81110HEADLAMP ASSY, RH

main81110-0E420iAXUH7#,GSU7#..M,N202009-202110

main81110-0E460iAXUH7#,GSU7#..M,N201912-202009

main81110-0E470iTXUA7#..S202210-202311

main81110-0E470iGSU7#..S202009-202210

main81110-0E470iTXUA75..S202311-202411

main81110-0E470iTXUA70..S202311-202410

main81110-0E471iTXUA75..S202411

main81110-0E530iAXUH7#..M202210-202311

CANADA SPEC&HYBRID SPECIAL EDITION

main81110-0E530iAXUH7#,GSU7#..G201912-202210

main81110-0E530iAXUH7#,TXUA7#..G202210-202311

HYBRID SPECIAL EDITION

main81110-0E530iAXUH7#,TXUA7#..G202311

main81110-0E750iAXUH7#,TXUA7#..M,N202311

main81110-0E750iAXUH7#,GSU7#..M,N202110-202210

main81110-0E750iAXUH7#,TXUA7#..M,N202210-202311

81150HEADLAMP ASSY, LH

main81150-0E420iAXUH7#,GSU7#..M,N202009-202110

main81150-0E460iAXUH7#,GSU7#..M,N201912-202009

main81150-0E470iTXUA75..S202311-202411

main81150-0E470iGSU7#..S202009-202210

main81150-0E470iTXUA7#..S202210-202311

main81150-0E470iTXUA70..S202311-202410

main81150-0E471iTXUA75..S202411

main81150-0E530iAXUH7#,TXUA7#..G202210-202311

HYBRID SPECIAL EDITION

main81150-0E530iAXUH78..M202210-202311

CANADA SPEC&HYBRID SPECIAL EDITION

main81150-0E530iAXUH7#,GSU7#..G201912-202210

main81150-0E530iAXUH7#,TXUA7#..G202311

main81150-0E750iAXUH7#,GSU7#..M,N202110-202210

main81150-0E750iAXUH7#,TXUA7#..M,N202210-202311

main81150-0E750iAXUH7#,TXUA7#..M,N202311

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15024iAXUH7#,GSU7#¥580201912-202210

12V 28/8W

main90981-15024iAXUH7#,TXUA7#¥580202210-202311

12V 28/8W

main90981-15024iTXUA70..S¥580202311-202410

12V 28/8W

main90981-15024iTXUA75;AXUH7#,TXUA70..G,M,N¥580202311

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-06470iAXUH7#,GSU7#¥890201912-202210

main81128-06470iAXUH7#,TXUA7#¥890202210-202311

main81128-06470iTXUA70..S¥890202311-202410

main81128-06470iTXUA75..S¥890202311-202411

main81128-06470iAXUH7#,TXUA7#..G,M,N¥890202311

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050iAXUH7#,GSU7#¥110201912-202210

main99132-12050iAXUH7#,TXUA7#¥110202210-202311

main99132-12050iTXUA70..S¥110202311-202410

main99132-12050iTXUA75;AXUH7#,TXUA70..G,M,N¥110202311

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main90075-60089iAXUH7#,GSU7#¥610201912-202210

main90075-60089iAXUH7#,TXUA7#¥610202210-202311

main90075-60089iTXUA70..S¥610202311-202410

main90075-60089iTXUA75..S¥610202311-202411

main90075-60089iAXUH7#,TXUA7#..G,M,N¥610202311

81855DPROTECTOR, HEADLAMP

main81117-0E420iAXUH7#,GSU7#201912-202210

main81117-0E420iAXUH7#,TXUA7#202210-202311

main81117-0E420iTXUA70..S202311-202410

main81117-0E420iTXUA75..S202311-202411

main81117-0E420iAXUH7#,TXUA7#..G,M,N202311

90109A0061

main90109-A0061

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

10 parts on this diagram · 3 diagrams in section
