Toyota HIGHLANDER — EXHAUST GAS RECIRCULATION SYSTEM

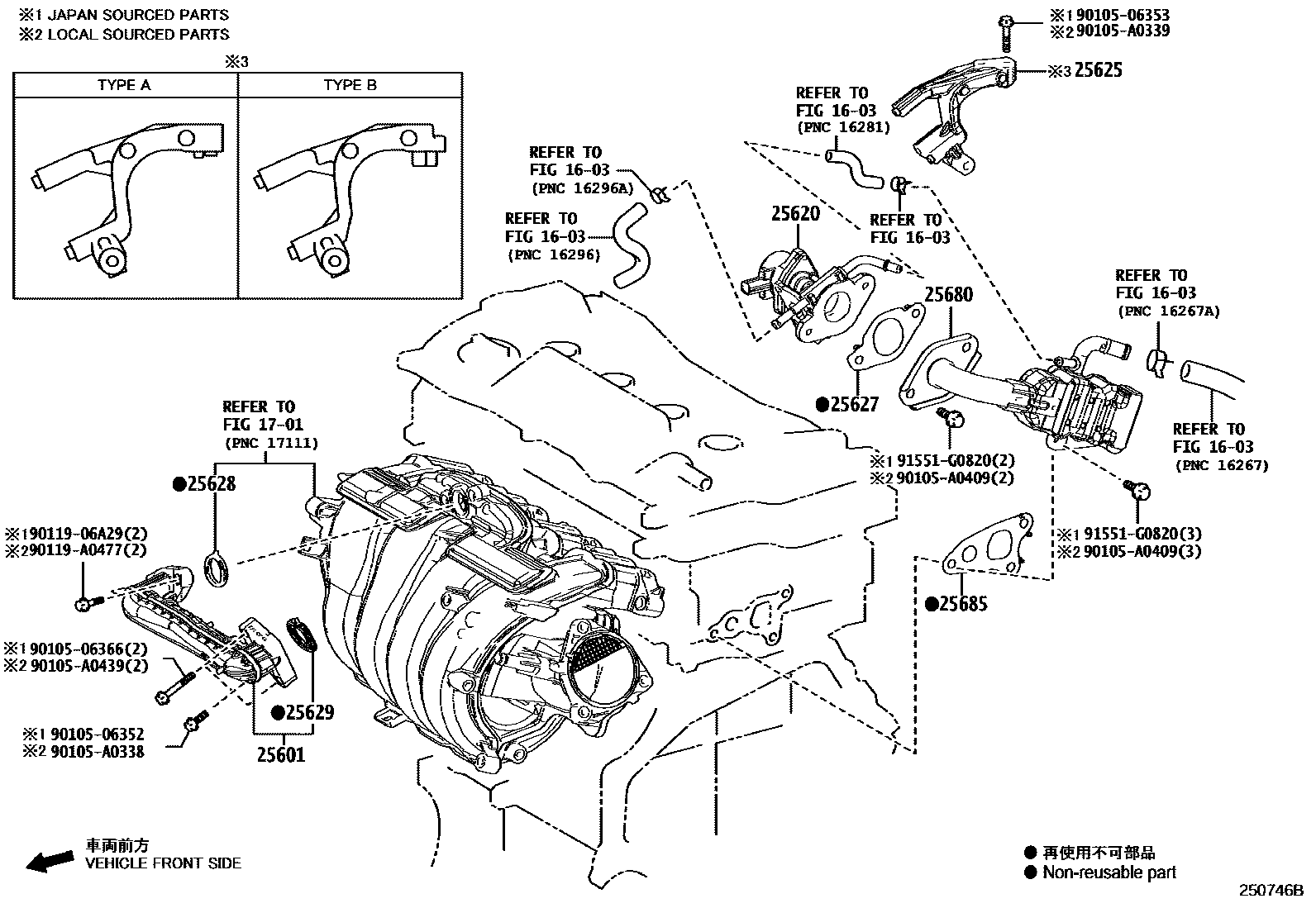

Parts diagram

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25011i¥3,450202002-202110

*636

main25601-25030i¥3,140202110-202210

*636

main25601-25030i¥3,140202210-202311

*636

main25601-25030i¥3,140202311

*636

main25601-F0010i202002-202110

*489

main25601-F0020i202210-202311

*489

main25601-F0020i202311

*489 OR *769

main25601-F0020i202110-202210

*489

25620VALVE ASSY, EGR

main25620-24050i¥18,400202110-202210

*636

main25620-24050i¥18,400202210-202311

*636

main25620-24050i¥18,400202311

*636

main25620-25040i¥18,400202002-202110

*636

main25620-F0020i202002-202110

*489

main25620-F2010i202110-202210

*489

main25620-F2010i202311

*489 OR *769

main25620-F2010i202210-202311

*489

25625BRACKET, EGR VALVE

main25625-25010i¥3,570202002-202007

*636T/P A:REF.ILLUST

main25625-25030i¥2,970202007-202110

*636T/P B:REF.ILLUST

main25625-F0010i202002-202004

*489T/P A:REF.ILLUST

main25625-F0020i202004-202110

*489T/P B:REF.ILLUST

25627GASKET, EGR VALVE

main25627-24010i¥270202110-202210

*636

main25627-24010i¥270202210-202311

*636

main25627-24010i¥270202311

*636

main25627-25010i¥270202002-202110

*636

main25627-F0010i202002-202110

*489

main25627-F2010i202311

*489 OR *769

main25627-F2010i202110-202210

*489

main25627-F2010i202210-202311

*489

25628GASKET, EGR INLET

main25628-25010i¥340202002-202210

*636,*489

main25628-25010i¥340202210-202311

*489,*636

main25628-25010i¥340202311

*636,*489 OR *769

25629GASKET, EGR VALVE ADAPTER

main25629-25010i¥340202002-202210

*636,*489

main25629-25010i¥340202210-202311

*489,*636

main25629-25010i¥340202311

*636,*489 OR *769

25680COOLER ASSY, EGR

main25680-25030i¥18,400202002-202110

*636

main25680-25060i¥16,700202110-202210

*636

main25680-25060i¥16,700202210-202311

*636

main25680-25060i¥16,700202311

*636

main25680-F0020i202002-202110

*489

main25680-F0030i202210-202311

*489

main25680-F0030i202311

*489 OR *769

main25680-F0030i202110-202210

*489

25685GASKET, EGR COOLER, NO.1

main25685-25011i¥270202002-202210

*636,*489

main25685-25011i¥270202210-202311

*489,*636

main25685-25011i¥270202311

*636,*489 OR *769

9010506352

main90105-06352¥60

9010506353

main90105-06353¥60

9010506366

main90105-06366¥80

90105A0338

main90105-A0338

90105A0339

main90105-A0339

90105A0409

main90105-A0409

90105A0439

main90105-A0439

9011906A29

main90119-06A29¥60

90119A0477

main90119-A0477

91551G0820

main91551-G0820¥80

20 parts on this diagram · 2 diagrams in section
