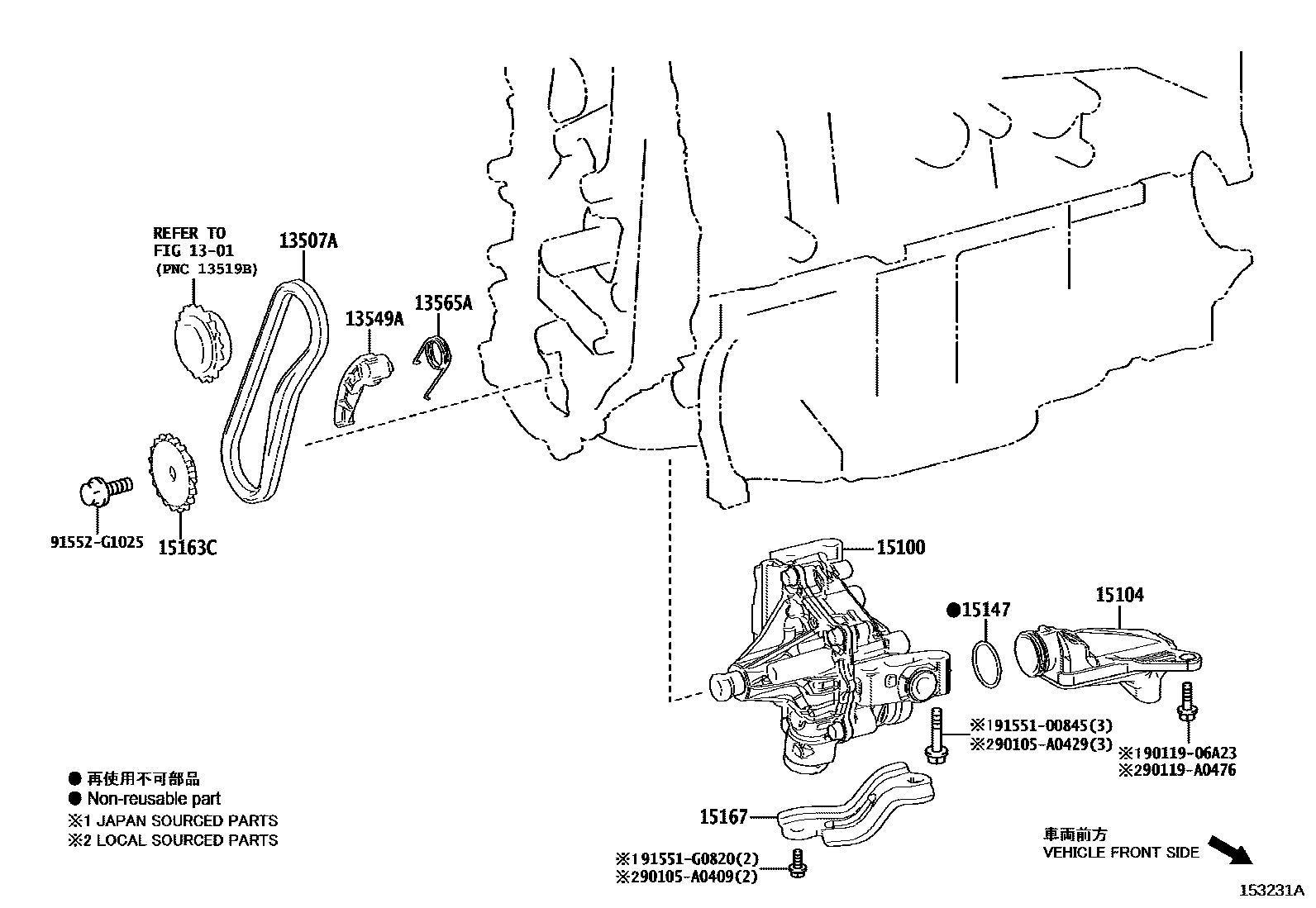

Toyota HIGHLANDER — ENGINE OIL PUMP

Parts diagram

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-25010i¥4,310202210-202311

*636

main13507-25010i¥4,310202002-202210

*636

main13507-25010i¥4,310202311

*636

main13507-25030i¥4,490202210-202311

(J)

main13507-25030i¥4,490202311-202410

(J)

main13507-25030i¥4,490202311

(J)

main13507-F0010i202002-202210

*489

main13507-F0010i202311

*489 OR *769

main13507-F0010i202210-202311

*489

main13507-F0030i202311

(L)

main13507-F0030i202311-202410

(L)

main13507-F0030i202210-202311

(L)

13549APLATE, CHAIN TENSIONER

main13549-25020i¥550202311-202410

(J)

main13549-25020i¥550202210-202311

(J)

main13549-25020i¥550202210-202311

*636

main13549-25020i¥550202311

*636

main13549-25020i¥550202311

(J)

main13549-25020i¥550202002-202210

*636

main13549-F0010i202311

(L)

main13549-F0010i202002-202210

*489

main13549-F0010i202210-202311

*489

main13549-F0010i202210-202311

(L)

main13549-F0010i202311-202410

(L)

main13549-F0010i202311

*489 OR *769

13565ASPRING, CHAIN DAMPER

main13565-25010i¥220202002-202210

*636

main13565-25010i¥220202311-202410

(J)

main13565-25010i¥220202210-202311

*636

main13565-25010i¥220202210-202311

(J)

main13565-25010i¥220202311

(J)

main13565-25010i¥220202311

*636

main13565-F0010i202311

(L)

main13565-F0010i202002-202210

*489

main13565-F0010i202210-202311

*489

main13565-F0010i202210-202311

(L)

main13565-F0010i202311-202410

(L)

main13565-F0010i202311

*489 OR *769

15100PUMP ASSY, OIL

main15100-25032i¥12,600202311

*636

main15100-25032i¥12,600202002-202210

*636

main15100-25032i¥12,600202210-202311

*636

main15100-25070i¥12,600202311-202410

(J)

main15100-25070i¥12,600202210-202311

(J)

main15100-25070i¥12,600202311

(J)

main15100-F0011i202210-202311

*489

main15100-F0011i202002-202210

*489

main15100-F0011i202311

*489 OR *769

main15100-F0040i202311-202410

(L)

main15100-F0040i202311

(L)

main15100-F0040i202210-202311

(L)

15104STRAINER SUB-ASSY, OIL

main15104-0P010i201912-202210

main15104-25030i¥1,110202311

*636

main15104-25030i¥1,110202002-202210

*636

main15104-25030i¥1,110202210-202311

*636

main15104-25040i¥1,200202311-202410

(J)

main15104-25040i¥1,200202210-202311

(J)

main15104-25040i¥1,200202311

(J)

main15104-F0010i202210-202311

*489

main15104-F0010i202002-202210

*489

main15104-F0010i202311

*489 OR *769

main15104-F0030i202311-202410

(L)

main15104-F0030i202311

(L)

main15104-F0030i202210-202311

(L)

15147GASKET, OIL STRAINER

main15147-0P030i201912-202210

main15147-25010i¥340202311

*636,*489 OR *769

main15147-25010i¥340202002-202210

*636,*489

main15147-25010i¥340202210-202311

*636,*489

main15147-25030i¥340202311-202410

main15147-25030i¥340202210-202311

main15147-25030i¥340202311

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010i¥660202002-202210

*636

main15163-25010i¥660202311

*636

main15163-25010i¥660202210-202311

*636

main15163-25030i¥660202210-202311

(J)

main15163-25030i¥660202311-202410

(J)

main15163-25030i¥660202311

(J)

main15163-F0010i202210-202311

*489

main15163-F0010i202311

*489 OR *769

main15163-F0010i202002-202210

*489

main15163-F0020i202210-202311

(L)

main15163-F0020i202311-202410

(L)

main15163-F0020i202311

(L)

15167BRACKET, OIL PUMP

main15167-25011i¥740202002-202210

*636,*489

main15167-25011i¥740202311

*636,*489 OR *769

main15167-25011i¥740202210-202311

*636,*489

90105A0409

main90105-A0409

90105A0429

main90105-A0429

9011906A23

main90119-06A23¥60

90119A0476

main90119-A0476

9155100845

main91551-00845¥100

91551G0820

main91551-G0820¥80

91552G1025

main91552-G1025¥170

16 parts on this diagram · 3 diagrams in section
