Toyota HIGHLANDER — DECK BOARD & DECK TRIM COVER

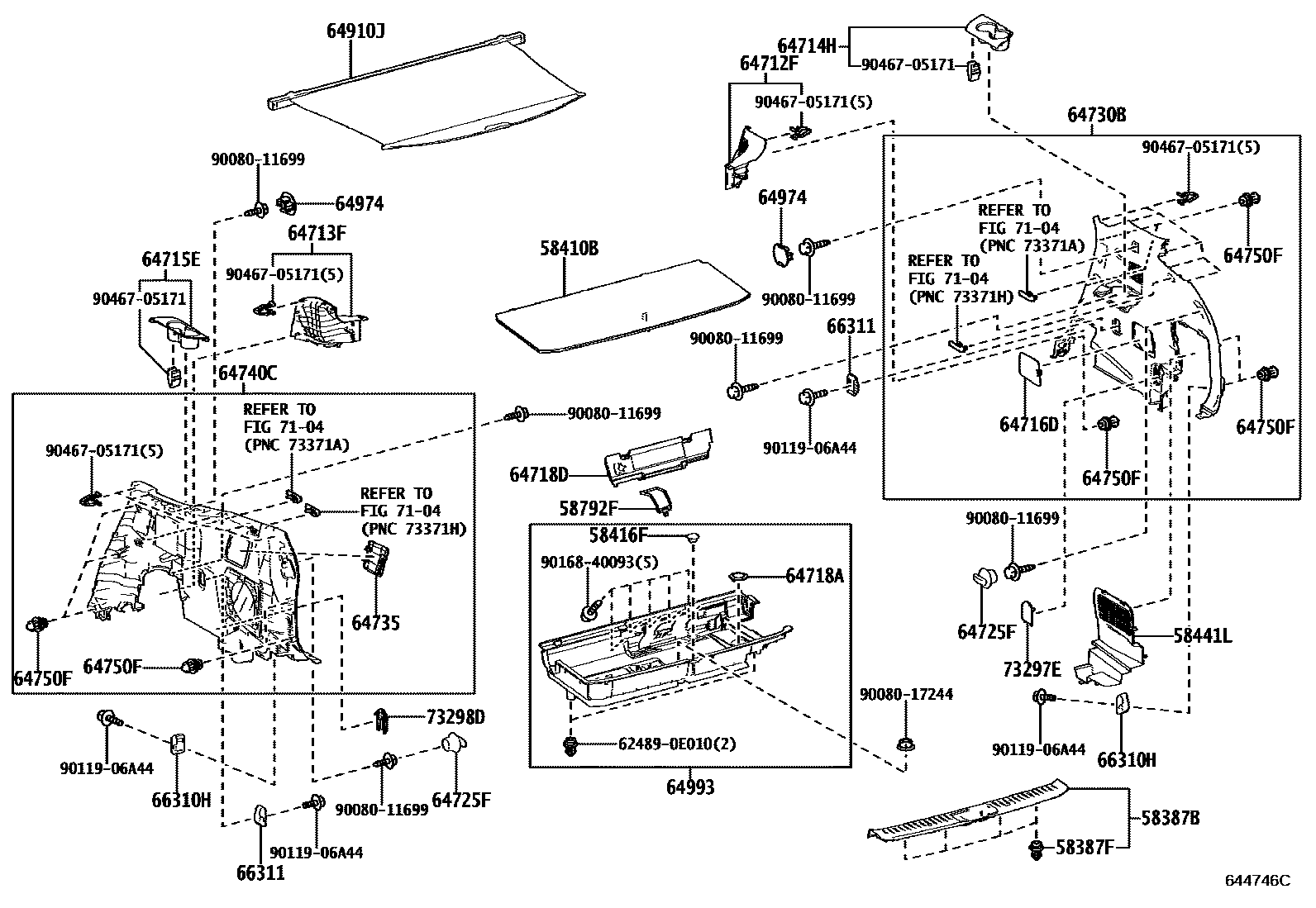

Parts diagram
58387BPLATE, REAR FLOOR FINISH
main58387-0E090-C0i201912-202311
BLACK,TRIM1#,2#,4#
main58387-0E090-C0i202009-202410
BLACK,TRIM2#,3#
main58387-0E090-C0i201912-202311
BLACK,TRIM1#,2#
58387FCLIP, REAR FLOOR FINISH PLATE
main62489-0E010i¥100201912-202410
58410BBOARD ASSY, DECK
main58410-0E080-C0i202002-202411
BLACK,TRIM1#,2#,4#
main58410-0E080-C0i202002-202411
BLACK,TRIM1#,2#
main58410-0E090-C0i202009-202410
BLACK,TRIM2#,3#
main58410-0E090-C0i201912-202410
BLACK,TRIM1#,2#
main58410-0E090-C0i201912-202410
BLACK,TRIM1#,2#,4#
main58410-0E091-C0i202411
BLACK,TRIM2#,3#
main58410-0E091-C0i202411
BLACK,TRIM1#,2#
main58410-0E091-C0i202411
BLACK,TRIM1#,2#,4#
58416FBRACKET, DECK BOARD, NO.1
main58416-33020-C1i201912-202311
BLACK,TRIM1#,2#
sub58416-33020¥400
main58416-33020-C1i201912-202311
BLACK,TRIM1#,2#,4#
sub58416-33020¥400
main58416-33020-C1i202009-202311
BLACK,TRIM2#,3#
sub58416-33020¥400
58441LCOVER, BATTERY SERVICE HOLE
main58441-0E040-C0i201912-202311
BLACK,TRIM1#,2#
main58441-0E040-C0i201912-202311
BLACK,TRIM1#,2#,4#
main58441-0E040-C0i202009-202410
BLACK,TRIM2#,3#
58792FSUPPORT, JACK CARRIER
main58792-0E040i201912-202410
64712FCOVER, DECK SIDE TRIM, FRONT RH
main64712-0E060-C0i201912-202311
BLACK,TRIM1#,2#,4#
main64712-0E060-C0i201912-202311
BLACK,TRIM1#,2#
main64712-0E060-C0i202009-202410
BLACK,TRIM2#,3#
64713FCOVER, DECK SIDE TRIM, FRONT LH
main64713-0E060-C0i201912-202311
BLACK,TRIM1#,2#,4#
main64713-0E060-C0i201912-202311
BLACK,TRIM1#,2#
main64713-0E060-C0i202009-202410
BLACK,TRIM2#,3#
64714HCOVER, DECK SIDE TRIM, NO.1
main64714-0E080-C0i201912-202311
BLACK,TRIM1#,2#
main64714-0E080-C0i201912-202311
BLACK,TRIM1#,2#,4#
main64714-0E080-C0i202009-202410
BLACK,TRIM2#,3#
64715ECOVER, DECK SIDE TRIM, NO.2
main64715-0E080-C0i201912-202311
BLACK,TRIM1#,2#,4#
main64715-0E080-C0i201912-202311
BLACK,TRIM1#,2#
main64715-0E080-C0i202009-202410
BLACK,TRIM2#,3#
64716DCOVER, DECK TRIM, REAR
main64716-0E030-C0i202002-202311
BLACK,TRIM1#,2#,4#
main64716-0E030-C0i202002-202311
BLACK,TRIM1#,2#
main64716-0E050-C0i202009-202410
BLACK,TRIM2#,3#
main64716-0E050-C0i201912-202311
BLACK,TRIM1#,2#
main64716-0E050-C0i201912-202311
BLACK,TRIM1#,2#,4#
64718ACOVER, DECK TRIM SERVICE HOLE
main64718-48010i¥490201912-202410
64718DCOVER, DECK TRIM SERVICE HOLE
main64718-0E040-C0i201912-202410
BLACK
main64718-0E040-C0i202002-202210
BLACK,TRIM1#,2#
main64718-0E040-C0i202002-202210
BLACK,TRIM1#,2#,4#
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
main64725-48020-C1i201912-202311
BLACK,TRIM1#,2#,4#
main64725-48020-C1i201912-202311
BLACK,TRIM1#,2#
main64725-48020-C1i202009-202410
BLACK,TRIM2#,3#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-0E120-C0i201912-202008
BLACK,TRIM1#,2#
sub64730-0E121
main64730-0E120-C0i201912-202008
BLACK,TRIM1#,2#,4#
sub64730-0E121
main64730-0E121-C0i202009-202311
BLACK,TRIM1#,2#,4#
main64730-0E121-C0i202009-202410
BLACK,TRIM2#,3#
main64730-0E121-C0i202009-202311
BLACK,TRIM1#,2#
main64730-0E130-C0i202002-202008
BLACK,TRIM1#,2#,4#
sub64730-0E131
main64730-0E130-C0i202002-202008
BLACK,TRIM1#,2#
sub64730-0E131
main64730-0E131-C0i202009-202311
BLACK,TRIM1#,2#
main64730-0E131-C0i202009-202311
BLACK,TRIM1#,2#,4#
64735COVER, DECK TRIM SIDE SERVICE HOLE
main64735-0E030-C0i202002-202210
BLACK,TRIM1#,2#,4#
main64735-0E030-C0i202002-202210
BLACK,TRIM1#,2#
main64735-0E040-C0i201912-202311
BLACK,TRIM1#,2#,4#
main64735-0E040-C0i201912-202311
BLACK,TRIM1#,2#
main64735-0E040-C0i202009-202410
BLACK,TRIM2#,3#
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-0E060-C0i202002-202008
BLACK,TRIM1#,2#,4#
sub64740-0E061
main64740-0E060-C0i202002-202008
BLACK,TRIM1#,2#
sub64740-0E061
main64740-0E061-C0i202009-202210
BLACK,TRIM1#,2#
main64740-0E061-C0i202009-202210
BLACK,TRIM1#,2#,4#
main64740-0E130-C0i201912-202008
BLACK,TRIM1#,2#,4#
sub64740-0E131
main64740-0E130-C0i201912-202008
BLACK,TRIM1#,2#
sub64740-0E131
main64740-0E131-C0i202009-202311
BLACK,TRIM1#,2#,4#
main64740-0E131-C0i202009-202410
BLACK,TRIM2#,3#
main64740-0E131-C0i202009-202311
BLACK,TRIM1#,2#
main64740-0E140-C0i201912-202008
BLACK,TRIM1#,2#,4#
sub64740-0E141
main64740-0E141-C0i202009-202311
BLACK,TRIM1#,2#,4#
main64740-0E141-C0i202009-202210
AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#,3#
main64740-0E141-C0i202210-202311
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER,BLACK,TRIM2#,3#
main64740-0E150-C0i202002-202008
BLACK,TRIM1#,2#,4#
sub64740-0E151
main64740-0E151-C0i202009-202210
BLACK,TRIM1#,2#,4#
main64740-0E152-C0i202210-202311
BLACK,TRIM1#,2#,4#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main62489-0E010i¥100201912-202410
64910JCOVER ASSY, TONNEAU
main64910-0E090-C0i201912-202311
CANADA SPEC,BLACK,TRIM1#,2#,4#
main64910-0E090-C0i201912-202311
BLACK,TRIM1#,2#,4#
64974COVER, DECK TRIM POCKET
main64974-0E010-C1i201912-202311
BLACK,TRIM1#,2#,4#
main64974-0E010-C1i201912-202311
BLACK,TRIM1#,2#
main64974-0E010-C1i202009-202410
BLACK,TRIM2#,3#
64993BOX, DECK FLOOR, REAR
main64993-0E170-C0i202002-202210
BLACK,TRIM1#,2#
main64993-0E170-C0i202002-202210
BLACK,TRIM1#,2#,4#
main64993-0E170-C0i201912-202411
BLACK
main64993-0E171-C0i202411
BLACK,TRIM2#,3#
main64993-0E171-C0i202411
BLACK,TRIM1#,2#
main64993-0E171-C0i202411
BLACK,TRIM1#,2#,4#
66310HHOOK ASSY, ROPE
main66310-30011-C1i202311
BLACK,TRIM1#,2#,4#
sub66310-30011¥1,750
main66310-30011-C1i202311-202410
BLACK,TRIM2#,3#
sub66310-30011¥1,750
main66310-30011-C1i202311
BLACK,TRIM1#,2#
sub66310-30011¥1,750
main66311-0E010-C2i201912-202311
BLACK,TRIM1#,2#
main66311-0E010-C2i201912-202311
BLACK,TRIM1#,2#,4#
main66311-0E010-C2i202009-202311
BLACK,TRIM2#,3#
66311HOOK, ROPE
main66311-0E010-C2i202009-202410
BLACK,TRIM2#,3#
main66311-0E010-C2i201912-202311
BLACK,TRIM1#,2#
main66311-0E010-C2i201912-202311
BLACK,TRIM1#,2#,4#
7104
73297ECOVER, DECK TRIM SIDE BELT HOLE, RH
main73297-0E030-C0i201912-202311
BLACK,TRIM1#,2#
main73297-0E030-C0i201912-202311
BLACK,TRIM1#,2#,4#
main73297-0E030-C0i202009-202410
BLACK,TRIM2#,3#
73298DCOVER,DECK TRIM SIDE BELT HOLE, LH
main73297-0E030-C0i201912-202311
BLACK,TRIM1#,2#
main73297-0E030-C0i201912-202311
BLACK,TRIM1#,2#,4#
main73297-0E030-C0i202009-202410
BLACK,TRIM2#,3#
624890E010CLIP, MAP LAMP RETAINER
main62489-0E010¥100
9008011699
main90080-11699¥110
9008017244
main90080-17244¥80
9011906A44
main90119-06A44¥60
9016840093
main90168-40093¥70
9046705171
main90467-05171¥60

32 parts on this diagram · 4 diagrams in section
