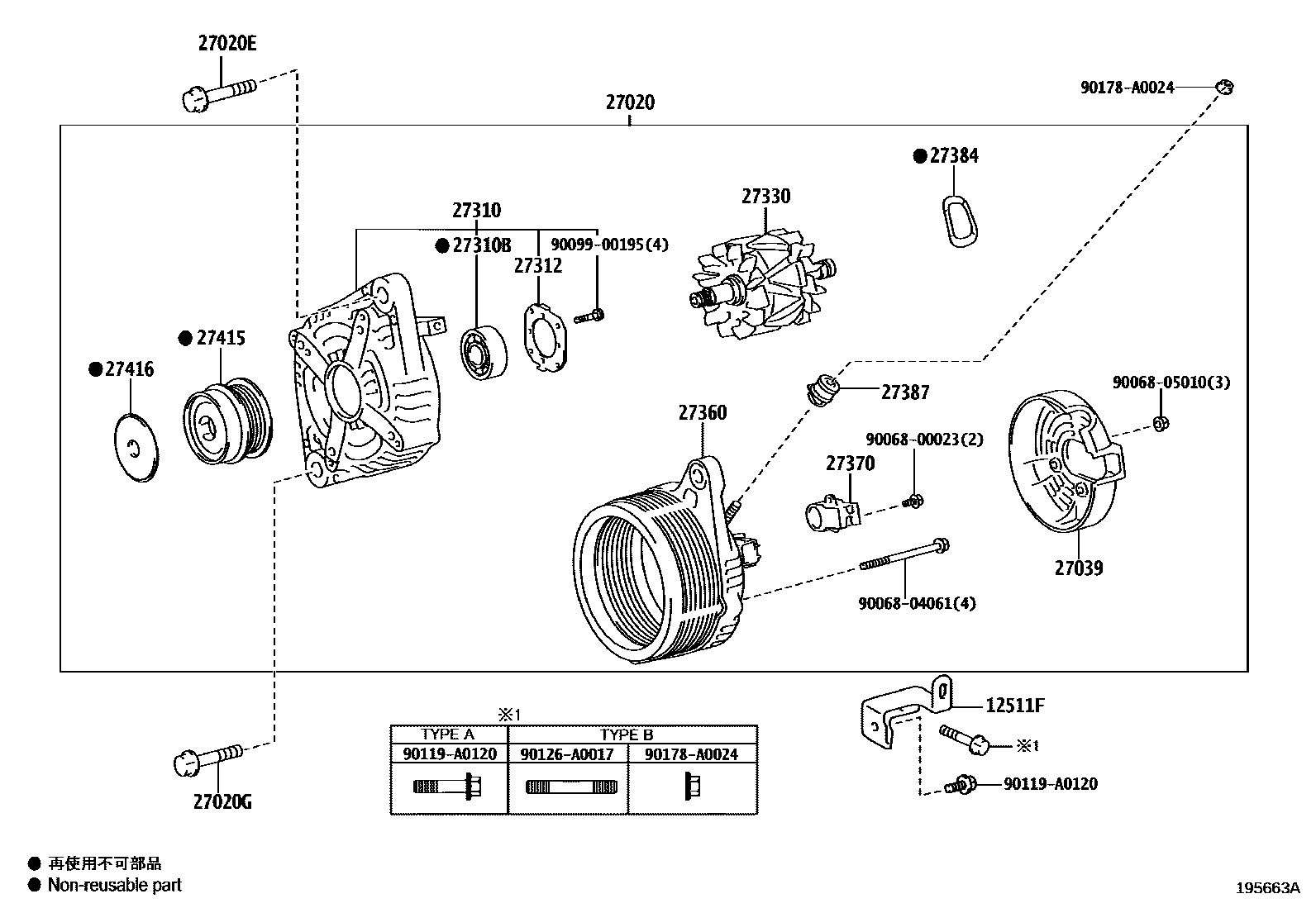

Toyota HIGHLANDER — ALTERNATOR

0001 112V 180A 0002 112V 180A

12511FBRACKET, ALTERNATOR, NO.1

main12511-0P070i2GRFKS..GSU7#201912-202210

27020ALTERNATOR ASSY

main27060-0P420i2GRFKS..GSU7#¥125,000201912-202210

12V 180A

sub27060-31410¥125,000

main27060-0W020iT24AFTS..TXUA7#¥113,000202210-202311

12V 180A

main27060-0W020iT24AFTS..TXUA7#¥113,000202311-202410

12V 180A

main27060-F0180iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N202410

12V 180A

27020EBOLT(FOR ALTERNATOR)

main90105-A0107i2GRFKS..GSU7#201912-202210

27020GBOLT, NO.2(FOR ALTERNATOR)

main90105-A0324i2GRFKS..GSU7#201912-202210

27039COVER, ALTERNATOR REAR END

main27039-0P470i2GRFKS..GSU7#201912-202210

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P470i2GRFKS..GSU7#201912-202210

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10241i2GRFKS..GSU7#¥1,470201912-202210

27312PLATE, RETAINER

main27312-42010i2GRFKS..GSU7#201912-202210

27330ROTOR ASSY, ALTERNATOR

main27330-0P470i2GRFKS..GSU7#201912-202210

27360COIL ASSY, ALTERNATOR

main27360-0P470i2GRFKS..GSU7#201912-202210

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0V160i2GRFKS..GSU7#201912-202210

27384WASHER

main27384-38130i2GRFKS..GSU7#201912-202210

27387INSULATOR, TERMINAL

main27387-38130i2GRFKS..GSU7#201912-202210

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P030i2GRFKS..GSU7#¥6,200201912-202210

main27415-0W320iT24AFTS..TXUA7#¥5,500202210-202311

main27415-0W320iT24AFTS..TXUA70..S¥5,500202311-202410

main27415-0W320iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N¥5,500202311

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2GRFKS..GSU7#¥340201912-202210

main27416-0W050iT24AFTS..TXUA7#¥340202210-202311

main27416-0W050iT24AFTS..TXUA70..S¥340202311-202410

main27416-0W050iT24AFTS..TXUA75;T24AFTS..TXUA70..G,M,N¥340202311

9006800023

main90068-00023

9006804061

main90068-04061

9006805010

main90068-05010

9009900195

main90099-00195

90119A0120

main90119-A0120

90126A0017

main90126-A0017

90178A0024

main90178-A0024

22 parts on this diagram · 2 diagrams in section
