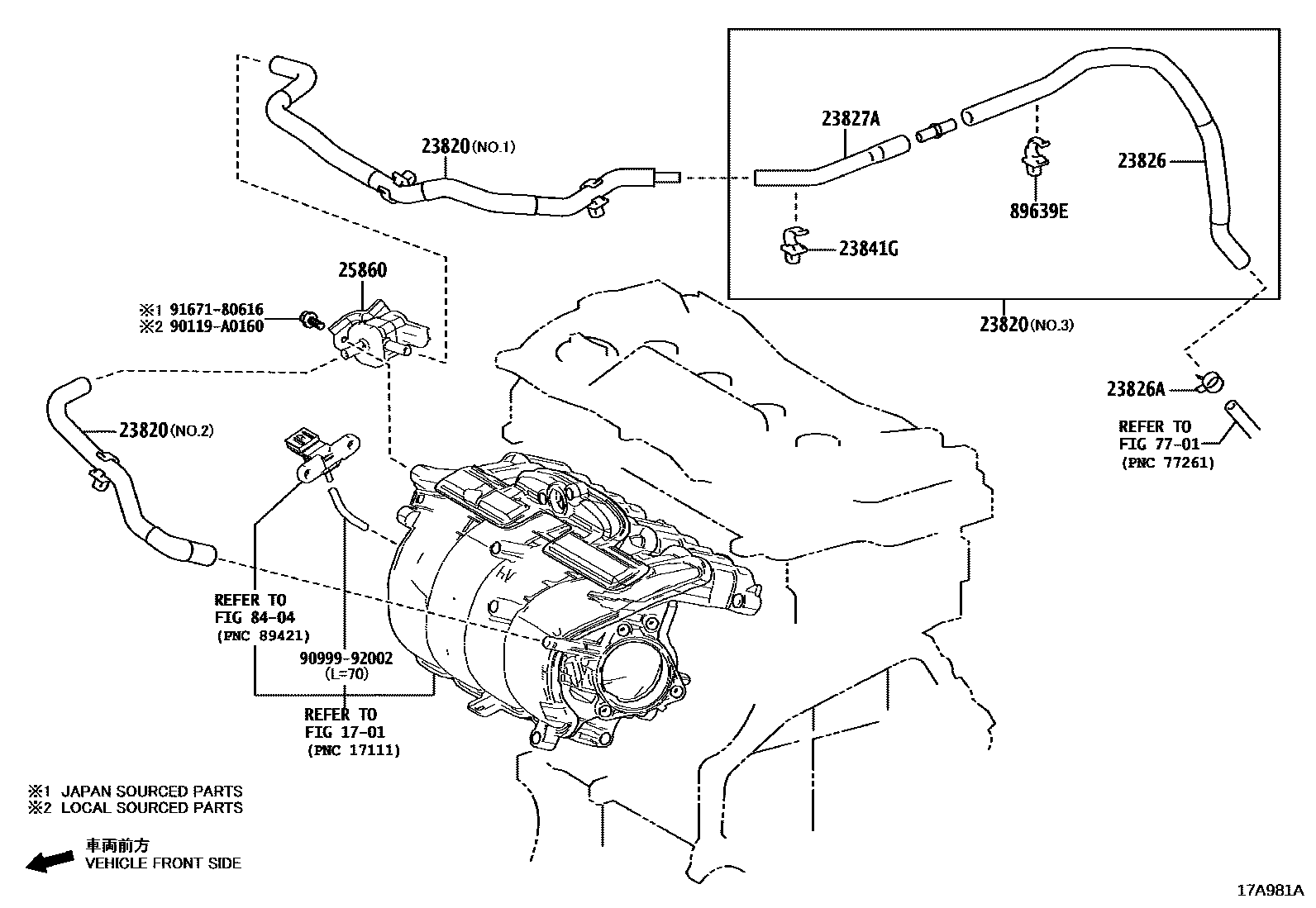

Toyota HIGHLANDER/KLUGER — VACUUM PIPING
1701
23820HOSE ASSY, FUEL VAPOR FEED
(J),NO.1:REFER ILL.
GEORGIA SPEC,(J),NO.1:REFER ILL.
AZERBAIJAN SPEC,(J),NO.1:REFER ILL.
UKRAINE SPEC,(J),NO.1:REFER ILL.
(J),NO.2:REFER ILL.
GEORGIA SPEC,(J),NO.2:REFER ILL.
AZERBAIJAN SPEC,(J),NO.2:REFER ILL.
UKRAINE SPEC,(J),NO.2:REFER ILL.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
AZERBAIJAN SPEC,(L),NO.1:REFER ILL.
UKRAINE SPEC,(L),NO.1:REFER ILL.
(L),NO.1:REFER ILL.
GEORGIA SPEC,(L),NO.1:REFER ILL.
AZERBAIJAN SPEC,(L),NO.2:REFER ILL.
(L),NO.2:REFER ILL.
GEORGIA SPEC,(L),NO.2:REFER ILL.
UKRAINE SPEC,(L),NO.2:REFER ILL.
GEORGIA SPEC,NO.3:REFER ILLUST.
NO.3:REFER ILLUST.
AZERBAIJAN SPEC,NO.3:REFER ILLUST.
UKRAINE SPEC,NO.3:REFER ILLUST.
NO.3:REFER ILLUST.
23826HOSE, FUEL VAPOR FEED, NO.1
GEORGIA SPEC
AZERBAIJAN SPEC
UKRAINE SPEC
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
UKRAINE SPEC
AZERBAIJAN SPEC
GEORGIA SPEC
23841GCLAMP, FUEL HOSE
GEORGIA SPEC
AZERBAIJAN SPEC
UKRAINE SPEC
25860VALVE ASSY, VACUUM SWITCHING, NO.1
NO.1
(J)
GEORGIA SPEC,(J)
UKRAINE SPEC,(J)
AZERBAIJAN SPEC,(J)
NO.2
GEORGIA SPEC,(L)
(L)
UKRAINE SPEC,(L)
AZERBAIJAN SPEC,(L)
7701
8404
90119A0160
main90119-A0160
9099992002
9167180616
13 parts on this diagram · 5 diagrams in section
