Toyota HIGHLANDER/KLUGER — STEERING COLUMN & SHAFT

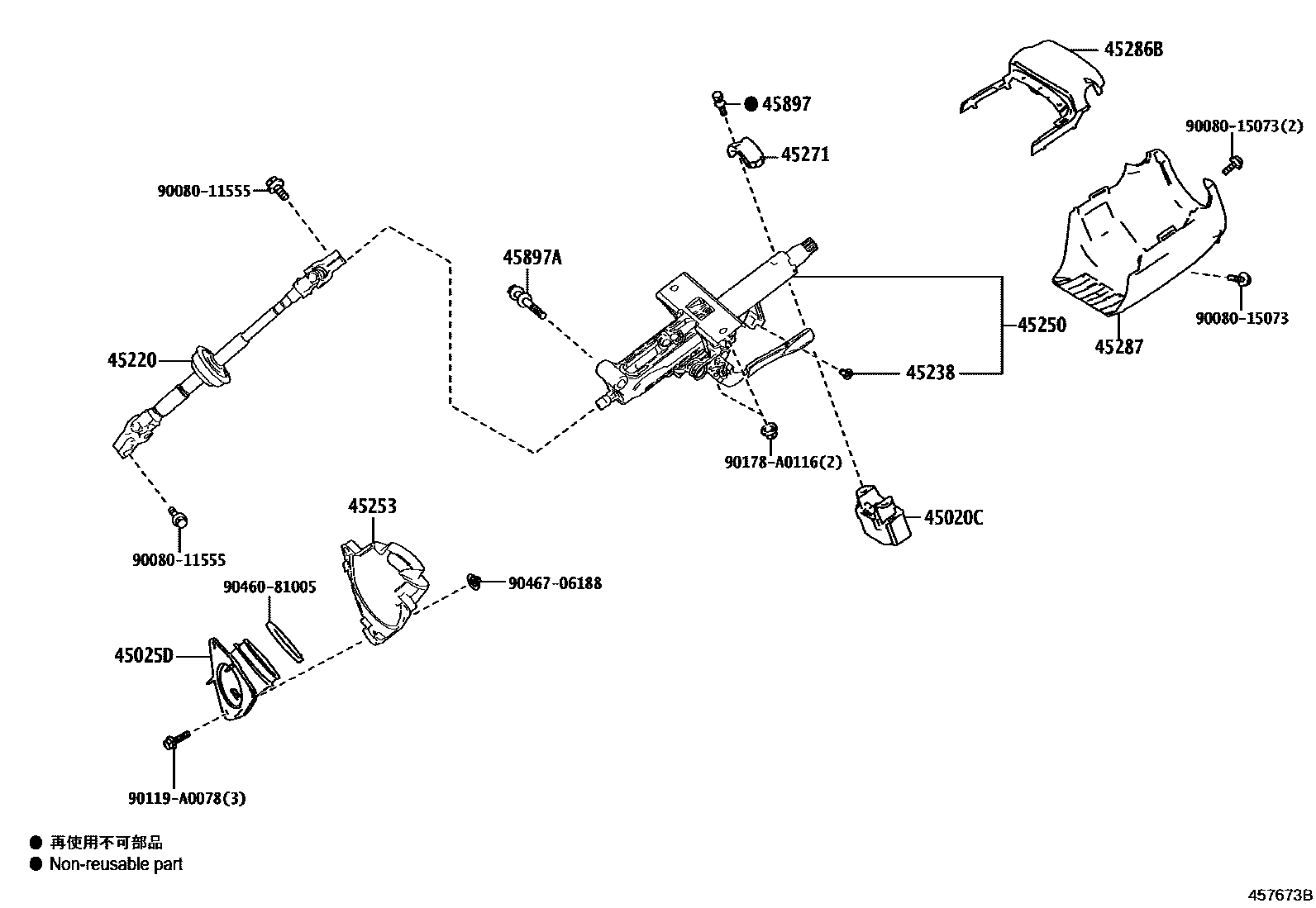

Parts diagram
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
main45020-06230i202210-202311
AZERBAIJAN SPEC
main45020-06230i202210-202311
UKRAINE SPEC
main45020-06230i202210-202311
KAZAKHSTAN SPEC
main45020-06230i202210-202311
GEORGIA SPEC
main45020-06230i202002-202210
main45020-08020i202311
AZERBAIJAN SPEC
main45020-08020i202311
GEORGIA SPEC
main45020-08020i202311
UKRAINE SPEC
main45020-08020i202311
KAZAKHSTAN SPEC
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-0R040i202002-202410
45220SHAFT ASSY, STEERING INTERMEDIATE
main45220-0E050i202002-202410
main45220-0E060i202011-202312
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
main45238-52010i¥70202002-202410
45250COLUMN ASSY, STEERING
main45250-0E181i202002-202410
45253COVER, STEERING COLUMN HOLE
main45253-0E090i202002-202410
45271CLAMP, STEERING COLUMN, UPPER
main45271-08010i202210-202311
AZERBAIJAN SPEC
main45271-08010i202002-202210
main45271-08010i202210-202311
GEORGIA SPEC
main45271-08010i202210-202311
UKRAINE SPEC
main45271-08010i202210-202311
KAZAKHSTAN SPEC
45286BCOVER, STEERING COLUMN, UPR
main45286-06330-C0i202002-202311
BLACK,TRIM1#,2#
main45286-06330-C0i202002-202410
BLACK,TRIM1#,2#,4#
45287COVER, STEERING COLUMN, LWR
main45287-06420-C0i202002-202311
BLACK,TRIM1#,2#
main45287-06420-C0i202002-202410
BLACK,TRIM1#,2#,4#
45897BOLT, STEERING LOCK SET
main45897-08010i¥200202002-202210
main45897-08010i¥200202210-202311
GEORGIA SPEC
main45897-08010i¥200202210-202311
AZERBAIJAN SPEC
main45897-08010i¥200202210-202311
UKRAINE SPEC
main45897-08010i¥200202210-202311
KAZAKHSTAN SPEC
45897ABOLT, TILT STEERING PAWL SET
main90119-A0362i202002-202410
9008011555
main90080-11555
9008015073
main90080-15073
90119A0078
main90119-A0078¥80
90178A0116
main90178-A0116
9046081005
main90460-81005¥310
9046706188
main90467-06188¥160

17 parts on this diagram · 2 diagrams in section
