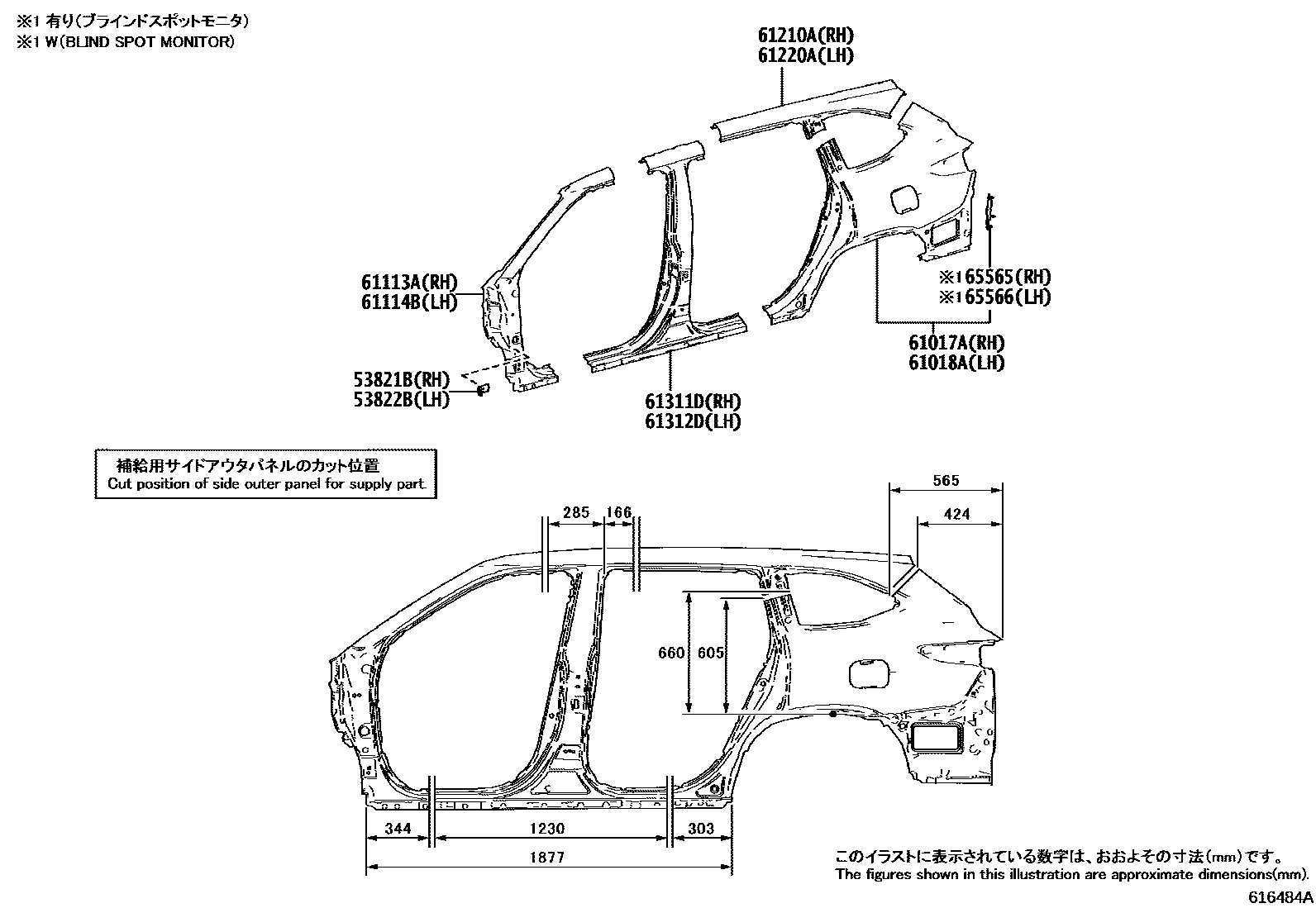

Toyota HIGHLANDER/KLUGER — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0E050iAXUH7#..(LE,XLE)..GCC202002-202410

main53821-0E050iAXUH7#..(LE,XLE)..GCC202210-202311

HYBRID SPECIAL EDITION

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0E050iAXUH7#,GSU7#202002-202410

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-0E010iAXUH7#..(LE,XLE)..GCC202002-202311

main61017-0E020iAXUH78..XLE..GCC¥43,600202210-202311

HYBRID SPECIAL EDITION

main61017-0E020iAXUH78,TXUA7#..RHD¥43,600202002-202410

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-0E010iAXUH7#..(LE,XLE)..GCC202002-202311

main61018-0E020iTXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD202210-202311

HYBRID SPECIAL EDITION

main61018-0E020iAXUH78,TXUA7#..RHD202002-202410

61113APANEL, SIDE, OUTER NO.2 RH

main61113-0E010iAXUH7#,GSU7#202002-202410

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-0E010iAXUH7#,GSU7#202002-202410

61210ARAIL ASSY, ROOF SIDE, RH

main61210-0E010iAXUH7#,GSU7#202002-202410

61220ARAIL ASSY, ROOF SIDE, LH

main61220-0E010iAXUH7#,GSU7#202002-202410

61311DPANEL, REAR BODY, FRONT OUTSIDE RH

main61311-0E080iAXUH7#,GSU7#202002-202410

61312DPANEL, REAR BODY, FRONT OUTSIDE LH

main61312-0E080iAXUH7#,GSU7#202002-202410

65565PATCH, SIDE PANEL REAR END, RH

main65565-06110iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202410

main65565-06110iTXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD202210-202311

HYBRID SPECIAL EDITION

65566PATCH, SIDE PANEL REAR END, LH

main65565-06110iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202410

main65565-06110iTXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD202210-202311

HYBRID SPECIAL EDITION

12 parts on this diagram · 3 diagrams in section
