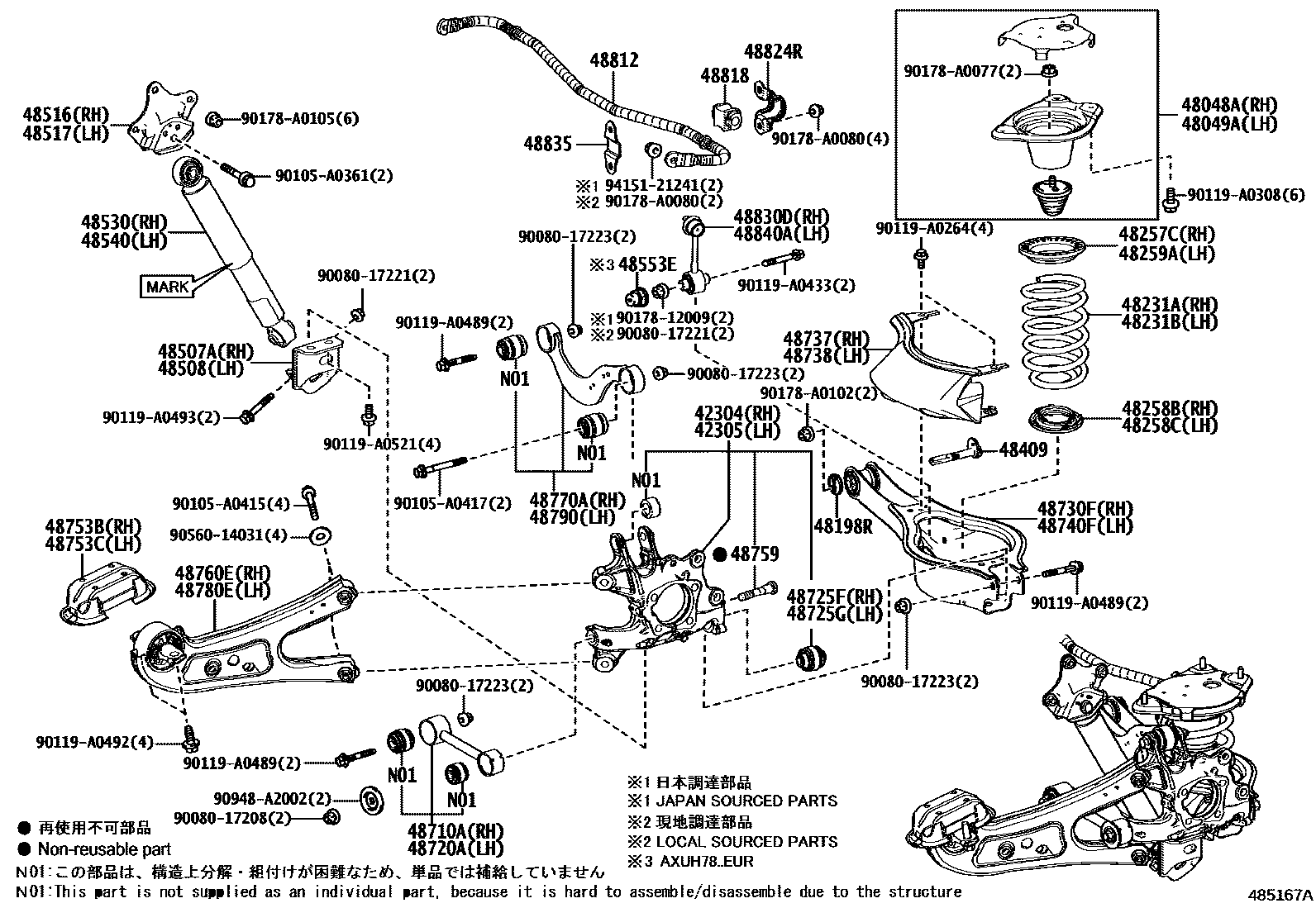

Toyota HIGHLANDER/KLUGER — REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-0E090iAXUH78,TXUA7#..RHD202002-202410

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-0E090iAXUH7#,GSU7#202002-202410

48048ASEAT SUB-ASSY, SPRING, RH

main48048-0E030iAXUH7#,GSU7#202002-202410

48049ASEAT SUB-ASSY, SPRING, LH

main48049-0E030iAXUH78,TXUA7#..RHD202002-202410

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-0E020iAXUH7#,GSU7#202002-202410

48231ASPRING, COIL, REAR RH

main48231-0E380iTXUA70..LE202012-202406

main48231-0E381iTXUA70..LE202406

main48231-0E390iAXUH70..LE;TXUA75..LIMD..RUS202002-202406

main48231-0E391iAXUH70..LE;TXUA75..LIMD202406

main48231-0E400iGSU75..LE;GSU70..LIMD202003-202406

main48231-0E401iTXUA75..LE;TXUA70..LIMD202406

main48231-0E410iAXUH70..LIMD,XLE202002-202406

main48231-0E411iAXUH70..LIMD202406-202410

main48231-0E420iAXUH78..LE..GCC202002-202406

main48231-0E421iAXUH78..LE202406

main48231-0E430iAXUH78..(LIMD,XLE)..(ARL,GCC)202002-202406

main48231-0E431iAXUH78..(LIMD,XLE)..(ARL,GCC)202406

main48231-0E730iAXUH78..EUR202011-202406

main48231-0E731iAXUH78..EUR202406

48231BSPRING, COIL, REAR LH

main48231-0E380iTXUA70..LE202012-202406

main48231-0E381iTXUA70..LE202406

main48231-0E390iAXUH70..LE;GSU75..LIMD202002-202406

main48231-0E391iAXUH70..LE;TXUA75..LIMD202406

main48231-0E400iTXUA75..LE..RUS202003-202406

main48231-0E401iTXUA75..LE;TXUA70..LIMD202406

main48231-0E410iAXUH70..LIMD,XLE202002-202406

main48231-0E411iAXUH70..LIMD202406-202410

main48231-0E420iAXUH78..LE..GCC202002-202406

main48231-0E421iAXUH78..LE202406

main48231-0E430iAXUH78..(LIMD,XLE)..(ARL,GCC)202002-202406

main48231-0E431iAXUH78..(LIMD,XLE)..(ARL,GCC)202406

main48231-0E730iAXUH78..RHD..EUR202011-202406

main48231-0E731iAXUH78..EUR202406

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0E020iAXUH78,TXUA7#..RHD202002-202410

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0E070iAXUH7#,GSU7#202002-202410

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0E070iAXUH7#,GSU7#202002-202410

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0E020iAXUH7#,TXUA75..LHD202002-202410

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-0E040iAXUH7#,GSU7#202002-202410

48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH

main48507-0E030iAXUH7#,GSU7#202002-202410

48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH

main48508-0E030iAXUH70..LIMD202002-202410

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-0E010iAXUH70..LIMD202002-202410

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48517-0E010iAXUH7#,TXUA75..LHD202002-202312

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-0E330iGSU70202012-202210

MARK 48531-0E330

main48531-0E340iTXUA75..RUS202003-202311

MARK 48531-0E340

main48531-0E350iAXUH70202002-202410

MARK 48531-0E350

main48531-0E360iAXUH78..GCC202002-202312

MARK 48531-0E360

main48531-0E410iAXUH78..RHD..EUR202011-202312

MARK 48531-0E410

main48531-0E520iTXUA70202210-202312

MARK 48531-0E520

main48531-0E530iTXUA75..ARL202210-202312

MARK 48531-0E530

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-0E330iGSU70202012-202210

MARK 48531-0E330

main48531-0E340iTXUA75..RUS202003-202311

MARK 48531-0E340

main48531-0E350iAXUH70..LE,XLE202002-202410

MARK 48531-0E350

main48531-0E360iAXUH78..GCC202002-202312

MARK 48531-0E360

main48531-0E410iAXUH78..LHD..EUR202011-202312

MARK 48531-0E410

main48531-0E520iTXUA70202210-202312

MARK 48531-0E520

main48531-0E530iTXUA75..ARL202210-202312

MARK 48531-0E530

48553ECAP

main48553-52030iAXUH78..EUR¥60202011-202312

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-0E090iAXUH7#,TXUA75..LHD202002-202410

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-0E090iAXUH7#,GSU7#202002-202410

48725FBUSH, REAR AXLE CARRIER, RH

main48725-0E380iAXUH70..LIMD202311-202410

48725GBUSH, REAR AXLE CARRIER, LH

main48725-0E380iAXUH70..LIMD202311-202410

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-0E100iAXUH7#,GSU7#202002-202410

48737COVER, REAR SUSPENSION ARM, RH

main48737-0E030iAXUH7#,GSU7#202002-202410

48738COVER, REAR SUSPENSION ARM, LH

main48738-0E030iAXUH7#,GSU7#202002-202410

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-0E100iAXUH7#,GSU7#202002-202410

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-0E010iAXUH70..LIMD202002-202410

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-0E010iAXUH7#,GSU7#202002-202410

48759PIN, LOWER CONTROL ARM

main48759-0E030iAXUH7#,GSU7#202002-202410

48760EARM ASSY, TRAILING, REAR RH

main48760-0E080iAXUH7#,GSU7#¥7,400202002-202410

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-48020iAXUH7#,GSU7#202002-202410

48780EARM ASSY, TRAILING, REAR LH

main48780-0E090iAXUH7#,GSU7#202002-202410

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-48020iAXUH7#,GSU7#202002-202410

48812BAR, STABILIZER, REAR

main48812-0E110iTXUA7#..ARL202003-202312

main48812-0E120iAXUH7#202002-202410

48818BUSH, STABILIZER, REAR

main48818-0E100iTXUA75..RUS202003-202312

main48818-0E110iAXUH78;AXUH70..LE,XLE202002-202410

48824RBRACKET, STABILIZER(FOR REAR)

main48832-0E210iAXUH7#,GSU7#202002-202410

48830DLINK ASSY, REAR STABILIZER, RH

main48830-0E050iAXUH7#,GSU7#202002-202410

48835BRACKET, REAR STABILIZER, LOWER

main48835-0E040iAXUH7#,GSU7#202002-202410

48840ALINK ASSY, REAR STABILIZER, LH

main48830-0E050iAXUH7#,GSU7#202002-202410

9008017208

main90080-17208

9008017221

main90080-17221

9008017223

main90080-17223

90105A0361

main90105-A0361

90105A0415

main90105-A0415

90105A0417

main90105-A0417

90119A0264

main90119-A0264

90119A0308

main90119-A0308

90119A0433

main90119-A0433

90119A0489

main90119-A0489

90119A0492

main90119-A0492

90119A0493

main90119-A0493

90119A0521

main90119-A0521

9017812009

main90178-12009¥120

90178A0077

main90178-A0077

90178A0080

main90178-A0080

90178A0102

main90178-A0102

90178A0105

main90178-A0105

9056014031

main90560-14031¥240

90948A2002

main90948-A2002

9415121241

main94151-21241¥100

61 parts on this diagram · 1 diagram in section
