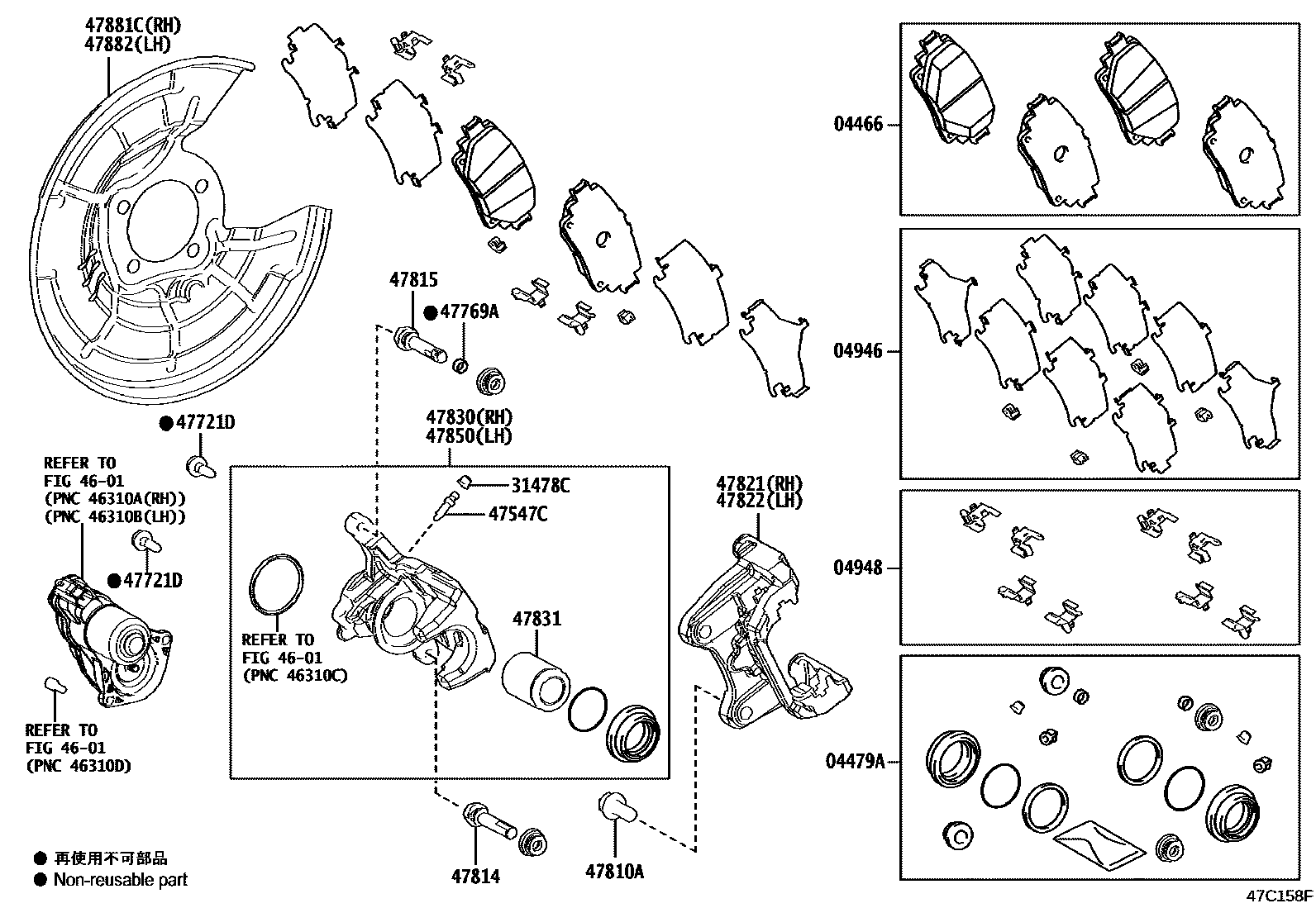

Toyota HIGHLANDER/KLUGER — REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02430iAXUH78,TXUA7#..RHD¥6,600202210-202312

MARK NBK D6360-FF

main04466-02430iAXUH78,TXUA7#;AXUH70..LE,XLE¥6,600202311

MARK NBK D6360-FF

main04466-02430iAXUH70..LIMD¥6,600202311-202410

MARK NBK D6360-FF

main04466-02430iAXUH7#,TXUA75..LHD¥6,600202210-202311

MARK NBK D6360-FF

main04466-02430iAXUH7#,GSU7#¥6,600202002-202210

MARK NBK D6360-FF

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02470iAXUH7#,GSU7#202002-202210

main04479-02470iAXUH7#,TXUA75..LHD202210-202311

main04479-02470iAXUH78,TXUA7#..RHD202210-202312

main04479-02520iAXUH70..LIMD202311-202410

main04479-02520iAXUH78,TXUA7#;AXUH70..LE,XLE202311

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02160iAXUH7#,GSU7#202002-202210

main04946-02160iAXUH7#,TXUA75..LHD202210-202311

main04946-02160iAXUH78,TXUA7#..RHD202210-202312

main04946-02160iAXUH70..LIMD202311-202410

main04946-02160iAXUH78,TXUA7#;AXUH70..LE,XLE202311

04948FITTING KIT, DISC BRAKE, REAR

main04948-02180iAXUH7#,GSU7#202002-202210

main04948-02180iAXUH7#,TXUA75..LHD202210-202311

main04948-02180iAXUH78,TXUA7#..RHD202210-202312

main04948-02180iAXUH70..LIMD202311-202410

main04948-02180iAXUH78,TXUA7#;AXUH70..LE,XLE202311

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAXUH78,TXUA7#..RHD¥160202210-202312

main31478-30010iAXUH7#,GSU7#¥160202002-202210

main31478-30010iAXUH7#,TXUA75..LHD¥160202210-202311

main31478-30010iAXUH70..LIMD¥160202311-202410

main31478-30010iAXUH78,TXUA7#;AXUH70..LE,XLE¥160202311

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAXUH7#,GSU7#¥200202002-202210

main47547-20010iAXUH7#,TXUA75..LHD¥200202210-202311

main47547-20010iAXUH78,TXUA7#..RHD¥200202210-202312

main47547-20010iAXUH70..LIMD¥200202311-202410

main47547-20010iAXUH78,TXUA7#;AXUH70..LE,XLE¥200202311

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA614iAXUH7#,GSU7#¥270202002-202210

main90016-AA614iAXUH7#,TXUA75..LHD¥270202210-202311

main90016-AA614iAXUH78,TXUA7#..RHD¥270202210-202312

main90016-AA614iAXUH70..LIMD¥270202311-202410

main90016-AA614iAXUH78,TXUA7#;AXUH70..LE,XLE¥270202311

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAXUH7#,GSU7#¥50202002-202210

main47769-50010iAXUH7#,TXUA75..LHD¥50202210-202311

main47769-50010iAXUH78,TXUA7#..RHD¥50202210-202312

main47769-50010iAXUH70..LIMD¥50202311-202410

main47769-50010iAXUH78,TXUA7#;AXUH70..LE,XLE¥50202311

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14196iAXUH7#,GSU7#¥190202002-202210

(J)

main90105-14196iAXUH78,TXUA7#;AXUH70..LE,XLE¥190202311

(J)

main90105-14196iAXUH7#,TXUA75..LHD¥190202210-202311

(J)

main90105-14196iAXUH70..LIMD¥190202311-202410

(J)

main90105-14196iAXUH78,TXUA7#..RHD¥190202210-202312

(J)

main90105-A0425iAXUH78,TXUA7#;AXUH70..LE,XLE202311

(L)

main90105-A0425iAXUH7#,GSU7#202002-202210

(L)

main90105-A0425iAXUH7#,TXUA75..LHD202210-202311

(L)

main90105-A0425iAXUH78,TXUA7#..RHD202210-202312

(L)

main90105-A0425iAXUH70..LIMD202311-202410

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050iAXUH7#,TXUA75..LHD202210-202311

main47814-0R050iAXUH78,TXUA7#..RHD202210-202312

main47814-0R050iAXUH70..LIMD202311-202410

main47814-0R050iAXUH78,TXUA7#;AXUH70..LE,XLE202311

main47814-0R050iAXUH7#,GSU7#202002-202210

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050iAXUH7#,GSU7#202002-202210

main47815-0R050iAXUH7#,TXUA75..LHD202210-202311

main47815-0R050iAXUH78,TXUA7#..RHD202210-202312

main47815-0R050iAXUH70..LIMD202311-202410

main47815-0R050iAXUH78,TXUA7#;AXUH70..LE,XLE202311

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0E110iAXUH7#,GSU7#202002-202210

main47821-0E110iAXUH7#,TXUA75..LHD202210-202311

main47821-0E110iAXUH78,TXUA7#..RHD202210-202312

main47821-0E110iAXUH70..LIMD202311-202410

main47821-0E110iAXUH78,TXUA7#;AXUH70..LE,XLE202311

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0E110iAXUH7#,GSU7#202002-202210

main47822-0E110iAXUH7#,TXUA75..LHD202210-202311

main47822-0E110iAXUH78,TXUA7#..RHD202210-202312

main47822-0E110iAXUH70..LIMD202311-202410

main47822-0E110iAXUH78,TXUA7#;AXUH70..LE,XLE202311

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0E110iAXUH78,TXUA7#;AXUH70..LE,XLE202311

main47830-0E110iAXUH7#,GSU7#202002-202210

main47830-0E110iAXUH7#,TXUA75..LHD202210-202311

main47830-0E110iAXUH78,TXUA7#..RHD202210-202312

main47830-0E110iAXUH70..LIMD202311-202410

47831PISTON, REAR DISC BRAKE

main47831-08020iAXUH7#,TXUA7#202210-202312

RH

main47831-08020iAXUH78,TXUA7#;AXUH70..LE,XLE202311

RH

main47831-08020iAXUH7#,GSU7#202008-202210

main47831-08020iAXUH7#,TXUA7#202210-202307

LH

main47831-08020iAXUH70..LIMD202311-202410

RH

main47831-0E110iAXUH7#,GSU75202002-202008

main47831-0E111iAXUH78,TXUA7#;AXUH70..LE,XLE202311

LH

main47831-0E111iAXUH7#,TXUA7#202307-202312

LH

main47831-0E111iAXUH70..LIMD202311-202410

LH

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0E110iAXUH70..LIMD202311-202410

main47850-0E110iAXUH7#,GSU7#202002-202210

main47850-0E110iAXUH7#,TXUA75..LHD202210-202311

main47850-0E110iAXUH78,TXUA7#..RHD202210-202312

main47850-0E110iAXUH78,TXUA7#;AXUH70..LE,XLE202311

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-0E010iAXUH7#,GSU7#202002-202210

main47881-0E010iAXUH7#,TXUA75..LHD202210-202311

main47881-0E010iAXUH78,TXUA7#..RHD202210-202312

main47881-0E010iAXUH70..LIMD202311-202410

main47881-0E010iAXUH78,TXUA7#;AXUH70..LE,XLE202311

47882COVER, DISC BRAKE DUST, REAR LH

main47882-0E010iAXUH7#,GSU7#202002-202210

main47882-0E010iAXUH7#,TXUA75..LHD202210-202311

main47882-0E010iAXUH78,TXUA7#..RHD202210-202312

main47882-0E010iAXUH70..LIMD202311-202410

main47882-0E010iAXUH78,TXUA7#;AXUH70..LE,XLE202311

19 parts on this diagram · 1 diagram in section
