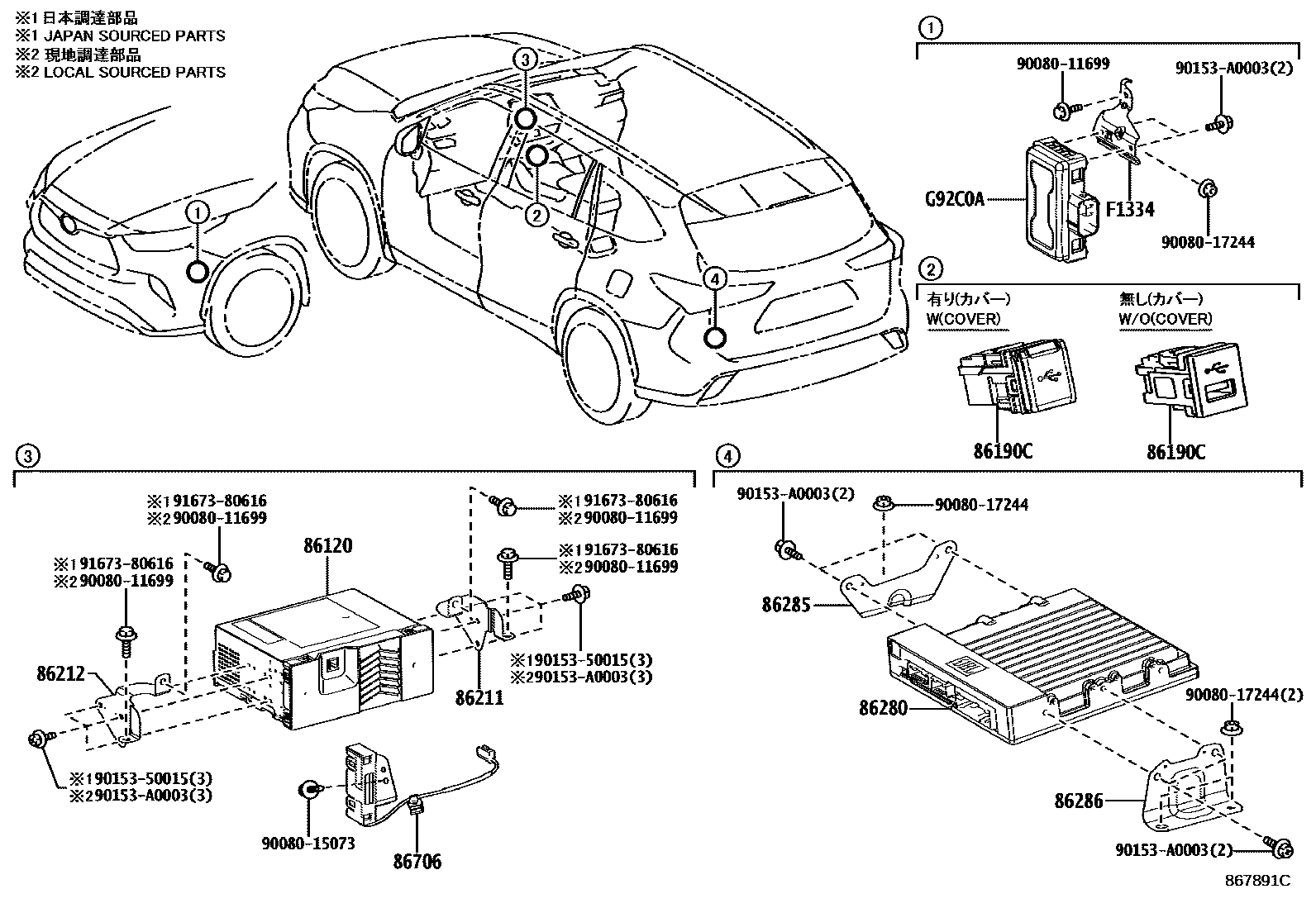

Toyota HIGHLANDER/KLUGER — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0E730

main86120-0E731

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0C031iAXUH78,GSU7#..RHD202011-202210

main86190-34010iAXUH7#,TXUA75..LHD¥3,780202210-202410

main86190-35020iAXUH7#,GSU75..LHD¥3,780202002-202109

main86190-52070iAXUH7#,GSU75..LHD¥4,160202110-202210

86211BRACKET, RADIO, NO.1

main86211-0E140

86212BRACKET, RADIO, NO.2

main86212-0E140

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0E160iAXUH78,GSU7#..LIMD..(ARL,RUS)202003-202210

main86280-0E300iAXUH78..LIMD..(EUR,GCC)202411

AUDIO-12.3INCH JBL11SPEAKER

main86280-0E340iTXUA75..LIMD..RUS202311-202312

AUDIO-12.3INCH JBL11SPEAKER

sub86280-0E341

main86280-0E340iTXUA75..LIMD..RUS202210-202312

AUDIO-12.3INCH T2 JBL11SPEAKER

sub86280-0E341

main86280-0E341iAXUH78,TXUA7#..LIMD..(ARL,RUS)202312-202411

AUDIO-12.3INCH JBL11SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-0E040iAXUH78,GSU7#..LIMD..(ARL,RUS)202003-202210

main86285-0E040iTXUA75..LIMD..RUS202210-202312

AUDIO-12.3INCH T2 JBL11SPEAKER

main86285-0E040iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

AUDIO-12.3INCH JBL11SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-0E060iAXUH78,GSU7#..LIMD..(ARL,RUS)202003-202210

main86286-0E060iTXUA75..LIMD..RUS202210-202312

AUDIO-12.3INCH T2 JBL11SPEAKER

main86286-0E060iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

AUDIO-12.3INCH JBL11SPEAKER

86706BASE SUB-ASSY, TRANSCEIVER ANTENNA

main86706-0E010

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF13340E020iGSU7#..LIMD..ARL202012-202312

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iGSU7#..LIMD..ARL202012-202312

9008011699

main90080-11699¥110

9008015073

main90080-15073

9008017244

main90080-17244¥80

9015350015

main90153-50015¥60

90153A0003

main90153-A0003

9167380616

main91673-80616¥60

16 parts on this diagram · 2 diagrams in section
