Toyota HIGHLANDER/KLUGER — PARTIAL ENGINE ASSEMBLY

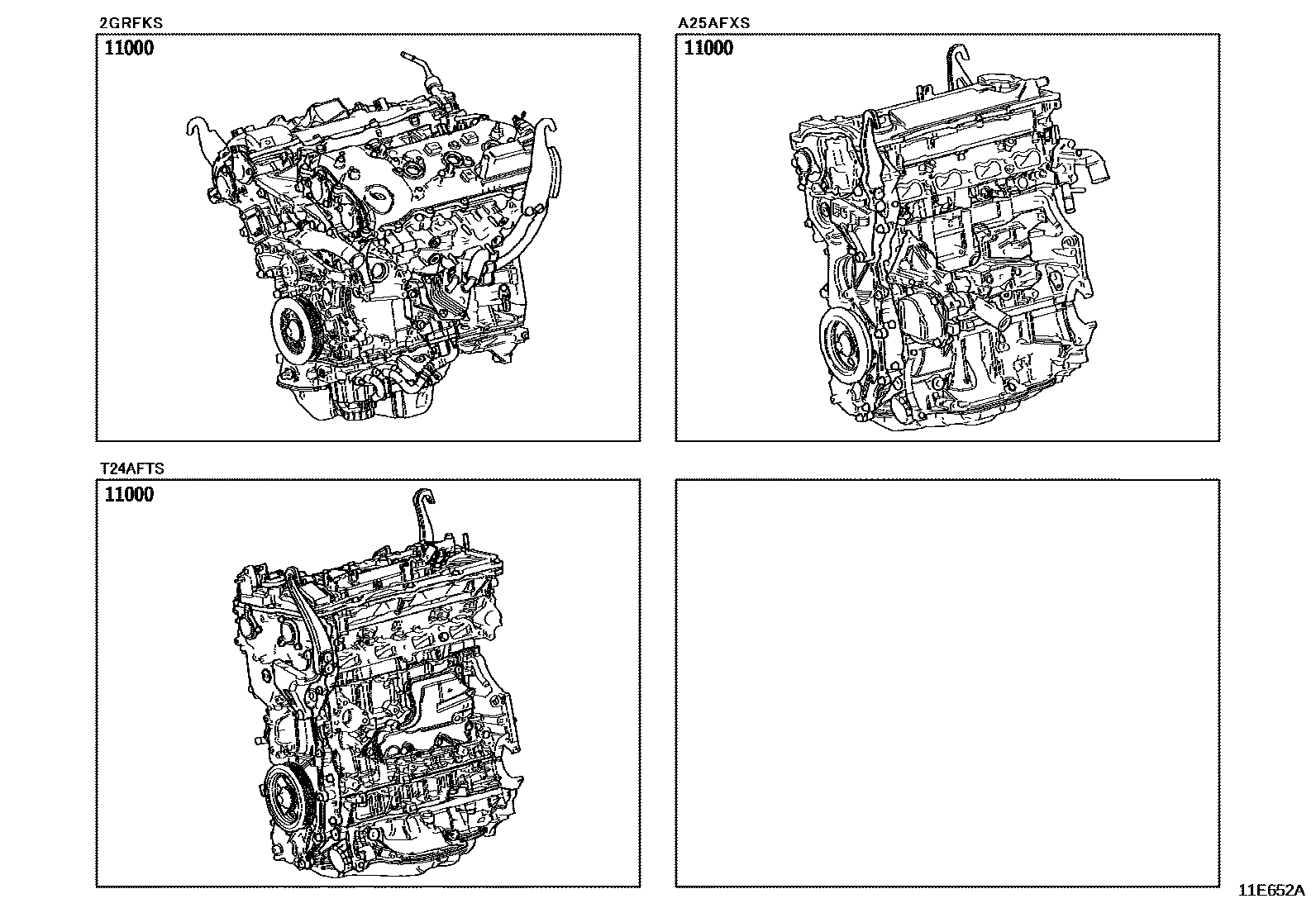

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0P570i202003-202210
main19000-0P590i202012-202210
main19000-F0040i202002-202110
main19000-F0140i202110-202208
sub19000-F0170
main19000-F0150i202311
main19000-F0150i202210-202312
main19000-F0150i202210-202311
main19000-F0170i202311
main19000-F0170i202208-202210
main19000-F0170i202210-202311
main19000-F0170i202210-202312
main19000-F0170i202311-202410

1 parts on this diagram · 1 diagram in section
