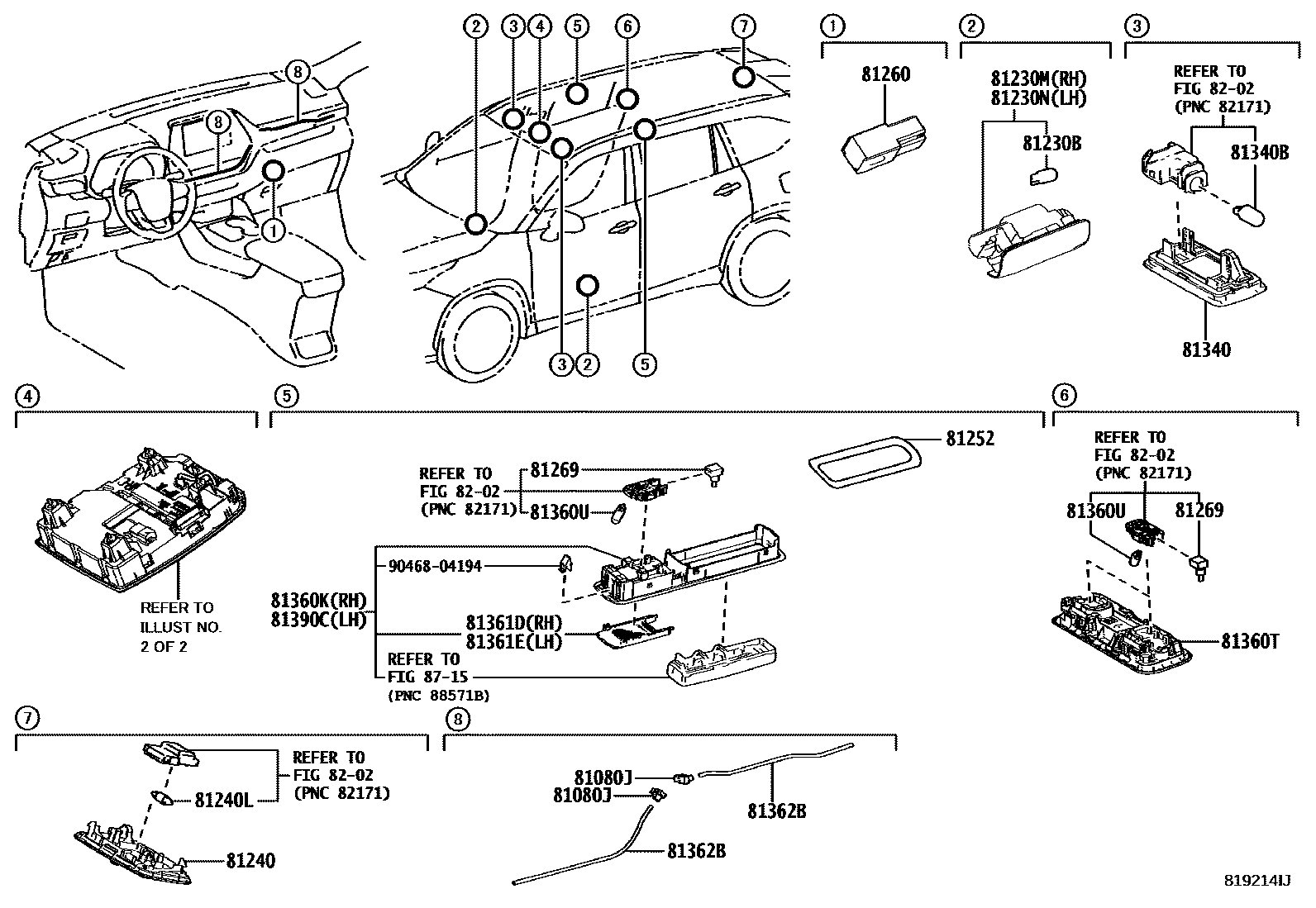

Toyota HIGHLANDER/KLUGER — INTERIOR LAMP

0001 1 0002 1 0003 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0E020iAXUH7#,GSU7#..LIMD202002-202210

main81080-0E140iAXUH70..LIMD202311-202410

main81080-0E140iAXUH78,TXUA7#..LIMD202311

HYBRID SPECIAL EDITION

main81080-0E140iAXUH78,TXUA7#..RHD..LIMD202210-202312

main81080-0E140iAXUH7#,TXUA75..LHD..LIMD202210-202311

HYBRID SPECIAL EDITION

81230BBULB(FOR COURTESY LAMP)

main90981-12010iAXUH78,TXUA7#..RHD¥110202210-202312

12V 5W

main90981-12010iAXUH7#,TXUA75..LHD¥110202210-202311

12V 5W

main90981-12010iAXUH7#,GSU7#¥110202002-202210

12V 5W

main90981-12010iAXUH78,TXUA7#;AXUH70..LE,XLE¥110202311

12V 5W

main90981-12010iAXUH70..LIMD¥110202311-202410

12V 5W

81230MLAMP ASSY, COURTESY, RH

main81230-06040iAXUH7#,GSU7#202002-202210

main81230-06040iAXUH7#,TXUA75..LHD202210-202311

main81230-06040iAXUH78,TXUA7#..RHD202210-202312

main81230-06040iAXUH70..LIMD202311-202410

main81230-06040iAXUH78,TXUA7#;AXUH70..LE,XLE202311

81230NLAMP ASSY, COURTESY, LH

main81230-06040iAXUH78,TXUA7#;AXUH70..LE,XLE202311

main81230-06040iAXUH78,TXUA7#..RHD202210-202312

main81230-06040iAXUH7#,TXUA75..LHD202210-202311

main81230-06040iAXUH7#,GSU7#202002-202210

main81230-06040iAXUH70..LIMD202311-202410

81240LAMP ASSY, ROOM, NO.1

main81240-12100-B0iAXUH78,TXUA7#..(LE,XLE)..(ARL,EUR,RUS)202311

LT.GRAY,TRIM1#,2#,40

main81240-12100-B0iAXUH7#..(LE,XLE)..GCC202010-202210

LT.GRAY,TRIM1#,2#

main81240-12100-B0iAXUH7#..(LE,XLE)..GCC202010-202210

LT.GRAY,TRIM1#,2#,4#

main81240-12100-B0iAXUH7#..(LE,XLE)..GCC202010-202210

LT.GRAY,TRIM1#,2#,40

main81240-12100-B0iAXUH7#..(LE,XLE)..GCC202210-202311

LT.GRAY,TRIM1#,2#

main81240-12100-B0iAXUH7#..(LE,XLE)..GCC202210-202311

LT.GRAY,TRIM1#,2#,40

main81240-12100-B0iAXUH7#..(LE,XLE)..GCC202210-202311

LT.GRAY,TRIM1#,2#,4#

main81240-12100-B0iAXUH78,TXUA7#..LE..ARL202210-202312

LT.GRAY,TRIM1#,2#,4#

main81240-12100-B0iAXUH78,TXUA7#..LE..ARL202210-202312

LT.GRAY,TRIM1#,2#,40

main81240-12100-B0iAXUH70..LIMD202311-202410

LT.GRAY,TRIM1#,2#,4#

main81240-12100-B0iAXUH7#..(LE,XLE)..GCC202311

LT.GRAY,TRIM1#,2#

main81240-12100-B0iAXUH7#..(LE,XLE)..GCC202311

LT.GRAY,TRIM1#,2#,4#

main81240-12100-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM41,42

main81240-12100-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM41

main81240-12100-C0iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

BLACK,TRIM42

main81240-12100-C0iAXUH78,GSU7#..LIMD..(ARL,EUR,RUS)202010-202210

BLACK,TRIM41

main81240-12100-C0iAXUH78,TXUA75..LHD..LIMD..(EUR,RUS)202210-202311

BLACK,TRIM41

main81240-12100-C0iAXUH78,TXUA7#..RHD..LIMD202210-202312

BLACK,TRIM41

main81240-60060-B0iGSU75..LE;AXUH7#..LIMD202002-202009

LT.GRAY,TRIM1#,2#,4#

sub81240-12100¥3,500

main81240-60060-B0iAXUH7#..LE,XLE202002-202009

LT.GRAY,TRIM1#,2#

sub81240-12100¥3,500

main81240-60060-B0iGSU75..LIMD202003-202009

LT.GRAY,TRIM1#,2#,40

sub81240-12100¥3,500

main81240-60060-C1iGSU75..LIMD202003-202009

BLACK,TRIM41

sub81240-12100¥3,500

81240LBULB, ROOM LAMP

main90981-14011iAXUH7#,GSU7#¥180202002-202210

12V 8W

main90981-14011iAXUH78,TXUA7#;AXUH70..LE,XLE¥180202311

12V 8W

main90981-14011iAXUH70..LIMD¥180202311-202410

12V 8W

main90981-14011iAXUH78,TXUA7#..RHD¥180202210-202312

12V 8W

main90981-14011iAXUH7#,TXUA75..LHD¥180202210-202311

12V 8W

81252PACKING, ROOM LAMP

main55871-0E030iAXUH7#,TXUA7#..LIMD..(ARL,EUR,GCC)202210-202309

MOON ROOF-WITH(PANORAMA ROOF)

main55871-0E030iGSU75..LIMD..RUS202003-202210

81260LAMP ASSY, GLOVE BOX

main81080-33290iAXUH78,TXUA7#;AXUH70..LE,XLE¥920202311

main81080-33290iAXUH70..LIMD¥920202311-202410

main81080-48010iAXUH7#,TXUA75..LHD¥860202210-202311

main81080-48010iAXUH78,TXUA7#..RHD¥860202210-202312

main81080-48010iAXUH7#,GSU7#¥860202002-202210

81269SWITCH, MAP LAMP

main84532-58010iAXUH70..LIMD¥740202311-202410

main84532-58010iAXUH78,TXUA7#;AXUH70..LE,XLE¥740202311

main84532-58010iAXUH78,TXUA7#..RHD¥740202210-202312

main84532-58010iAXUH7#,GSU7#¥740202002-202210

main84532-58010iAXUH7#,TXUA75..LHD¥740202210-202311

81340LAMP ASSY, VANITY

main81340-30110iAXUH78,TXUA7#;AXUH70..LE,XLE¥1,670202311

main81340-30110iAXUH78,TXUA7#..RHD¥1,670202210-202312

main81340-30110iAXUH7#,TXUA75..LHD¥1,670202210-202311

main81340-30110iAXUH7#,GSU7#¥1,670202002-202210

main81340-30110iAXUH70..LIMD¥1,670202311-202410

81340BBULB (FOR VANITY LAMP)

main90981-11062iAXUH7#,GSU7#¥340202002-202210

12V 8W

main90981-11062iAXUH78,TXUA7#;AXUH70..LE,XLE¥340202311

12V 8W

main90981-11062iAXUH70..LIMD¥340202311-202410

12V 8W

main90981-11062iAXUH78,TXUA7#..RHD¥340202210-202312

12V 8W

main90981-11062iAXUH7#,TXUA75..LHD¥340202210-202311

12V 8W

81360KLAMP ASSY, SPOT, RH

main81360-0E060-B0iAXUH78,TXUA7#..LIMD..(ARL,EUR,GCC)202311

LT.GRAY,TRIM1#,2#,40

main81360-0E060-B0iGSU75..LIMD..RUS202003-202210

LT.GRAY,TRIM1#,2#,40

main81360-0E060-B0iAXUH78,TXUA7#..LIMD..(ARL,EUR,GCC)202311

MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40

main81360-0E060-B0iTXUA75..LIMD..RUS202210-202311

LT.GRAY,TRIM1#,2#,40

main81360-0E060-B0iTXUA75..LIMD..RUS202210-202311

MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,4#

main81360-0E060-B0iTXUA75..LIMD..RUS202210-202311

MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40

main81360-0E060-C0iTXUA75..LIMD..RUS202210-202311

BLACK,TRIM41

main81360-0E060-C0iTXUA75..LIMD..RUS202210-202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41

main81360-0E060-C0iGSU75..LIMD..RUS202003-202210

BLACK,TRIM41

main81360-0E060-C0iAXUH78..LIMD..EUR202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41,42

main81360-0E060-C0iTXUA75..LIMD..RUS202311

BLACK,TRIM41

main81360-0E060-C0iTXUA75..LIMD..RUS202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM42

81360TLAMP ASSY, SPOT

main81360-0E080-B0iAXUH78,TXUA7#..RHD..LIMD202210-202312

LT.GRAY,TRIM1#,2#,4#

main81360-0E080-B0iAXUH78,TXUA7#..LE..ARL202210-202312

LT.GRAY,TRIM1#,2#,40

main81360-0E080-B0iAXUH78,TXUA7#..LIMD..(ARL,EUR,GCC)202311

LT.GRAY,TRIM1#,2#,40

main81360-0E080-B0iAXUH78,TXUA7#..LIMD..(ARL,EUR,GCC)202311

LT.GRAY,TRIM1#,2#,4#

main81360-0E080-B0iAXUH78,TXUA7#..LIMD..(ARL,EUR,GCC)202311

LT.GRAY,TRIM1#,2#

main81360-0E080-B0iAXUH78..LHD..LIMD..EUR202210-202311

LT.GRAY,TRIM1#,2#,40

main81360-0E080-B0iAXUH78..LHD..LIMD..EUR202210-202311

LT.GRAY,TRIM1#,2#,4#

main81360-0E080-B0iAXUH7#..LIMD..GCC;AXUH78,TXUA75..(LE,XLE)..(EUR,RUS)202210-202311

LT.GRAY,TRIM1#,2#

main81360-0E080-B0iAXUH7#..(LE,XLE)..GCC202002-202210

LT.GRAY,TRIM1#,2#

main81360-0E080-B0iAXUH7#..(LE,XLE)..GCC202002-202210

LT.GRAY,TRIM1#,2#,4#

main81360-0E080-B0iAXUH78,GSU7#..LIMD..(ARL,EUR)202011-202210

LT.GRAY,TRIM1#,2#,40

main81360-0E080-B0iAXUH70..LIMD202311-202410

LT.GRAY,TRIM1#,2#,4#

main81360-0E080-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM41,42

main81360-0E080-C0iAXUH78..LHD..LIMD..EUR202210-202311

BLACK,TRIM41

main81360-0E080-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM42

main81360-0E080-C0iAXUH78,TXUA7#..LIMD..ARL202401

BLACK,TRIM41

main81360-0E080-C0iAXUH78,GSU7#..LIMD..(ARL,EUR)202011-202210

BLACK,TRIM41

main81360-0E080-C0iAXUH78,TXUA7#..RHD..LIMD202210-202312

BLACK,TRIM41

81360UBULB, SPOT LAMP

main90981-11062iAXUH78,TXUA7#;AXUH70..LE,XLE¥340202311

main90981-11062iAXUH70..LIMD¥340202311-202410

main90981-11062iAXUH78,TXUA7#..RHD¥340202210-202312

main90981-11062iAXUH7#,TXUA75..LHD¥340202210-202311

main90981-11062iAXUH7#,GSU7#¥340202002-202210

81361DLENS, SPOT LAMP

main81361-0E010iGSU75..LIMD..RUS202003-202210

main81361-0E010iTXUA75..LIMD..RUS202210-202311

MOON ROOF-WITH(PANORAMA ROOF)

main81361-0E010iTXUA75..LIMD..RUS202311

MOON ROOF-WITH(PANORAMA ROOF)

81361ELENS, SPOT LAMP, NO.2

main81361-0E020iGSU75..LIMD..RUS202003-202210

main81361-0E020iTXUA75..LIMD..RUS202210-202311

MOON ROOF-WITH(PANORAMA ROOF)

main81361-0E020iTXUA75..LIMD..RUS202311

MOON ROOF-WITH(PANORAMA ROOF)

81362BLENS, INTERIOR ILLUMINATION LAMP

main81362-0E040iAXUH70..LIMD202311-202410

main81362-0E040iAXUH78,TXUA7#..LIMD202311

HYBRID SPECIAL EDITION

main81362-0E040iAXUH7#,GSU7#..LIMD202002-202210

main81362-0E040iAXUH7#,TXUA75..LHD..LIMD202210-202311

HYBRID SPECIAL EDITION

main81362-0E040iAXUH78,TXUA7#..RHD..LIMD202210-202312

81390CLAMP ASSY, SPOT, LH

main81390-0E040-B0iAXUH78..LHD..LIMD..EUR202210-202311

MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40

main81390-0E040-B0iAXUH78,TXUA7#..LIMD..(ARL,EUR,GCC)202311

MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,40

main81390-0E040-B0iAXUH78,TXUA7#..LIMD..(ARL,EUR,GCC)202311

LT.GRAY,TRIM1#,2#,40

main81390-0E040-B0iGSU75..LIMD..RUS202003-202210

LT.GRAY,TRIM1#,2#,40

main81390-0E040-B0iTXUA75..LIMD..RUS202210-202311

LT.GRAY,TRIM1#,2#,40

main81390-0E040-B0iTXUA75..LIMD..RUS202210-202311

MOON ROOF-WITH(PANORAMA ROOF),LT.GRAY,TRIM1#,2#,4#

main81390-0E040-C0iAXUH78..LIMD..GCC202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM42

main81390-0E040-C0iAXUH78..LIMD..GCC202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41,42

main81390-0E040-C0iAXUH78..LIMD..EUR202311

BLACK,TRIM41

main81390-0E040-C0iGSU75..LIMD..RUS202003-202210

BLACK,TRIM41

main81390-0E040-C0iTXUA75..LIMD..RUS202210-202311

BLACK,TRIM41

main81390-0E040-C0iTXUA75..LIMD..RUS202210-202311

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM41

8202

8715

9046804194

main90468-04194¥180

21 parts on this diagram · 3 diagrams in section
