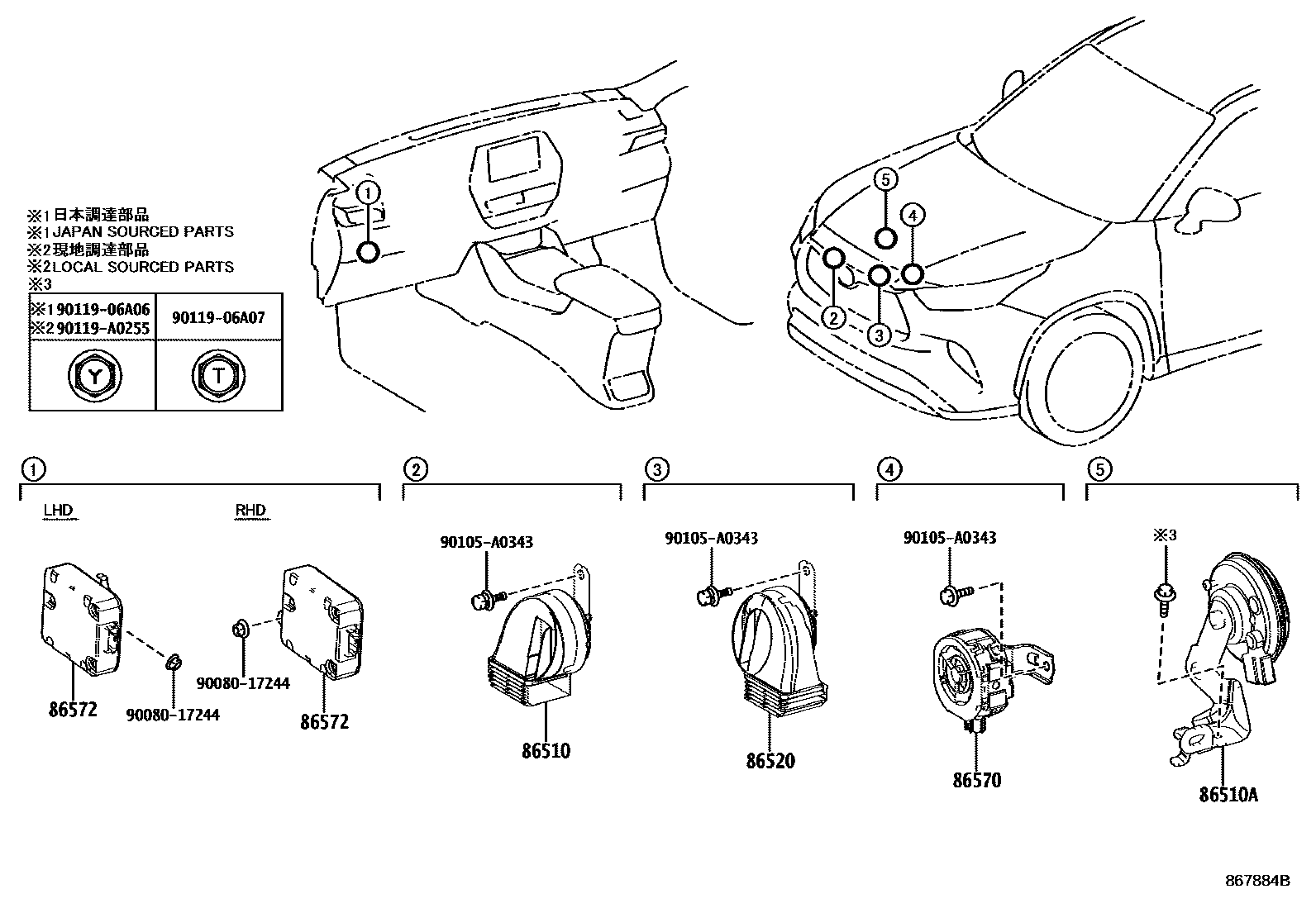

Toyota HIGHLANDER/KLUGER — HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-0E040iAXUH78..GCC;AXUH70..LE,XLE¥2,270202002-202411

main86510-33230iAXUH78..GCC;AXUH70..LE,XLE202003-202311

86510AHORN ASSY, SECURITY

main86560-06060iAXUH78,GSU7#..ARL;AXUH7#..(LIMD,XLE)..GCC202002-202410

main86560-48070iAXUH78,GSU75..EUR,RUS202003-202312

86520HORN ASSY, LOW PITCHED

main86520-0E020iAXUH7#,GSU7#..ARL,EUR,GCC¥2,270202002-202411

main86520-33170iGSU75..RUS202003-202311

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-48060iAXUH78..EUR202011-202312

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-48080iAXUH78..LHD..EUR202011-202311

main86572-48100iAXUH78..RHD..EUR202011-202312

main865H2-48010iAXUH78..LHD..EUR202311

main865H2-48020iAXUH78..RHD..EUR202401

9008017244

main90080-17244¥80

90105A0343

main90105-A0343

9011906A06

main90119-06A06¥60

9011906A07

main90119-06A07¥60

90119A0255

main90119-A0255

10 parts on this diagram · 2 diagrams in section
