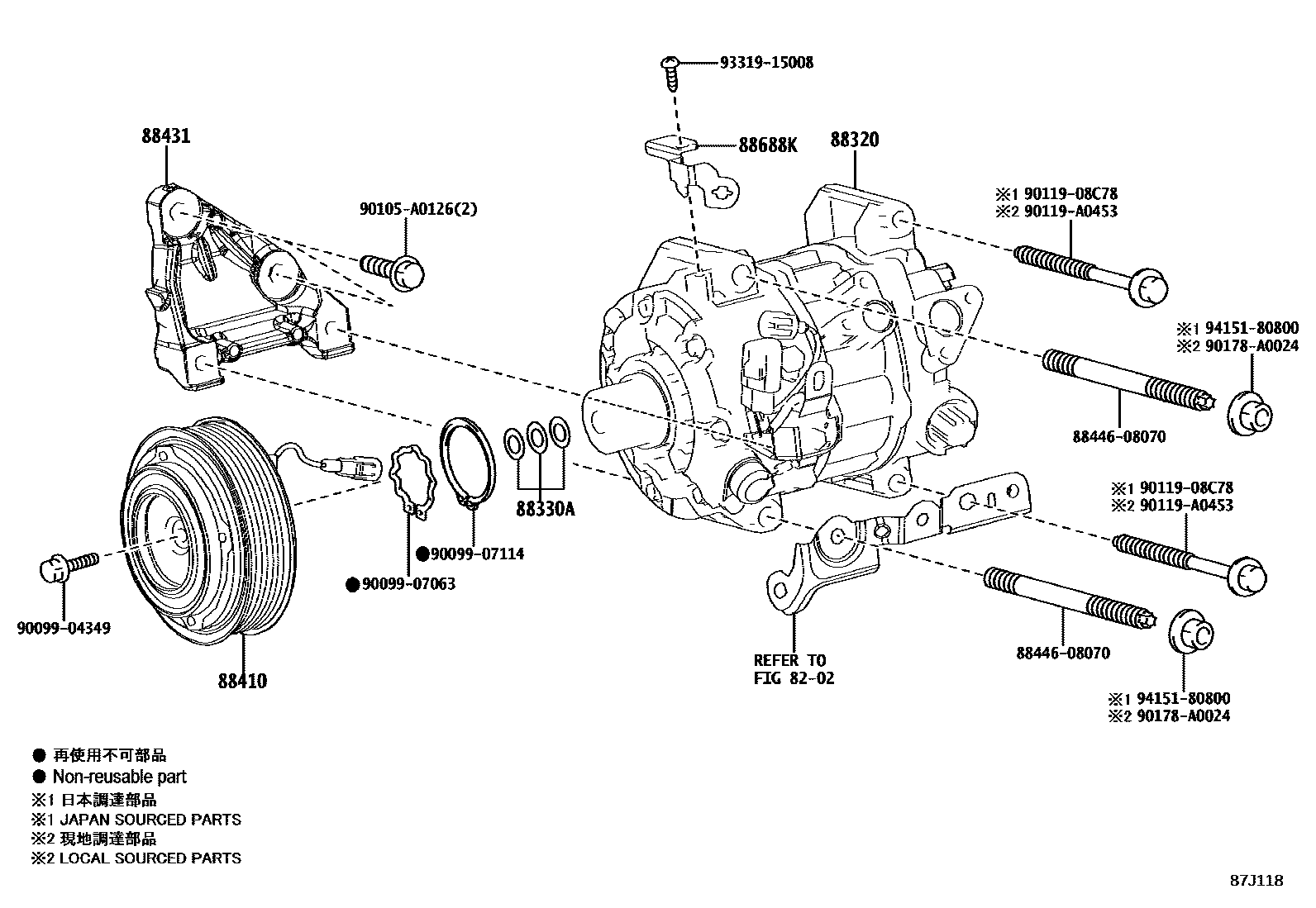

Toyota HIGHLANDER/KLUGER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

8202

88320COMPRESSOR ASSY, COOLER

main88320-0E130iGSU7#202003-202210

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGSU7#202003-202210

88410CLUTCH ASSY, MAGNET

main88410-0N010iGSU7#¥27,300202003-202210

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0E010iGSU75202003-202004

sub88431-0E040

main88431-0E040iGSU7#202004-202210

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGSU7#¥0202003-202210

8844608070BOLT, IDLE PULLEY

main88446-08070¥170

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

90105A0126

main90105-A0126

9011908C78

main90119-08C78¥0

90119A0453

main90119-A0453

90178A0024

main90178-A0024

9331915008

main93319-15008¥170

9415180800

main94151-80800¥80

16 parts on this diagram · 4 diagrams in section
