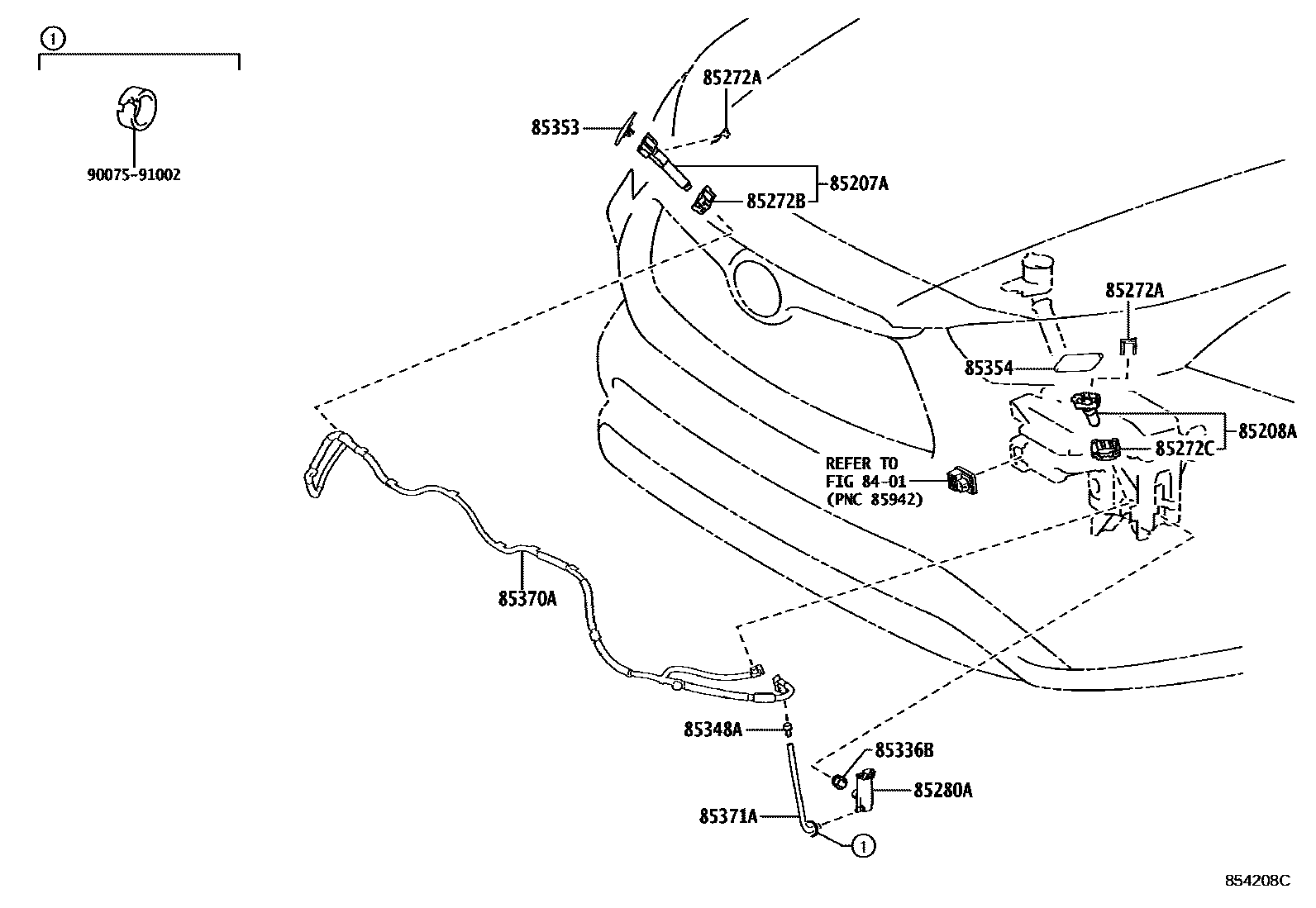

Toyota HIGHLANDER/KLUGER — HEADLAMP CLEANER

8401

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-0E040iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

main85207-0E040iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

main85207-0E040iAXUH78..RHD..EUR202210-202312

main85207-0E040iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-0E040iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

main85208-0E040iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

main85208-0E040iAXUH78..RHD..EUR202210-202312

main85208-0E040iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-75050iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)¥200202003-202210

main85272-75050iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)¥200202210-202311

main85272-75050iAXUH78..RHD..EUR¥200202210-202312

main85272-75050iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)¥200202311

85272BCLAMP, HEADLAMP CLEANER, NO.2

main85272-0E060iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

main85272-0E060iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

main85272-0E060iAXUH78..RHD..EUR202210-202312

main85272-0E060iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

85272CCLAMP, HEADLAMP CLEANER, NO.3

main85273-0E060iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

main85273-0E060iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

main85273-0E060iAXUH78..RHD..EUR202210-202312

main85273-0E060iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-47010iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)¥5,500202003-202210

main85280-47010iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)¥5,500202210-202311

main85280-47010iAXUH78..RHD..EUR¥5,500202210-202312

main85280-47010iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)¥5,500202311

85336BPACKING, HEADLAMP CLEANER WASHER

main90099-32089iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

main90099-32089iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

main90099-32089iAXUH78..RHD..EUR202210-202312

main90099-32089iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17012iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)¥360202003-202210

main90075-17012iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)¥360202210-202311

main90075-17012iAXUH78..RHD..EUR¥360202210-202312

main90075-17012iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)¥360202311

85353COVER, HEADLAMP WASHER, RH

main85353-0E040-A0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202110

WHITE PEARL CS.,070

main85353-0E040-A1iAXUH78..RHD..EUR202210-202312

PLATINUM WHITE PEARL MC.,089

main85353-0E040-A1iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202110-202210

PLATINUM WHITE PEARL MC.,089

main85353-0E040-A1iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

PLATINUM WHITE PEARL MC.,089

main85353-0E040-A1iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

PLATINUM WHITE PEARL MC.,089

main85353-0E040-B0iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

GRAY ME.,1G3

main85353-0E040-B0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

GRAY ME.,1G3

main85353-0E040-B0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

GRAY ME.,1G3

main85353-0E040-B0iAXUH78..RHD..EUR202210-202312

GRAY ME.,1G3

main85353-0E040-B1iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

SILVER ME.,1J9

main85353-0E040-B1iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

SILVER ME.,1J9

main85353-0E040-B1iAXUH78..RHD..EUR202210-202312

SILVER ME.,1J9

main85353-0E040-B1iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

SILVER ME.,1J9

main85353-0E040-B2iAXUH78..RHD..EUR202210-202312

PRECIOUS GALENA,1K5

main85353-0E040-B2iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311-202410

PRECIOUS GALENA,1K5

main85353-0E040-B2iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

PRECIOUS GALENA,1K5

main85353-0E040-B2iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

PRECIOUS GALENA,1K5

main85353-0E040-B3iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202410

PRECIOUS METAL,1L5

main85353-0E040-C0iAXUH78..RHD..EUR202210-202312

ATTITUDE BLACK MC.,218

main85353-0E040-C0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

ATTITUDE BLACK MC.,218

main85353-0E040-C0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

ATTITUDE BLACK MC.,218

main85353-0E040-C0iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

ATTITUDE BLACK MC.,218

main85353-0E040-D0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

RED MC.,3T3

main85353-0E040-D0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

RED MC.,3T3

main85353-0E040-D0iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

RED MC.,3T3

main85353-0E040-D0iAXUH78..RHD..EUR202210-202312

RED MC.,3T3

main85353-0E040-E0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

BLACKISH BROWN MC.,4X9

main85353-0E040-G0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202311

GREEN M.M.,6X5

main85353-0E040-G0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

GREEN M.M.,6X5

main85353-0E040-J0iAXUH78..RHD..EUR202210-202312

DK. BLUE MC.,8X8

main85353-0E040-J0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

DK. BLUE MC.,8X8

main85353-0E040-J0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

DK. BLUE MC.,8X8

main85353-0E040-J0iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

DK. BLUE MC.,8X8

85354COVER, HEADLAMP WASHER, LH

main85354-0E040-A0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202110

WHITE PEARL CS.,070

main85354-0E040-A1iAXUH78..RHD..EUR202210-202312

PLATINUM WHITE PEARL MC.,089

main85354-0E040-A1iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

PLATINUM WHITE PEARL MC.,089

main85354-0E040-A1iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

PLATINUM WHITE PEARL MC.,089

main85354-0E040-A1iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202110-202210

PLATINUM WHITE PEARL MC.,089

main85354-0E040-B0iAXUH78..RHD..EUR202210-202312

GRAY ME.,1G3

main85354-0E040-B0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

GRAY ME.,1G3

main85354-0E040-B0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

GRAY ME.,1G3

main85354-0E040-B0iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

GRAY ME.,1G3

main85354-0E040-B1iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

SILVER ME.,1J9

main85354-0E040-B1iAXUH78..RHD..EUR202210-202312

SILVER ME.,1J9

main85354-0E040-B1iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

SILVER ME.,1J9

main85354-0E040-B1iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

SILVER ME.,1J9

main85354-0E040-B2iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

PRECIOUS GALENA,1K5

main85354-0E040-B2iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311-202410

PRECIOUS GALENA,1K5

main85354-0E040-B2iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

PRECIOUS GALENA,1K5

main85354-0E040-B2iAXUH78..RHD..EUR202210-202312

PRECIOUS GALENA,1K5

main85354-0E040-B3iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202410

PRECIOUS METAL,1L5

main85354-0E040-C0iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

ATTITUDE BLACK MC.,218

main85354-0E040-C0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

ATTITUDE BLACK MC.,218

main85354-0E040-C0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

ATTITUDE BLACK MC.,218

main85354-0E040-C0iAXUH78..RHD..EUR202210-202312

ATTITUDE BLACK MC.,218

main85354-0E040-D0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

RED MC.,3T3

main85354-0E040-D0iAXUH78..RHD..EUR202210-202312

RED MC.,3T3

main85354-0E040-D0iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

RED MC.,3T3

main85354-0E040-D0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

RED MC.,3T3

main85354-0E040-E0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

BLACKISH BROWN MC.,4X9

main85354-0E040-G0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202311

GREEN M.M.,6X5

main85354-0E040-G0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

GREEN M.M.,6X5

main85354-0E040-J0iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

DK. BLUE MC.,8X8

main85354-0E040-J0iAXUH78..RHD..EUR202210-202312

DK. BLUE MC.,8X8

main85354-0E040-J0iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

DK. BLUE MC.,8X8

main85354-0E040-J0iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

DK. BLUE MC.,8X8

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

main85271-0E040iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

main85271-0E040iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

main85271-0E040iAXUH78..RHD..EUR202210-202312

main85271-0E040iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15057iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)¥340202003-202210

L=220

main90075-15057iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)¥340202210-202311

L=220

main90075-15057iAXUH78..RHD..EUR¥340202210-202312

L=220

main90075-15057iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)¥340202311

L=220

9007591002

main90075-91002¥110

14 parts on this diagram · 1 diagram in section
