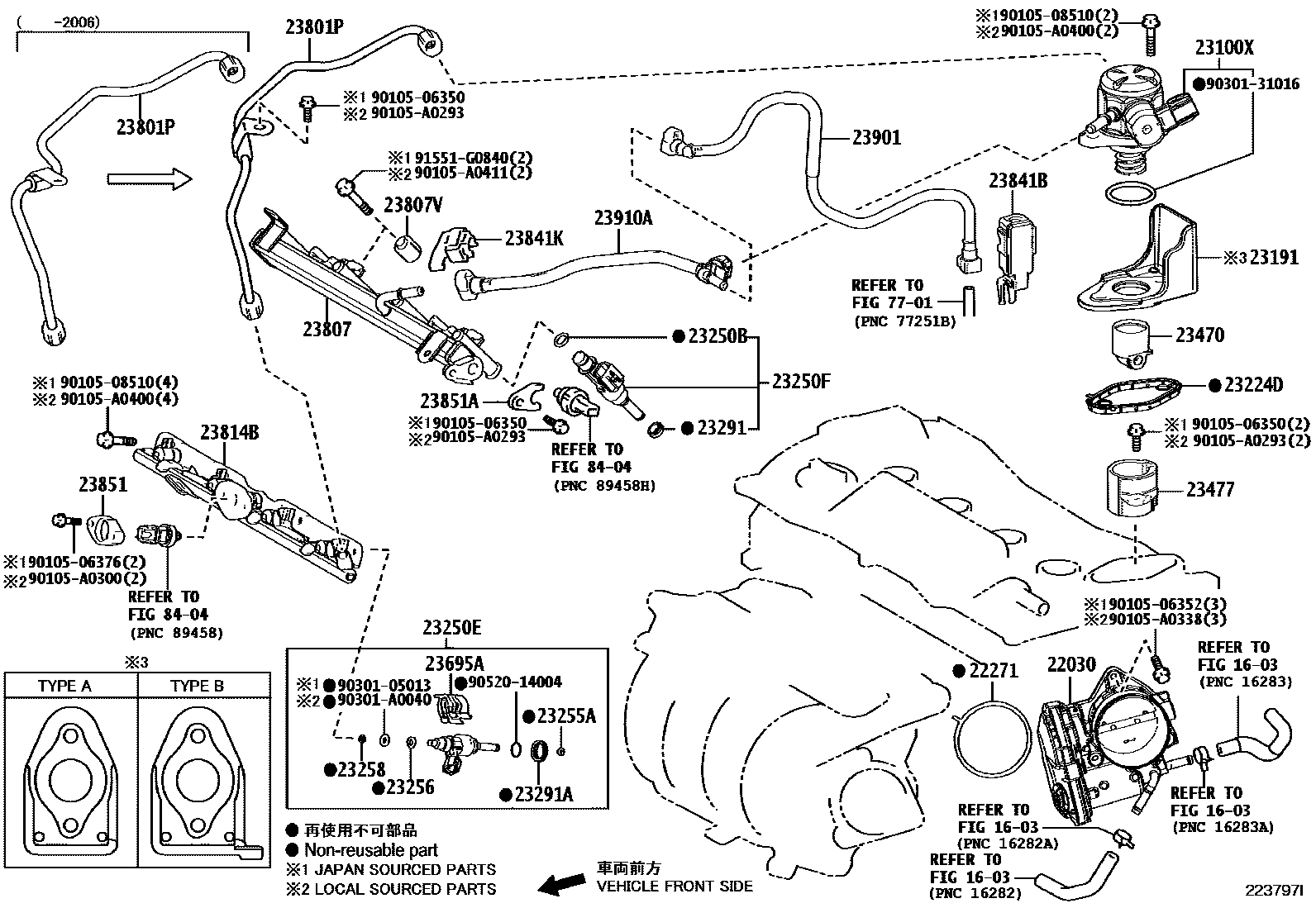

Toyota HIGHLANDER/KLUGER — FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
*636
(J)
*489
*489 OR *769
(L)
22271GASKET, THROTTLE BODY
*636
*636,*489,(J)
*489 OR *769
*489,(L)
*489
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
*636
(J)
*489
*489 OR *769
(L)
23191FLANGE, FUEL PUMP
*636T/P A:REF.ILLUST,*489T/P A:REF.ILLUST
*636T/P B:REF.ILLUST,*489T/P B:REF.ILLUST
*489,*636
*636,*489 OR *769
23250BRING, O(FOR FUEL INJECTOR)
NO.2
(J),*636
*636
*489,(L),*636
*489
*489 OR *769,(L),*636
(L),*636
NO.1
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1
MARK 2
MARK 3
MARK 1,*636
MARK 2,*636
MARK 3,*636
MARK 4,*636
MARK 5,*636
MARK 6,*636
MARK 7,*636
MARK 8,*636
MARK 9,*636
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
MARK 1,*489 OR *769
MARK 1,*489
MARK 2,*489 OR *769
MARK 2,*489
MARK 3,*489 OR *769
MARK 3,*489
MARK 4,*489
MARK 4,*489 OR *769
MARK 5,*489
MARK 5,*489 OR *769
MARK 6,*489
MARK 6,*489 OR *769
MARK 7,*489 OR *769
MARK 7,*489
MARK 8,*489
MARK 8,*489 OR *769
MARK 9,*489
MARK 9,*489 OR *769
23250FINJECTOR ASSY, FUEL(FOR PORT)
*636,*489,(J)
*636,*489 OR *769(J)
(J)
*489,(L)
*489 OR *769(L)
(L)
23255ASEAL, FUEL INJECTOR
*636,*489,(J)
*636,*489 OR *769(J)
*489 OR *769(L)
*489,(L)
23256RING, FUEL INJECTOR BACK-UP, NO.1
*636,*489 OR *769(J)
*636,*489,(J)
NO.2
*489 OR *769(L)
*489,(L)
NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
*636
NO.2
COLOR:BLACK
NO.1
*489
*489 OR *769
COLOR:BEIGE
23291INSULATOR, INJECTOR VIBRATION
(L)
*489
*489 OR *769
*636
(J)
23291AINSULATOR, INJECTOR VIBRATION
*636,*489
*636,*489 OR *769
*489,*636
23470LIFTER ASSY, FUEL PUMP
*636
(J)
*489
*489 OR *769
(L)
23477GUIDE, FUEL PUMP LIFTER
*636,*489 OR *769(J)
*636,*489,(J)
(J)
(L)
*489 OR *769(L)
*489,(L)
23695ACLAMP, NOZZLE HOLDER
*489,*636
*636,*489 OR *769
23801PPIPE SUB-ASSY, FUEL, NO.1
*636
*489
*489
*489 OR *769
23807PIPE SUB-ASSY, FUEL DELIVERY
(J)
(L)
(L)
*636
*489
*489 OR *769
23807VSPACER, NO.1(FOR DELIVERY PIPE)
*636,*489 OR *769
*489,*636
*636,*489
23814BPIPE, FUEL DELIVERY
*636,*489
*636,*489 OR *769
*489,*636
(J)
(L)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
(J)
(L)
23841KCLAMP, FUEL PIPE
(J)
(L)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
(J)
*636,*489,MADE IN JAPAN
*489,769MADEIN JAPAN,*636
(L)
*489,MADE IN USA
*489,*769MADE IN USA
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
*636,*489
*489 OR *769
*636
*489 OR *769(J)
(J)
*489 OR *769(L)
(L)
23901TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
(J)
(L)
7701
8404
9010506350
9010506352
9010506376
9010508510
90105A0293
main90105-A0293
90105A0300
main90105-A0300
90105A0338
main90105-A0338
90105A0400
main90105-A0400
90105A0411
main90105-A0411
9030105013
9030131016
90301A0040
main90301-A0040
9052014004
91551G0840
43 parts on this diagram · 3 diagrams in section
