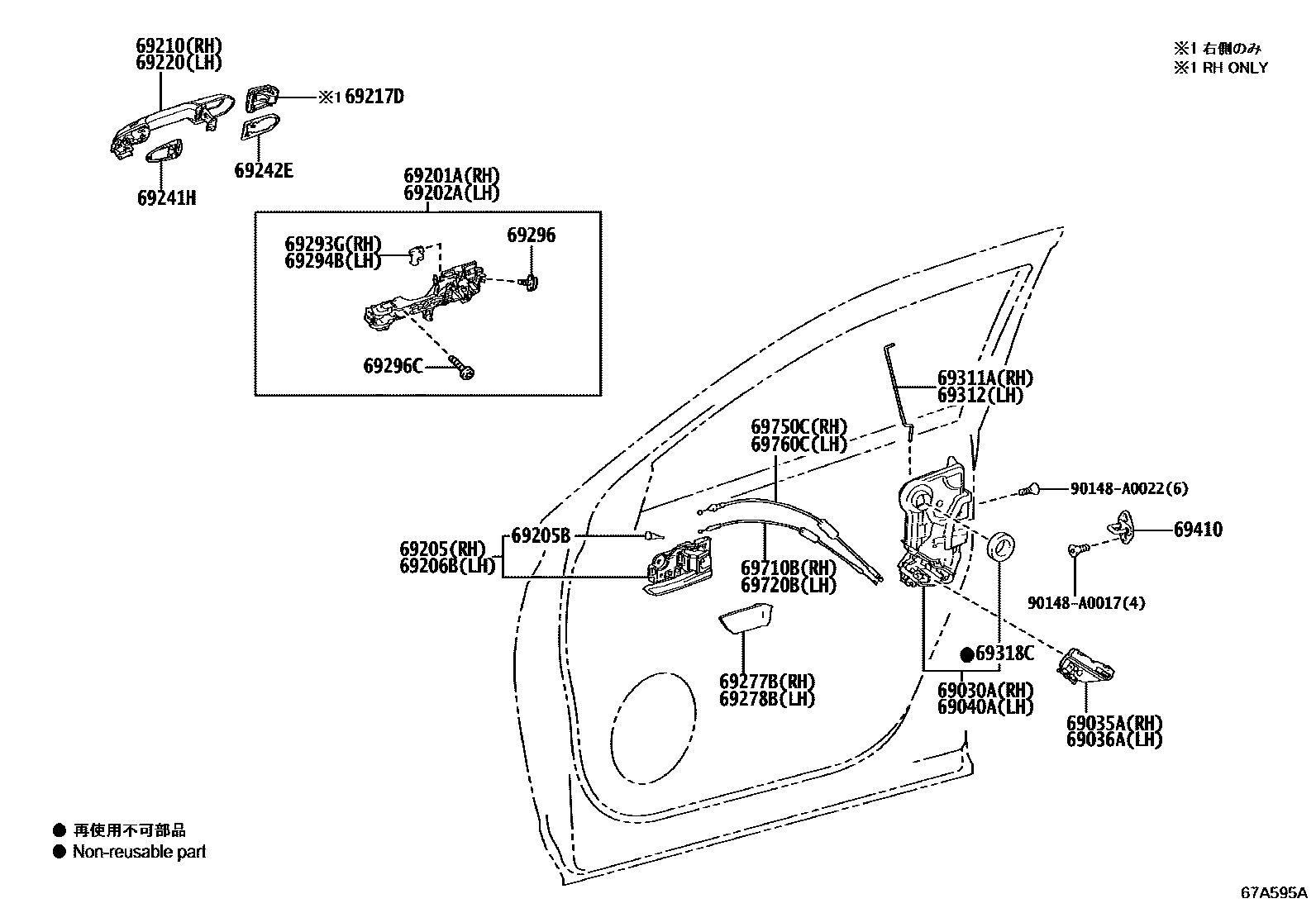

Toyota HIGHLANDER/KLUGER — FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02550iAXUH70..LIMD202002-202410

main69030-0E020iAXUH78,TXUA7#..RHD202011-202312

main69030-0E060iAXUH78..LHD..EUR202011-202311

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02030iAXUH70..LIMD202002-202410

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02030iAXUH78,TXUA7#..RHD202002-202410

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02520iAXUH7#,GSU75..LHD202002-202410

main69040-0E020iAXUH78,TXUA7#..ARL202012-202312

main69040-0E060iAXUH78..RHD..EUR202011-202312

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0R040iAXUH7#,GSU7#¥4,210202002-202410

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0R040iAXUH7#,GSU7#202002-202410

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02300-C0iAXUH7#,GSU7#..LE..(ARL,GCC)202002-202312

BLACK,TRIM1#,2#

main69205-06120-C0iAXUH78,TXUA7#..LIMD;AXUH78,TXUA75..(LE,XLE)..(EUR,RUS)202002-202311

BLACK,TRIM1#,2#

main69205-06120-C0iAXUH7#..XLE..GCC202002-202410

BLACK,TRIM1#,2#,4#

main69205-06120-C0iAXUH78,TXUA7#..RHD..LIMD202210-202312

LEATHER PACKAGE,BLACK,TRIM1#,2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005iAXUH7#,GSU7#¥60202002-202410

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02350-C0iAXUH7#,GSU7#..LE..(ARL,GCC)202002-202312

BLACK,TRIM1#,2#

main69206-06160-C0iAXUH7#..XLE..GCC202002-202311

BLACK,TRIM1#,2#

main69206-06160-C0iAXUH7#..XLE..GCC202002-202410

BLACK,TRIM1#,2#,4#

main69206-06160-C0iAXUH78,TXUA7#..RHD..LIMD202210-202312

LEATHER PACKAGE,BLACK,TRIM1#,2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0E140-A0iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202410

PLATINUM WHITE PEARL MC.,089

main69210-0E140-B0iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202410

GRAY ME.,1G3

main69210-0E140-B1iAXUH78..XLE..GCC202411

CEMENT GRAY ME.,1H5

main69210-0E140-B2iAXUH70..LIMD202311-202410

SILVER ME.,1J9

main69210-0E140-B3iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202411

PRECIOUS GALENA,1K5

main69210-0E140-B4iAXUH70..XLE;TXUA75..RUS;AXUH78..LHD..(LIMD,XLE)202411

PRECIOUS METAL,1L5

main69210-0E140-C0iAXUH70..LE,XLE;AXUH78..XLE..EUR;AXUH78,TXUA75..LHD..(LE,LIMD)202311

ATTITUDE BLACK MC.,089 ,1H5 ,218 ,3T3

main69210-0E140-C0iAXUH70..LE,XLE;AXUH78..XLE..EUR;AXUH78,TXUA75..LHD..(LE,LIMD)202311-202410

ATTITUDE BLACK MC.,218

main69210-0E140-D0iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202410

RED MC.,3T3

main69210-0E140-G0iAXUH70..LIMD202311-202410

GREEN M.M.,6X5

main69210-0E140-J0iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202410

DK. BLUE MC.,8X8

main69210-0E160-A0iAXUH78,TXUA7#..RHD202401

PLATINUM WHITE PEARL MC.,089

main69210-0E160-B0iAXUH78,TXUA7#..RHD202401

GRAY ME.,1G3

main69210-0E160-B2iAXUH78,TXUA7#..RHD202401

SILVER ME.,1J9

main69210-0E160-B3iAXUH78,TXUA7#..RHD202401-202411

PRECIOUS GALENA,1K5

main69210-0E160-B4iAXUH78,TXUA7#..RHD202411

PRECIOUS METAL,1L5

main69210-0E160-C0iAXUH78,TXUA7#..RHD202401

ATTITUDE BLACK MC.,218

main69210-0E160-D0iAXUH78,TXUA7#..RHD202401

RED MC.,3T3

main69210-0E160-J0iAXUH78,TXUA7#..RHD202401

DK. BLUE MC.,8X8

main69210-0R070-A1iAXUH7#,GSU75..LHD202002-202110

WHITE PEARL CS.,070

main69210-0R070-A2iAXUH7#,TXUA75..LHD202110-202311

PLATINUM WHITE PEARL MC.,089

main69210-0R070-B1iAXUH7#,GSU75..LHD202002-202311

GRAY ME.,1G3

main69210-0R070-B2iAXUH7#,TXUA75..LHD202002-202311

SILVER ME.,1J9

main69210-0R070-B3iAXUH7#,TXUA75..LHD202002-202311

PRECIOUS GALENA,1K5

main69210-0R070-B4iAXUH78..XLE..GCC202210-202311

CEMENT GRAY ME.,1H5

main69210-0R070-C0iAXUH7#,TXUA75..LHD202002-202311

ATTITUDE BLACK MC.,218

main69210-0R070-D0iAXUH7#,GSU75..LHD202002-202311

RED MC.,3T3

main69210-0R070-E0iAXUH7#,GSU75..LHD202002-202210

BLACKISH BROWN MC.,4X9

main69210-0R070-G1iAXUH7#,TXUA75..LHD202210-202311

GREEN M.M.,6X5

main69210-0R070-J1iAXUH7#,TXUA75..LHD202002-202311

DK. BLUE MC.,8X8

main69210-0R080-A1iAXUH78,GSU7#..RHD202011-202110

WHITE PEARL CS.,070

main69210-0R080-A2iAXUH78,GSU7#..RHD202110-202312

PLATINUM WHITE PEARL MC.,089

main69210-0R080-B1iAXUH78,TXUA7#..RHD202011-202312

GRAY ME.,1G3

main69210-0R080-B2iAXUH78,TXUA7#..RHD202011-202312

SILVER ME.,1J9

main69210-0R080-B3iAXUH78,TXUA7#..RHD202011-202312

PRECIOUS GALENA,1K5

main69210-0R080-C0iAXUH78,TXUA7#..RHD202011-202312

ATTITUDE BLACK MC.,218

main69210-0R080-D0iAXUH78,GSU7#..RHD202011-202312

RED MC.,3T3

main69210-0R080-E0iAXUH78,GSU7#..RHD202011-202210

BLACKISH BROWN MC.,4X9

main69210-0R080-J1iAXUH78,TXUA7#..RHD202011-202312

DK. BLUE MC.,8X8

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0R160iAXUH78,TXUA7#..RHD¥520202002-202410

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0E140-A0iAXUH78,TXUA7#..RHD202401

PLATINUM WHITE PEARL MC.,089

main69210-0E140-B0iAXUH78,TXUA7#..RHD202401

GRAY ME.,1G3

main69210-0E140-B2iAXUH78,TXUA7#..RHD202401

SILVER ME.,1J9

main69210-0E140-B3iAXUH78,TXUA7#..RHD202401-202411

PRECIOUS GALENA,1K5

main69210-0E140-B4iAXUH78,TXUA7#..RHD202411

PRECIOUS METAL,1L5

main69210-0E140-C0iAXUH78,TXUA7#..RHD202401

ATTITUDE BLACK MC.,218

main69210-0E140-D0iAXUH78,TXUA7#..RHD202401

RED MC.,3T3

main69210-0E140-J0iAXUH78,TXUA7#..RHD202401

DK. BLUE MC.,8X8

main69210-0E160-A0iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202410

PLATINUM WHITE PEARL MC.,089

main69210-0E160-B0iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202410

GRAY ME.,1G3

main69210-0E160-B1iAXUH78..XLE..GCC202411

CEMENT GRAY ME.,1H5

main69210-0E160-B2iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202410

SILVER ME.,1J9

main69210-0E160-B3iAXUH70..LIMD202311-202411

PRECIOUS GALENA,1K5

main69210-0E160-B4iAXUH70..XLE;TXUA75..RUS;AXUH78..LHD..(LIMD,XLE)202411

PRECIOUS METAL,1L5

main69210-0E160-C0iAXUH78..XLE..GCC202311-202410

ATTITUDE BLACK MC.,218

main69210-0E160-C0iAXUH78..XLE..GCC202311

ATTITUDE BLACK MC.,089 ,1H5 ,218 ,3T3

main69210-0E160-D0iAXUH70..LIMD202311-202410

RED MC.,3T3

main69210-0E160-G0iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311-202410

GREEN M.M.,6X5

main69210-0E160-J0iAXUH70..LIMD202311-202410

DK. BLUE MC.,8X8

main69210-0R070-A1iAXUH78,GSU7#..RHD202011-202110

WHITE PEARL CS.,070

main69210-0R070-A2iAXUH78,GSU7#..RHD202110-202312

PLATINUM WHITE PEARL MC.,089

main69210-0R070-B1iAXUH78,GSU7#..RHD202011-202312

GRAY ME.,1G3

main69210-0R070-B2iAXUH78,GSU7#..RHD202011-202312

SILVER ME.,1J9

main69210-0R070-B3iAXUH78,TXUA7#..RHD202011-202312

PRECIOUS GALENA,1K5

main69210-0R070-C0iAXUH78,TXUA7#..RHD202011-202312

ATTITUDE BLACK MC.,218

main69210-0R070-D0iAXUH78,GSU7#..RHD202011-202312

RED MC.,3T3

main69210-0R070-E0iAXUH78,GSU7#..RHD202011-202210

BLACKISH BROWN MC.,4X9

main69210-0R070-J1iAXUH78,GSU7#..RHD202011-202312

DK. BLUE MC.,8X8

main69210-0R080-A1iAXUH7#,GSU75..LHD202002-202110

WHITE PEARL CS.,070

main69210-0R080-A2iAXUH7#,GSU75..LHD202110-202311

PLATINUM WHITE PEARL MC.,089

main69210-0R080-B1iAXUH7#,GSU75..LHD202002-202311

GRAY ME.,1G3

main69210-0R080-B2iAXUH7#,TXUA75..LHD202002-202311

SILVER ME.,1J9

main69210-0R080-B3iAXUH7#,GSU75..LHD202002-202311

PRECIOUS GALENA,1K5

main69210-0R080-B4iAXUH78..XLE..GCC202210-202311

CEMENT GRAY ME.,1H5

main69210-0R080-C0iAXUH7#,TXUA75..LHD202002-202311

ATTITUDE BLACK MC.,218

main69210-0R080-D0iAXUH7#,TXUA75..LHD202002-202311

RED MC.,3T3

main69210-0R080-E0iAXUH7#,GSU75..LHD202002-202210

BLACKISH BROWN MC.,4X9

main69210-0R080-G1iAXUH7#,TXUA75..LHD202210-202311

GREEN M.M.,6X5

main69210-0R080-J1iAXUH7#,GSU75..LHD202002-202311

DK. BLUE MC.,8X8

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0R030iAXUH78,TXUA7#..RHD¥400202002-202410

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0R030iAXUH7#,GSU7#¥400202002-202410

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-0E050iAXUH7#,GSU7#202002-202410

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-0E050iAXUH7#,GSU7#¥210202002-202410

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iAXUH7#,GSU7#¥90202002-202410

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iAXUH7#,GSU7#¥90202002-202410

69296SCREW, DOOR INSIDE HANDLE

main90084-14006iAXUH7#,GSU7#202002-202410

69296CSCREW, DOOR INSIDE HANDLE

main69296-0T010iAXUH7#,GSU7#202002-202210

main90148-50006iAXUH7#,TXUA75..LHD¥60202210-202410

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0E080iAXUH7#,GSU7#202002-202410

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0E070iAXUH7#,GSU7#202002-202410

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010iAXUH7#,GSU7#¥120202002-202410

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02030iAXUH7#,GSU7#¥760202002-202410

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0E090iAXUH7#,GSU7#202002-202410

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0E090iAXUH7#,GSU7#202002-202410

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0E090iAXUH7#,GSU7#202002-202410

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0E090iAXUH7#,GSU7#202002-202410

90148A0017

main90148-A0017

90148A0022

main90148-A0022

30 parts on this diagram · 1 diagram in section
