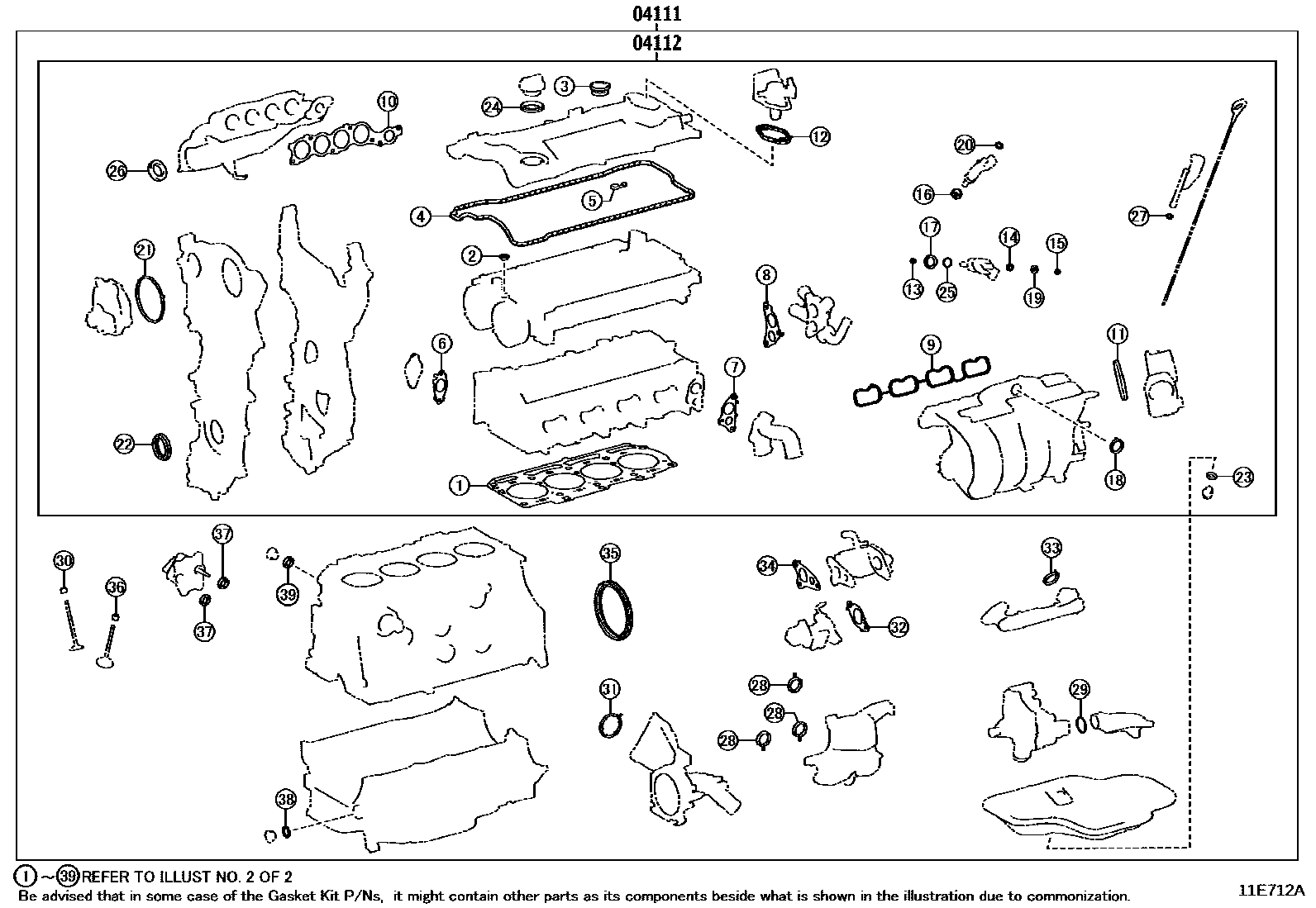

Toyota HIGHLANDER/KLUGER — ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0P203i2GRFKS..GSU7#202003-202205

sub04111-0P204

main04111-0P204i2GRFKS..GSU7#202205-202210

main04111-F0040iA25AFXS..AXUH7#202002-202110

sub04111-F0041

main04111-F0140iA25AFXS..AXUH7#202110-202112

sub04111-F0142

main04111-F0142iA25AFXS..AXUH70..LIMD202112-202410

main04111-F0160iT24AFTS..TXUA7#202210-202312

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0P202i2GRFKS..GSU7#202003-202205

sub04112-0P203

main04112-0P203i2GRFKS..GSU7#202205-202210

main04112-F0020iA25AFXS..AXUH7#202002-202112

sub04112-F0022

main04112-F0022iA25AFXS..AXUH78..RHD202112-202410

main04112-F0090iT24AFTS..TXUA7#202210-202312

2 parts on this diagram · 8 diagrams in section
