Toyota HIGHLANDER/KLUGER — DECK BOARD & DECK TRIM COVER

0001 1 0003 1 0004 1

58387BPLATE, REAR FLOOR FINISH

main58387-0E090-C0iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202410

BLACK,TRIM1#,2#,4#

main58387-0E090-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

58387FCLIP, REAR FLOOR FINISH PLATE

main62489-0E010iAXUH7#,GSU7#¥100202002-202410

58409ABOARD SUB-ASSY, DECK, NO.3

main58409-0E070-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main58409-0E070-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

58410BBOARD ASSY, DECK

main58410-0E080-C0iAXUH78..XLE..EUR;AXUH7#..LHD..LIMD202002-202411

BLACK,TRIM1#,2#

main58410-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202411

BLACK,TRIM1#,2#,4#

main58410-0E090-C0iTXUA7#202003-202410

BLACK,TRIM1#,2#,4#

main58410-0E091-C0iAXUH78..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202411

BLACK,TRIM1#,2#,4#

main58410-0E091-C0iAXUH78..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202411

BLACK,TRIM1#,2#

58416FBRACKET, DECK BOARD, NO.1

main58416-33020-C1iTXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD202002-202312

BLACK,TRIM1#,2#,4#

sub58416-33020¥400

main58416-33020-C1iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

sub58416-33020¥400

58441LCOVER, BATTERY SERVICE HOLE

main58441-0E040-C0iAXUH70..LIMD202002-202410

BLACK,TRIM1#,2#,4#

main58441-0E040-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

58792FSUPPORT, JACK CARRIER

main58792-0E040iAXUH7#,TXUA75..LHD202002-202410

62627DCOVER, SIDE TRIM, RH

main62627-0E040-C1iGSU7#..LE..ARL202012-202210

BLACK,TRIM1#,2#

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-0E060-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main64712-0E060-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-0E060-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

main64713-0E060-C0iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202311

BLACK,TRIM1#,2#

64714HCOVER, DECK SIDE TRIM, NO.1

main64714-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main64714-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

64715ECOVER, DECK SIDE TRIM, NO.2

main64715-0E080-C0iTXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD202002-202410

BLACK,TRIM1#,2#,4#

main64715-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

64716DCOVER, DECK TRIM, REAR

main64716-0E030-C0iAXUH78..XLE..EUR;AXUH7#..LHD..LIMD202002-202410

BLACK,TRIM1#,2#,4#

main64716-0E030-C0iAXUH78..ARL,EUR;AXUH7#..LIMD..GCC202002-202311

BLACK,TRIM1#,2#

main64716-0E050-C0iTXUA7#..ARL202003-202312

BLACK,TRIM1#,2#,4#

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-48010iAXUH78,TXUA7#;AXUH70..LE,XLE¥490202002-202410

64718DCOVER, DECK TRIM SERVICE HOLE

main64718-0E040-C0iAXUH78..EUR;AXUH7#..LIMD..GCC202002-202210

BLACK,TRIM1#,2#

main64718-0E040-C0iAXUH78..EUR;AXUH7#..LIMD..GCC202002-202210

BLACK,TRIM1#,2#,4#

main64718-0E040-C0iAXUH78,GSU7#..ARL,RUS202003-202410

BLACK

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-48020-C1iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

main64725-48020-C1iGSU75..LE..RUS;AXUH78..ARL,EUR;AXUH78..LIMD..GCC;AXUH70,GSU7#..LIMD202002-202311

BLACK,TRIM1#,2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0E120-C0iGSU75202003-202010

BLACK,TRIM1#,2#,4#

sub64730-0E121

main64730-0E121-C0iGSU7#202011-202312

BLACK,TRIM1#,2#,4#

main64730-0E130-C0iAXUH7#..LE,XLE202002-202008

BLACK,TRIM1#,2#,4#

sub64730-0E131

main64730-0E130-C0iAXUH7#..LIMD202002-202008

BLACK,TRIM1#,2#

sub64730-0E131

main64730-0E131-C0iAXUH7#..(LE,XLE)..GCC202009-202311

BLACK,TRIM1#,2#

main64730-0E131-C0iAXUH78..XLE..EUR;AXUH7#..LHD..LIMD202009-202410

BLACK,TRIM1#,2#,4#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-0E040-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main64735-0E040-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0E130-C0iAXUH7#..LE,XLE202002-202010

BLACK,TRIM1#,2#,4#

sub64740-0E131

main64740-0E130-C0iAXUH7#..LE,XLE202002-202008

BLACK,TRIM1#,2#

sub64740-0E131

main64740-0E131-C0iAXUH78..RHD..EUR;AXUH78,TXUA7#..LE..ARL202009-202410

BLACK,TRIM1#,2#,4#

main64740-0E131-C0iAXUH7#..(LE,XLE)..GCC202009-202311

BLACK,TRIM1#,2#

main64740-0E140-C0iGSU75..LIMD202003-202010

BLACK,TRIM1#,2#,4#

sub64740-0E141

main64740-0E141-C0iTXUA75..LIMD..RUS202210-202312

AUDIO-12.3INCH T2 JBL11SPEAKER,BLACK,TRIM1#,2#,4#

main64740-0E141-C0iAXUH7#..LHD..LIMD202011-202312

BLACK,TRIM1#,2#,4#

main64740-0E141-C0iAXUH78..LIMD..EUR202011-202210

AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM1#,2#,4#

main64740-0E141-C0iAXUH78..LIMD..EUR202011-202210

AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,BLACK,TRIM1#,2#,4#

main64740-0E141-C0iAXUH78,TXUA7#..LIMD..(ARL,RUS)202311

AUDIO-12.3INCH JBL11SPEAKER,BLACK,TRIM1#,2#,4#

64742CBOX, DECK SIDE TRIM, LH

main64742-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202210

BLACK,TRIM1#,2#

main64742-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202210

BLACK,TRIM1#,2#,4#

main64742-0E080-C0iAXUH78,GSU7#..LE..(ARL,RUS)202003-202410

BLACK

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main62489-0E010iAXUH7#,GSU7#¥100202002-202410

64910JCOVER ASSY, TONNEAU

main64910-0E090-C0iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202410

BLACK,TRIM1#,2#,4#

main64910-0E090-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

64974COVER, DECK TRIM POCKET

main64974-0E010-C1iAXUH78..(LE,XLE)..GCC;AXUH70,GSU7#..(LE,XLE)..(ARL,GCC)202002-202410

BLACK,TRIM1#,2#,4#

main64974-0E010-C1iAXUH78..(LE,XLE)..GCC;AXUH70,GSU7#..(LE,XLE)..(ARL,GCC)202002-202311

BLACK,TRIM1#,2#

64993BOX, DECK FLOOR, REAR

main64993-0E170-C0iAXUH78..EUR;AXUH7#..LIMD..GCC202002-202210

BLACK,TRIM1#,2#,4#

main64993-0E170-C0iAXUH7#..(LE,XLE)..GCC202002-202210

BLACK,TRIM1#,2#

main64993-0E170-C0iAXUH78,GSU7#..ARL,RUS202003-202411

BLACK

main64993-0E171-C0iAXUH7#..(LE,XLE)..GCC202411

BLACK,TRIM1#,2#

main64993-0E171-C0iAXUH7#..(LE,XLE)..GCC202411

BLACK,TRIM1#,2#,4#

66310HHOOK ASSY, ROPE

main66310-30011-C1iAXUH78..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202311-202410

BLACK,TRIM1#,2#,4#

sub66310-30011¥1,750

main66310-30011-C1iAXUH7#..(LE,XLE)..GCC202311

BLACK,TRIM1#,2#

sub66310-30011¥1,750

main66311-0E010-C2iAXUH7#..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202002-202312

BLACK,TRIM1#,2#,4#

main66311-0E010-C2iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

66311HOOK, ROPE

main66311-0E010-C2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS202002-202311

BLACK,TRIM1#,2#

main66311-0E010-C2iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

7104

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-0E030-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main73297-0E030-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73297-0E030-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main73297-0E030-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

7403

624890E010CLIP, MAP LAMP RETAINER

main62489-0E010¥100

9008011699

main90080-11699¥110

9008016104

main90080-16104

9008017244

main90080-17244¥80

9011906A44

main90119-06A44¥60

9016840093

main90168-40093¥70

9046705171

main90467-05171¥60

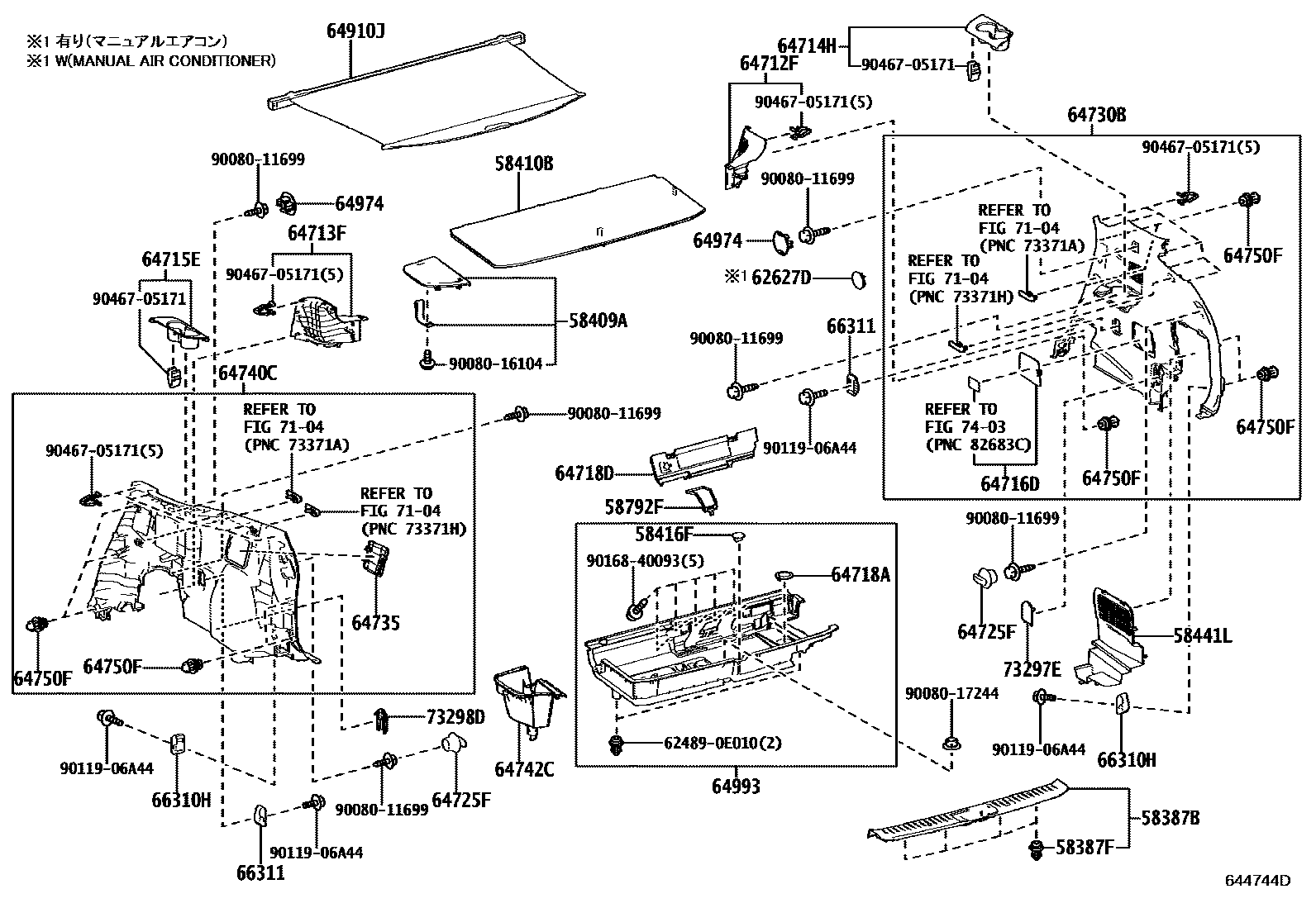

37 parts on this diagram · 3 diagrams in section
