Toyota HIGHLANDER/KLUGER — BATTERY & BATTERY CABLE

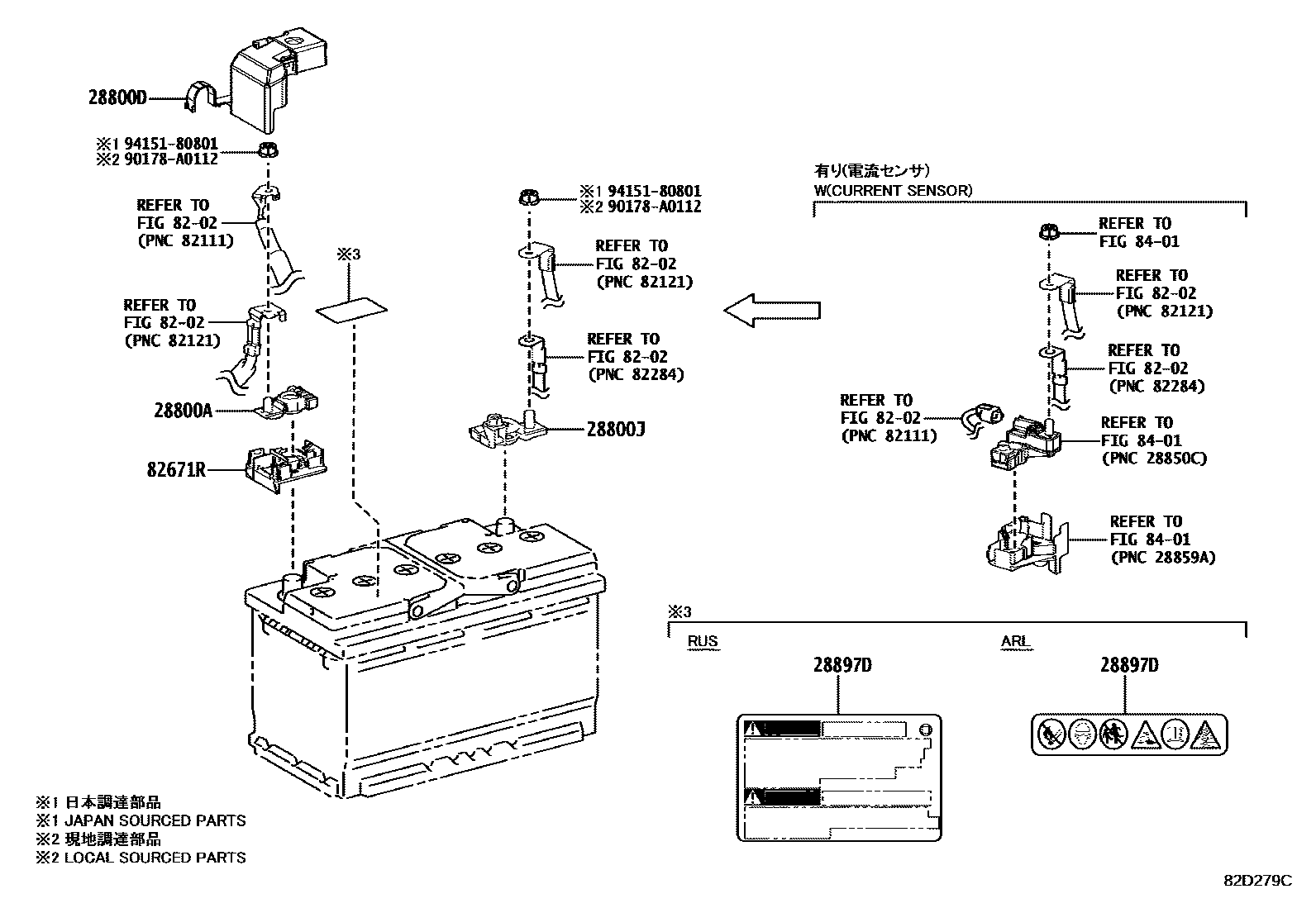

0001 1 0002 112V BATTERY 0003 1HV BATTERY 1/2 0004 1HV BATTERY 2/2 0005 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05072iT24AFTS..TXUA75..RUS¥850202003-202312

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0E010iA25AFXS..AXUH7#..LHD202002-202410

(L)

main82821-33440iT24AFTS..TXUA7#¥650202003-202312

main82821-48020iA25AFXS..AXUH78..RHD¥430202002-202410

(J)

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061i2GRFKS..GSU75..RUS¥850202003-202311

28897DLABEL, BATTERY CAUTION

main28897-0P010iA25AFXS,T24AFTS..AXUH78,TXUA7#..ARL¥110202011-202312

main28897-0P020iT24AFTS..TXUA75..RUS202003-202311

main28897-36040iA25AFXS..AXUH7#..GCC202002-202410

main28897-F0020iT24AFTS..TXUA75..RUS202210-202311

GEORGIA SPEC

main28897-F0020iA25AFXS..AXUH78..EUR202210-202404

8202

82671RSTOPPER, BATTERY TERMINAL

main82671-33100iGSU7#¥360202003-202312

8401

90178A0112

main90178-A0112

9415180801

main94151-80801¥80

9 parts on this diagram · 5 diagrams in section
