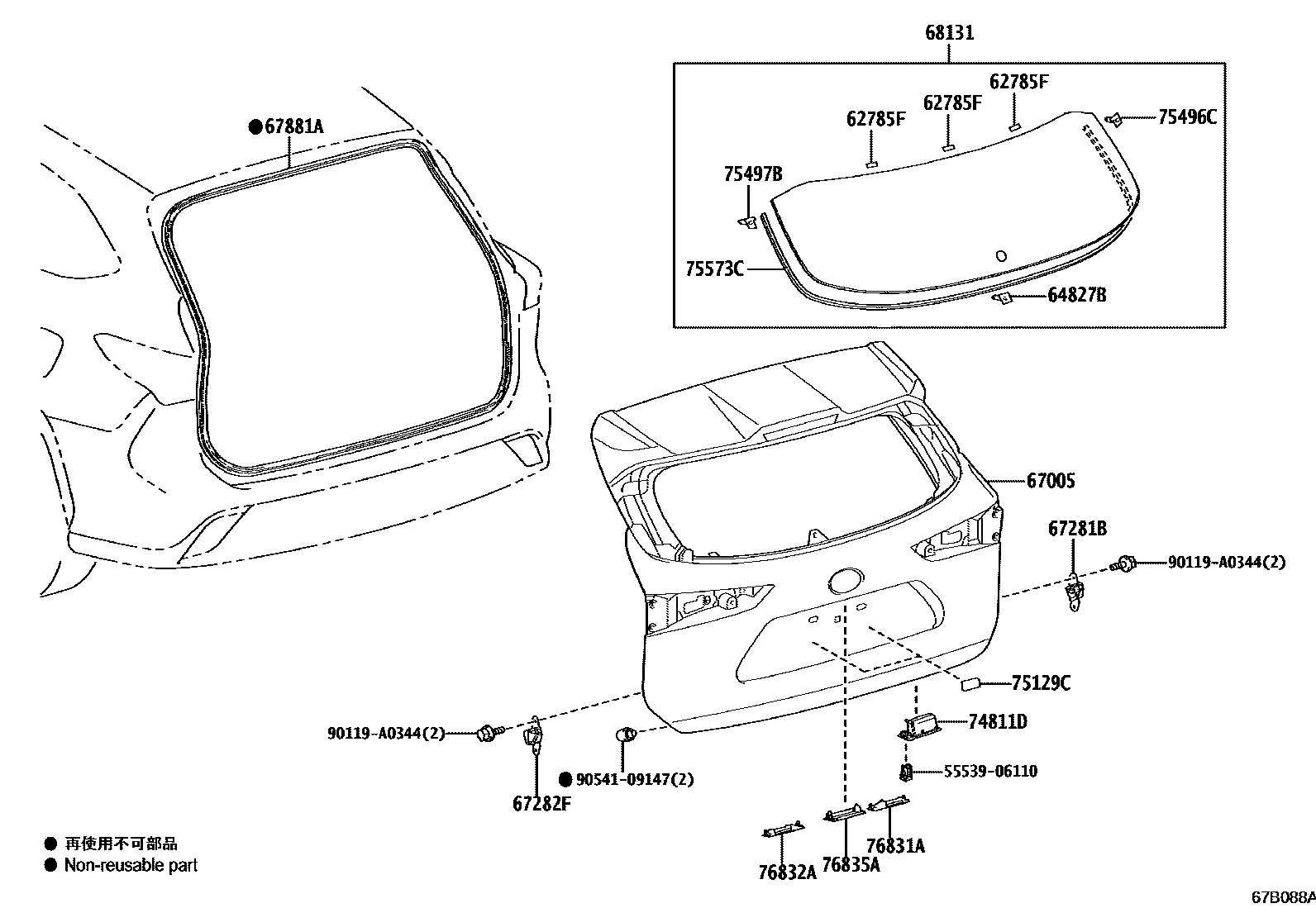

Toyota HIGHLANDER/KLUGER — BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-60030iAXUH7#,GSU7#¥200202002-202410

64827BCLIP, BACK WINDOW GLASS, RH

main64827-0E010iAXUH7#,GSU7#¥310202002-202410

67005PANEL SUB-ASSY, BACK DOOR

main67005-0E540iAXUH7#,GSU7#202002-202210

main67005-0E541iAXUH7#,TXUA75..LHD¥74,900202210-202410

67281BSTOPPER, BACK DOOR, LOWER

main67281-0E050iAXUH7#,GSU7#202002-202410

67282FSTOPPER, BACK DOOR, LWR LH

main67282-0E050iAXUH7#,GSU7#202002-202410

67881AWEATHERSTRIP, BACK DOOR

main67881-0E080iAXUH7#,GSU7#202002-202410

68131GLASS, BACK DOOR

main68105-0E120iAXUH78,TXUA7#..ARL¥44,200202003-202312

main68105-0E130iAXUH7#..GCC202002-202210

sub68105-0E131

main68105-0E131iAXUH7#..GCC202210-202311

REAR SIDE GLASS-GREEN

main68105-0E131iAXUH78..LHD..EUR202210-202311

AZERBAIJAN SPEC&REAR SIDE GLASS-GREEN

main68105-0E131iAXUH70..LIMD202311-202410

main68105-0E140iAXUH78..LHD..EUR202011-202312

74811DHANDLE, DOOR PULL

main74811-0E030-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main74811-0E030-C0iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010iAXUH7#,GSU7#¥640202002-202410

75496CCLIP, BACK WINDOW OUTSIDE MOULDING, RH

main75496-0E010iAXUH7#,GSU7#¥260202002-202410

75497BCLIP, BACK WINDOW OUTSIDE MOULDING, LH

main75497-0E010iAXUH7#,GSU7#¥260202002-202410

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-0E050iAXUH7#,GSU7#¥600202002-202410

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-0E030iAXUH7#,GSU7#202002-202410

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-0E030iAXUH7#,GSU7#202002-202410

76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1

main76835-0E010iAXUH7#,GSU7#¥540202002-202410

5553906110COVER, SPARE SWITCH HOLE

main55539-06110

90119A0344

main90119-A0344

9054109147

main90541-09147¥100

18 parts on this diagram · 2 diagrams in section
