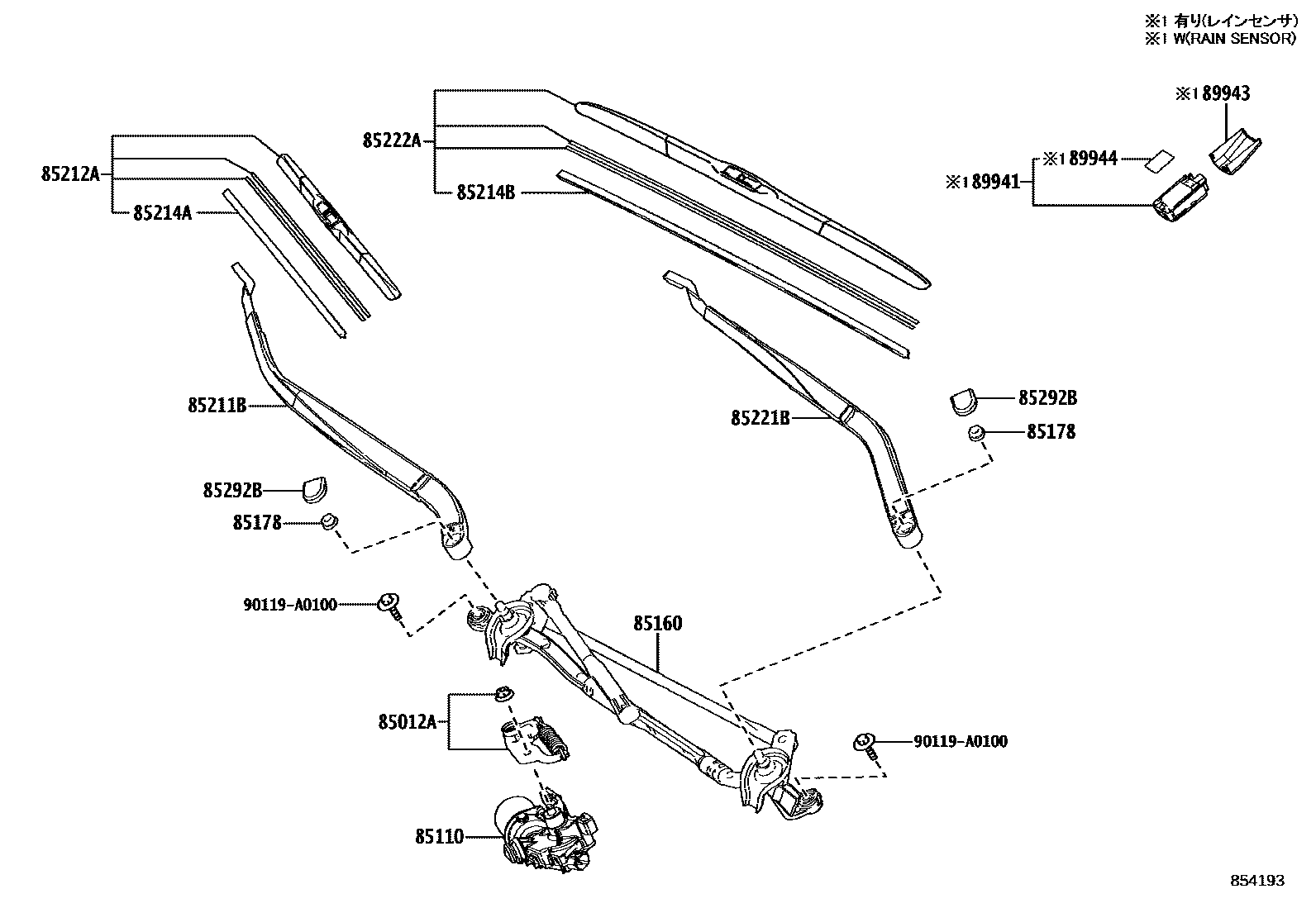

Toyota HIGHLANDER/KLUGER — WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iAXUH70..LIMD¥0202311-202410

main85012-50010iAXUH70..LE,XLE;AXUH78,TXUA75..LHD¥0202311

main85012-50010iAXUH7#,TXUA75..LHD¥0202210-202311

main85012-50010iAXUH7#,GSU75..LHD¥0202002-202210

main85012-58030iAXUH78,TXUA7#..RHD¥0202210-202312

main85012-58030iAXUH78,GSU7#..RHD¥0202011-202210

main85012-58030iAXUH78,TXUA7#..RHD¥0202401

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0E110iAXUH78..RHD..EUR202011-202210

main85110-0E110iAXUH78..RHD..EUR202210-202312

main85110-0E110iAXUH78..RHD..EUR202401

main85110-0E120iAXUH70..LIMD202311-202410

main85110-0E120iAXUH7#,TXUA75..LHD202210-202311

main85110-0E120iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311

main85110-0E120iAXUH7#,GSU75..LHD202002-202210

main85110-0E130iAXUH78,TXUA7#..ARL202401

main85110-0E130iAXUH78,TXUA7#..ARL202210-202312

main85110-0E130iAXUH78,GSU7#..ARL202012-202210

85160LINK ASSY, WINDSHIELD WIPER

main85150-0E110iAXUH70..LIMD202311-202410

main85150-0E110iAXUH7#,GSU75..LHD202002-202210

main85150-0E110iAXUH7#,TXUA75..LHD202210-202311

main85150-0E110iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311

main85150-0E120iAXUH78,TXUA7#..ARL202210-202312

main85150-0E120iAXUH78,GSU7#..ARL202012-202210

main85150-0E120iAXUH78,TXUA7#..ARL202401

main85150-0E130iAXUH78..RHD..EUR202011-202210

main85150-0E130iAXUH78..RHD..EUR202210-202312

main85150-0E130iAXUH78..RHD..EUR202401

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017iAXUH7#,TXUA75..LHD202210-202311

main90182-A0017iAXUH7#,GSU7#202002-202210

main90182-A0017iAXUH78,TXUA7#..RHD202210-202312

main90182-A0017iAXUH70..LIMD202311-202410

main90182-A0017iAXUH78,TXUA7#;AXUH70..LE,XLE202311

85211BARM, FRONT WIPER, RH

main85211-0E090iAXUH70..LIMD202311-202410

main85211-0E090iAXUH7#,GSU75..LHD202002-202210

main85211-0E090iAXUH7#,TXUA75..LHD202210-202311

main85211-0E090iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311

main85211-0E110iAXUH78,GSU7#..ARL202012-202210

main85211-0E110iAXUH78,TXUA7#..ARL202210-202312

main85211-0E110iAXUH78,TXUA7#..ARL202401

main85211-0E120iAXUH78..RHD..EUR202210-202312

main85211-0E120iAXUH78..RHD..EUR202011-202210

main85211-0E120iAXUH78..RHD..EUR202401

85212ABLADE, FR WIPER, RH

main85212-0E090iAXUH70..LE,XLE;AXUH78,TXUA75..LHD¥2,180202311

main85212-0E090iAXUH7#,GSU75..LHD¥2,180202002-202210

main85212-0E090iAXUH7#,TXUA75..LHD¥2,180202210-202311

main85212-0E090iAXUH70..LIMD¥2,180202311-202410

main85212-0E100iAXUH78,TXUA7#..RHD202401

main85212-0E100iAXUH78,GSU7#..RHD202011-202210

main85212-0E100iAXUH78,TXUA7#..RHD202210-202312

85214ARUBBER, WIPER, RH

main85214-0E130iAXUH7#,TXUA75..LHD202210-202311

main85214-0E130iAXUH7#,GSU75..LHD202002-202210

main85214-0E130iAXUH70..LIMD202311-202410

main85214-0E130iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311

main85214-0E151iAXUH78,TXUA7#..RHD¥990202210-202312

main85214-0E151iAXUH78,GSU7#..RHD¥990202011-202210

main85214-0E151iAXUH78,TXUA7#..RHD¥990202401

85214BRUBBER, WIPER, LH

main85214-0E130iAXUH78,TXUA7#..RHD202401

main85214-0E130iAXUH78,GSU7#..RHD202011-202210

main85214-0E130iAXUH78,TXUA7#..RHD202210-202312

main85214-0E151iAXUH7#,GSU75..LHD¥990202002-202210

main85214-0E151iAXUH70..LIMD¥990202311-202410

main85214-0E151iAXUH70..LE,XLE;AXUH78,TXUA75..LHD¥990202311

main85214-0E151iAXUH7#,TXUA75..LHD¥990202210-202311

85221BARM, FRONT WIPER, LH

main85221-0E110iAXUH7#,TXUA75..LHD202210-202311

main85221-0E110iAXUH7#,GSU75..LHD202002-202210

main85221-0E110iAXUH70..LIMD202311-202410

main85221-0E110iAXUH70..LE,XLE;AXUH78,TXUA75..LHD202311

main85221-0E120iAXUH78,TXUA7#..RHD202210-202312

main85221-0E120iAXUH78,GSU7#..RHD202011-202210

main85221-0E120iAXUH78,TXUA7#..RHD202401

85222ABLADE, FR WIPER, LH

main85222-0E090iAXUH7#,TXUA75..LHD¥4,290202210-202311

main85222-0E090iAXUH7#,GSU75..LHD¥4,290202002-202210

main85222-0E090iAXUH70..LE,XLE;AXUH78,TXUA75..LHD¥4,290202311

main85222-0E090iAXUH70..LIMD¥4,290202311-202410

main85222-0E100iAXUH78,TXUA7#..RHD202401

main85222-0E100iAXUH78,GSU7#..RHD202011-202210

main85222-0E100iAXUH78,TXUA7#..RHD202210-202312

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010iAXUH7#,GSU7#¥200202002-202210

main85292-AA010iAXUH7#,TXUA75..LHD¥200202210-202311

main85292-AA010iAXUH78,TXUA7#..RHD¥200202210-202312

main85292-AA010iAXUH70..LIMD¥200202311-202410

main85292-AA010iAXUH78,TXUA7#;AXUH70..LE,XLE¥200202311

89941SENSOR, RAIN

main89941-11010iAXUH78..ARL,EUR;AXUH7#..LIMD..GCC¥12,500202002-202110

main89941-33060iGSU7#¥12,500202003-202210

main89941-33060iAXUH78..ARL,EUR;AXUH7#..LIMD..GCC¥12,500202110-202210

main89941-33060iTXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD¥12,500202210-202311

HYBRID SPECIAL EDITION

main89941-33060iAXUH78,TXUA7#..RHD¥12,500202210-202312

main89941-33060iAXUH70..LIMD¥12,500202311-202410

main89941-33060iAXUH78..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS¥12,500202311

89943COVER, RAIN SENSOR

main89943-48030iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS¥400202002-202210

main89943-48030iTXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD¥400202210-202311

HYBRID SPECIAL EDITION

main89943-48030iAXUH78,TXUA7#..RHD¥400202210-202312

main89943-48030iAXUH70..LIMD¥400202311-202410

main89943-48030iAXUH78..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS¥400202311

89944TAPE, RAIN SENSOR

main89944-42020iAXUH7#..LIMD..GCC;AXUH78,GSU7#..ARL,EUR,RUS¥170202002-202210

main89944-42020iTXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD¥170202210-202311

HYBRID SPECIAL EDITION

main89944-42020iAXUH78,TXUA7#..RHD¥170202210-202312

main89944-42020iAXUH70..LIMD¥170202311-202410

main89944-42020iAXUH78..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS¥170202311

90119A0100

main90119-A0100

15 parts on this diagram · 2 diagrams in section
