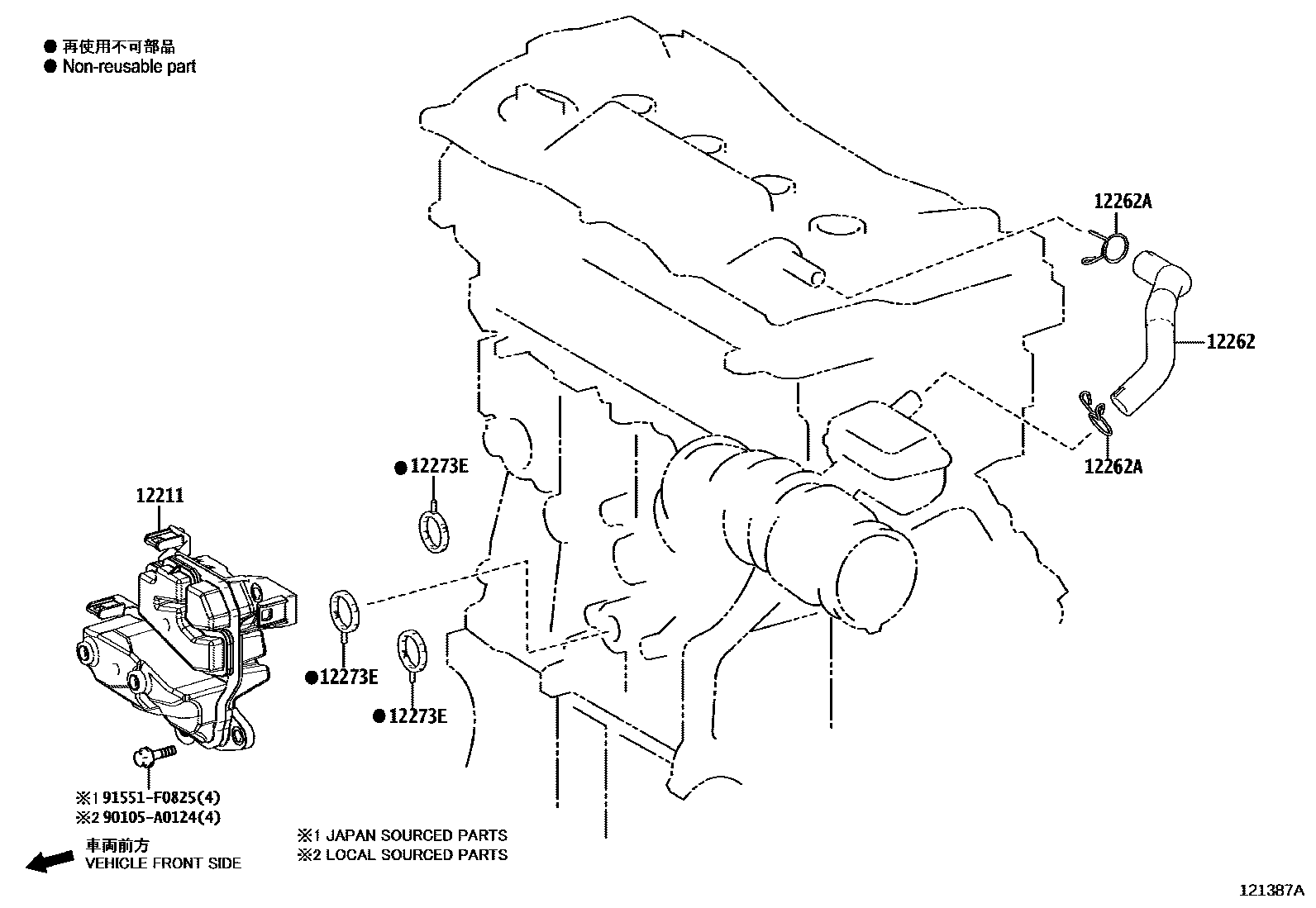

Toyota HIGHLANDER/KLUGER — VENTILATION HOSE

0001 1 0002 1 0003 1

12211CASE, VENTILATION, NO.1

main12211-25010iA25AFXS..AXUH7#¥7,600202002-202007

*636

sub12211-25011¥5,700

main12211-25011iA25AFXS..AXUH7#¥5,700202008-202301

*636

main12211-F0010iA25AFXS..AXUH7#202002-202101

*489

sub12211-F0011

main12211-F0011iA25AFXS..AXUH7#202101-202208

*489

12262HOSE, VENTILATION, NO.2

main12262-25080iA25AFXS..AXUH7#¥1,430202002-202410

main12262-25100iT24AFTS..TXUA7#..ARL¥2,330202210-202312

main12262-31190i2GRFKS..GSU7#¥1,940202003-202210

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-A0028iA25AFXS..AXUH78;A25AFXS..AXUH70..LE,XLE202002-202410

(L)

main90466-A0028i2GRFKS..GSU7#202003-202210

main90467-21004iA25AFXS..AXUH7#¥130202002-202410

(J)

main90467-23002iT24AFTS..TXUA7#..ARL¥90202210-202312

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25AFXS..AXUH7#¥340202002-202208

*489

main12273-24010iA25AFXS..AXUH7#¥340202002-202301

*636

90105A0124

main90105-A0124

91551F0825

main91551-F0825¥80

6 parts on this diagram · 3 diagrams in section
