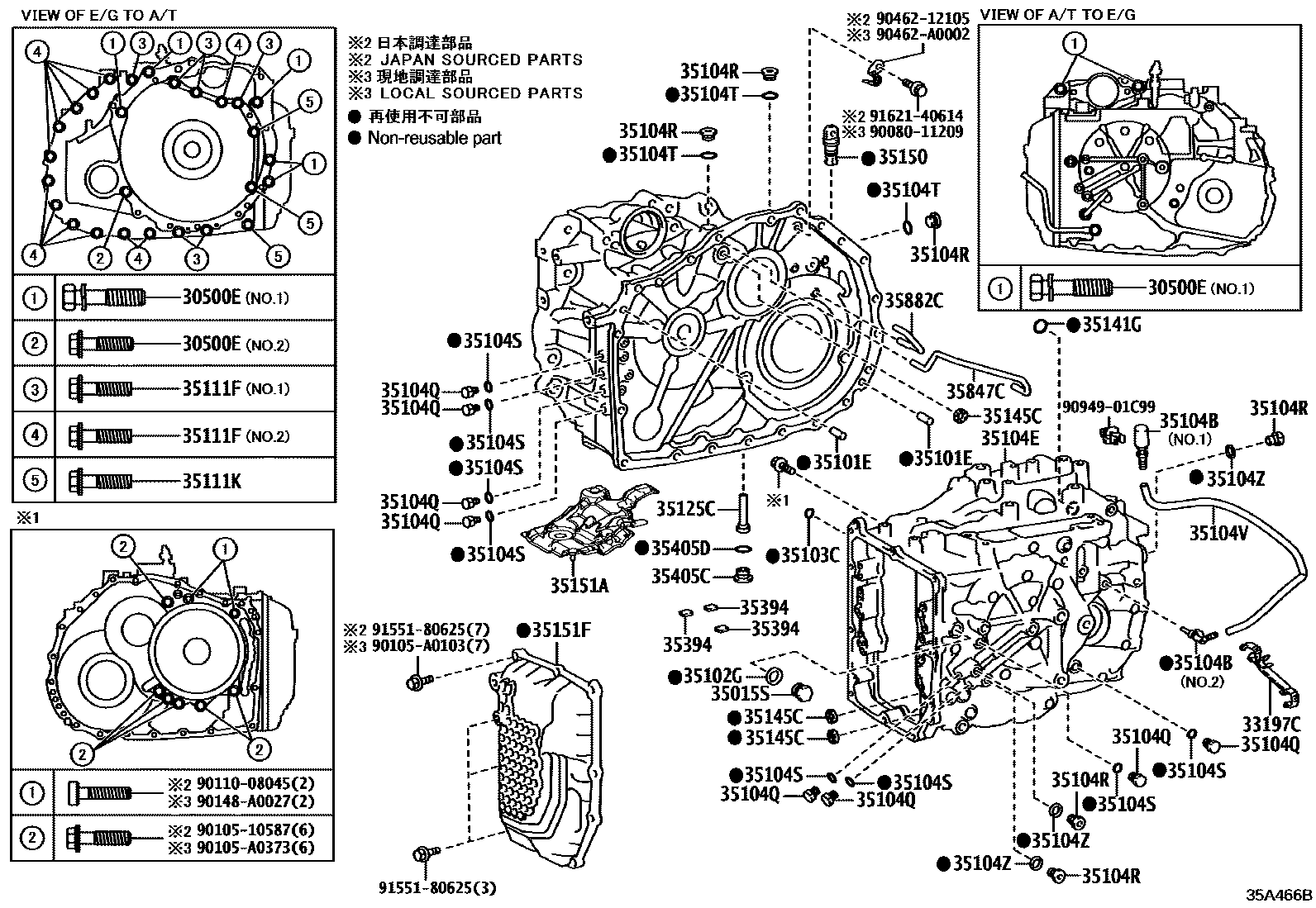

Toyota HIGHLANDER/KLUGER — TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX41-30,(L),NO.2
*12-1.25PX55-30,(L),NO.1
*10-1.25PX41-28,(J),NO.2
*12-1.25PX50-30,NO.1
*12-1.25PX50-30,NO.1
*12-1.25PX50-30,NO.1
*8-1.25PX35-22,NO.3
*8-1.25PX35-22,NO.3
*8-1.25PX35-22,NO.3
*10-1.25PX45-36,NO.2
*10-1.25PX45-36,NO.2
*10-1.25PX45-36,NO.2
*12-1.25PX55-30,(J),NO.1
33197CCLAMP, TRANSMISSION BREATHER
(L)
(J)
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
(J)
TMMWV:REFER 35-01
(L)
TMMWV:REFER 35-01
TMMWV:REFER 35-01
35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
AISIN:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35102GGASKET (FOR TRANSAXLE REAR COVER )
(J)
TMMWV:REFER 35-01
TMMWV:REFER 35-01
(L)
TMMWV:REFER 35-01
35103CRING, O
35104BPLUG, BREATHER, NO.1 (ATM)
NO.1
NO.1
NO.1
NO.1
NO.2,*228
(J),NO.2
NO.2,*228
NO.2,*228
NO.2,TMMWV:SEE 35-01
NO.2,TMMWV:SEE 35-01
(L),NO.2
NO.2,TMMWV:SEE 35-01
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
(J)
NO.1
NO.1
NO.1
NO.1,TMMWV:SEE 35-01
(L)
NO.1,TMMWV:SEE 35-01
NO.1,TMMWV:SEE 35-01
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
NO.1
(J)
NO.1
NO.1
NO.1,TMMWV:SEE 35-01
(L)
NO.1,TMMWV:SEE 35-01
NO.1,TMMWV:SEE 35-01
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
NO.1,TMMWV:SEE 35-01
(L)
NO.1,TMMWV:SEE 35-01
NO.1,TMMWV:SEE 35-01
NO.1,*228
NO.1,*228
(J)
NO.1,*228
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
NO.1
35104VHOSE (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX40-22,(L),NO.1
*8-1.25PX40-22,NO.1,TMMWV:SEE 35-01
*8-1.25PX40-22,NO.1,TMMWV:SEE 35-01
*8-1.25PX40-22,NO.1,TMMWV:SEE 35-01
*8-1.25PX35-22,NO.2,*228
*8-1.25PX35-22,NO.2
*8-1.25PX35-22,NO.2,*228,NO.2,TMMWV:SEE 35-01
*8-1.25PX35-22,NO.2,TMMWV:SEE 35-01
*8-1.25PX35-22,NO.2,TMMWV:SEE 35-01
*8-1.25PX35-22,NO.2,*228
*8-1.25PX40-22,NO.1,*228
*8-1.25PX40-22,NO.3,TMMWV:SEE 35-01
*8-1.25PX40-22,NO.3,TMMWV:SEE 35-01
*8-1.25PX40-22,NO.1,*228
*8-1.25PX40-22,(J),NO.1
*8-1.25PX40-22,NO.3,TMMWV:SEE 35-01
*8-1.25PX40-22,NO.1,*228
35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
*8-1.25PX40-22
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
(L)
AISIN:REFER 35-01
(J)
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN:REFER 35-01
AISIN AW:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
35145CGASKET, TRANSAXLE CASE
(L)
(J)
(L)
(J)
35150PLUG ASSY, TRANSMISSION CASE
35151ACOVER, TRANSAXLE CASE, UPPER
35151FCOVER, TRANSMISSION CASE, SIDE
TMMWV:SEE:35-01,*742
AISIN:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
TMMWV:SEE:35-01,*742
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
AISIN:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW
35405DRING, O (FOR STRAIGHT SCREW PLUG)
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN:REFER 35-01
(J)
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
(L)
35847CTUBE, TRANSMISSION LUBE APPLY
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
AISIN:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN:REFER 35-01
9008011209
main90080-11209
9010510587
90105A0103
main90105-A0103
90105A0373
main90105-A0373
9011008045
90148A0027
main90148-A0027
9046212105
90462A0002
main90462-A0002
9094901C99
9155180625
9162140614
38 parts on this diagram · 3 diagrams in section
