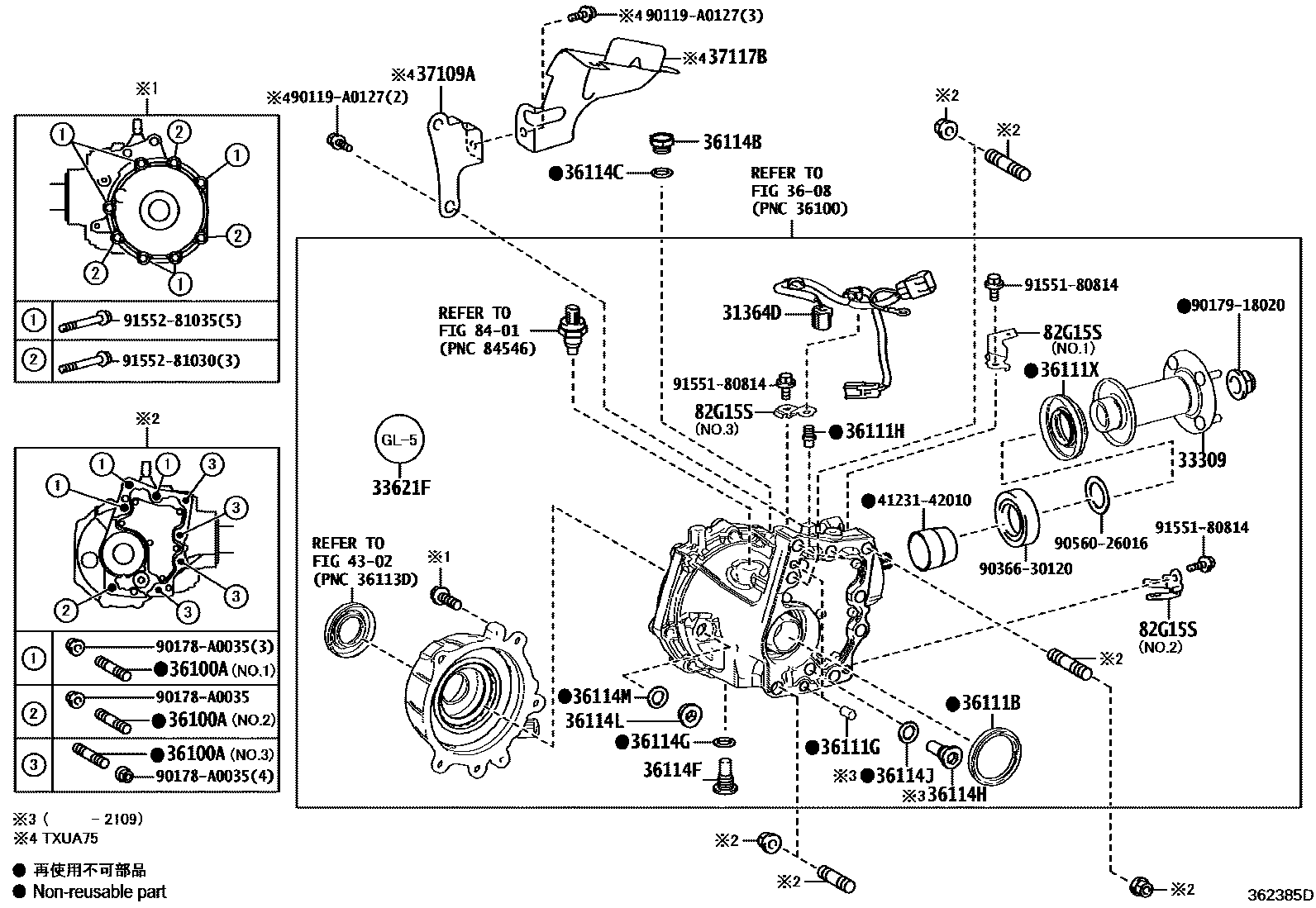

Toyota HIGHLANDER/KLUGER — TRANSFER CASE & EXTENSION HOUSING
31364DWIRE, CLUTCH CONTROL SOLENOID
33309FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION
33621FLABEL, TRANSAXLE OIL INFORMATION
3608
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=30 & 22,L=64
S=30 & 22,L=64,NO.3
S=22 & 22,L=73,NO.1:REFER ILLUST.
S=22 & 22,L=73,NO.1
S=22 & 22,L=53,NO.2:REFER ILLUST.
S=22 & 22,L=53,NO.2
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111XSEAL, OIL (FOR TRANSFER CASE), NO.2
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36114LPLUG, FILLER(FOR TRANSFER)
NO.1
NO.2
36114MGASKET (FOR TRANSFER FILLER PLUG)
37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR
37117BINSULATOR, PROPELLER SHAFT HEAT
4302
82G15SBRACKET, WIRING HARNESS CLAMP
NO.1:REFER ILLUST.
NO.1
NO.2:REFER ILLUST.
NO.2
NO.3:REFER ILLUST.
8401
4123142010SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
90119A0127
main90119-A0127
90178A0035
main90178-A0035
9017918020
9036630120
9056026016
9155180814
9155281030
9155281035
31 parts on this diagram · 1 diagram in section
