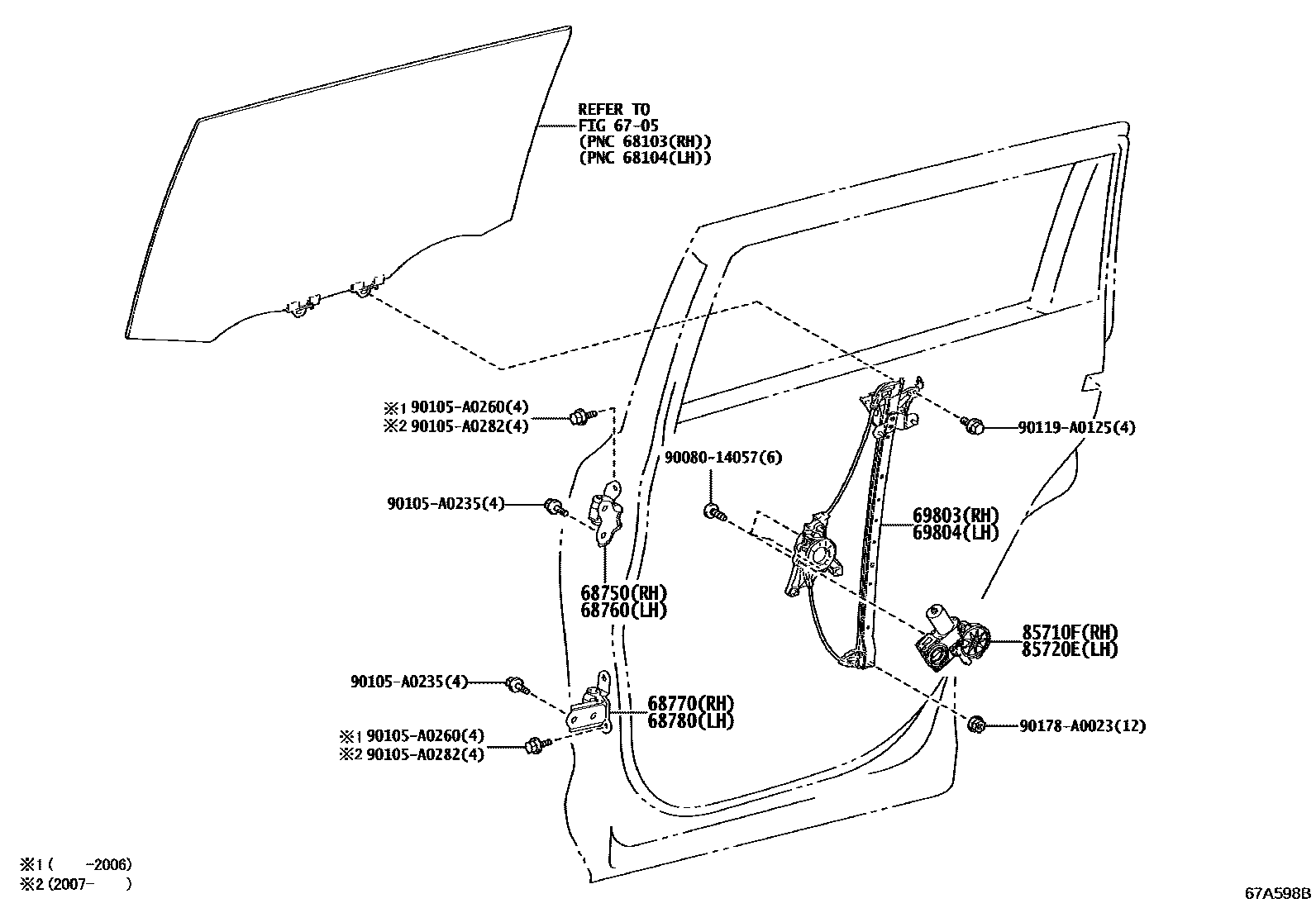

Toyota HIGHLANDER/KLUGER — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iAXUH7#,GSU7#¥2,030202002-202410

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iAXUH7#,GSU7#202002-202410

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-06050iAXUH7#,GSU7#202002-202410

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-06050iAXUH7#,GSU7#202002-202410

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-0E110iAXUH7#,GSU7#202002-202107

sub69801-0E111

main69801-0E111iAXUH7#,GSU7#202108-202410

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-0E110iAXUH7#,GSU7#202002-202107

sub69802-0E111

main69802-0E111iAXUH7#,GSU7#202108-202410

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0R020iAXUH7#,GSU7#202002-202410

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0R080iAXUH7#,GSU7#202002-202410

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90105A0282

main90105-A0282

90119A0125

main90119-A0125

90178A0023

main90178-A0023

15 parts on this diagram · 1 diagram in section
