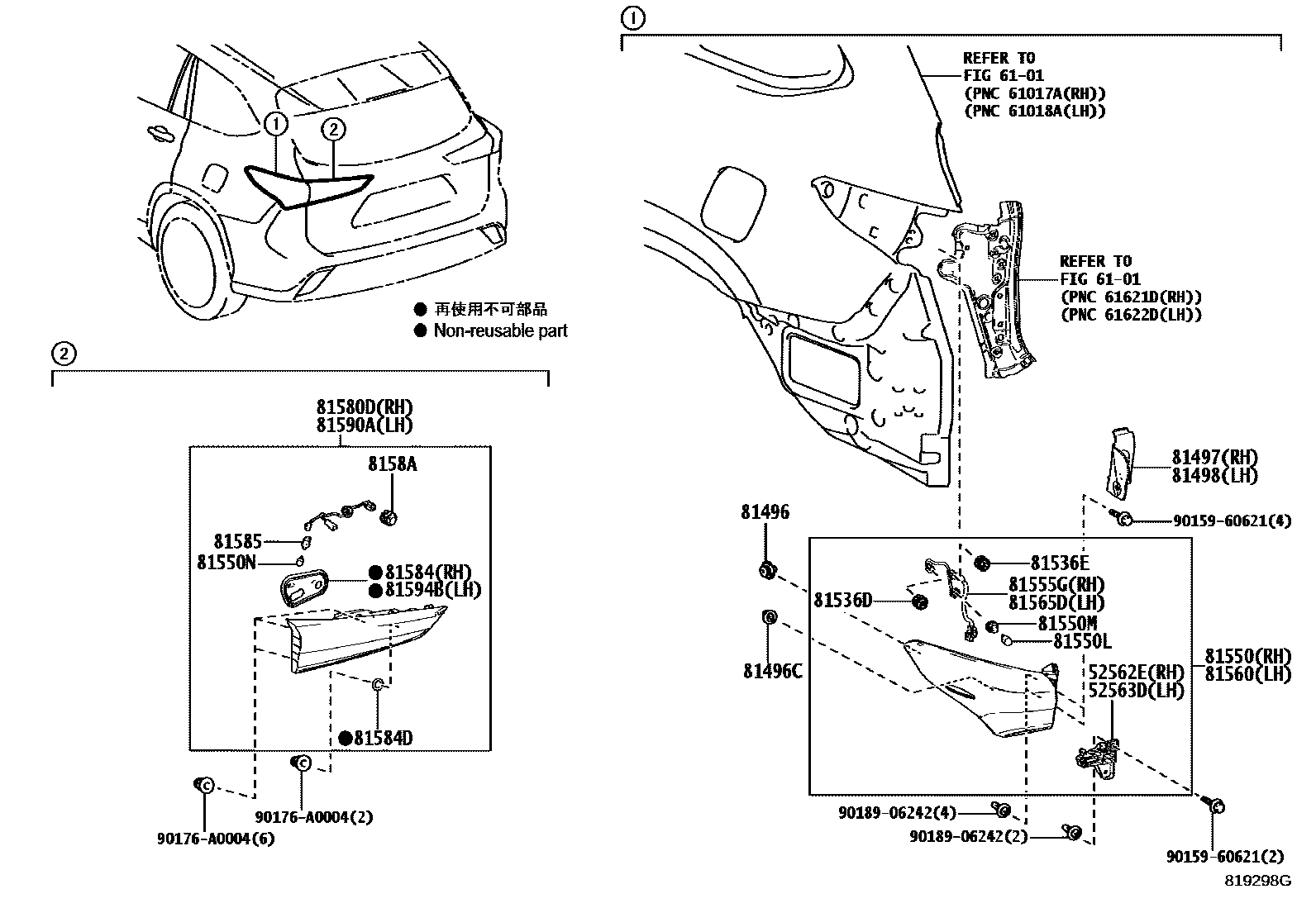

Toyota HIGHLANDER/KLUGER — REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0E030iAXUH7#,GSU7#¥1,570202002-202210

main52562-0E030iAXUH7#,TXUA75..LHD¥1,570202210-202311

main52562-0E030iAXUH78,TXUA7#..RHD¥1,570202210-202312

main52562-0E030iAXUH70..LIMD¥1,570202311-202410

main52562-0E030iAXUH78,TXUA7#;AXUH70..LE,XLE¥1,570202311

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0E030iAXUH7#,GSU7#202002-202210

main52563-0E030iAXUH7#,TXUA75..LHD202210-202311

main52563-0E030iAXUH78,TXUA7#..RHD202210-202312

main52563-0E030iAXUH70..LIMD202311-202410

main52563-0E030iAXUH78,TXUA7#;AXUH70..LE,XLE202311

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-50010iAXUH7#,GSU7#¥90202002-202210

main81496-50010iAXUH7#,TXUA75..LHD¥90202210-202311

main81496-50010iAXUH78,TXUA7#..RHD¥90202210-202312

main81496-50010iAXUH70..LIMD¥90202311-202410

main81496-50010iAXUH78,TXUA7#;AXUH70..LE,XLE¥90202311

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0E020iAXUH7#,GSU7#202002-202210

main81496-0E020iAXUH7#,TXUA75..LHD202210-202311

main81496-0E020iAXUH78,TXUA7#..RHD202210-202312

main81496-0E020iAXUH70..LIMD202311-202410

main81496-0E020iAXUH78,TXUA7#;AXUH70..LE,XLE202311

81497COVER, REAR COMBINATION LAMP, RH

main81497-0E030iAXUH7#,GSU7#¥1,490202002-202210

main81497-0E030iAXUH7#,TXUA75..LHD¥1,490202210-202311

main81497-0E030iAXUH78,TXUA7#..RHD¥1,490202210-202312

main81497-0E030iAXUH70..LIMD¥1,490202311-202410

main81497-0E030iAXUH78,TXUA7#;AXUH70..LE,XLE¥1,490202311

81498COVER, REAR COMBINATION LAMP, LH

main81498-0E030iAXUH7#,GSU7#202002-202210

main81498-0E030iAXUH7#,TXUA75..LHD202210-202311

main81498-0E030iAXUH78,TXUA7#..RHD202210-202312

main81498-0E030iAXUH70..LIMD202311-202410

main81498-0E030iAXUH78,TXUA7#;AXUH70..LE,XLE202311

81536DLED, TAILLAMP

main8158A-0D610iAXUH7#,GSU7#¥5,700202002-202210

main8158A-0D610iAXUH7#,TXUA75..LHD¥5,700202210-202311

main8158A-0D610iAXUH78,TXUA7#..RHD¥5,700202210-202312

81536ELED, STOP LAMP

main8158A-0D610iAXUH7#,GSU7#¥5,700202002-202210

main8158A-0D610iAXUH7#,TXUA75..LHD¥5,700202210-202311

main8158A-0D610iAXUH78,TXUA7#..RHD¥5,700202210-202312

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E240iAXUH7#,GSU7#202002-202210

main81550-0E240iAXUH7#,TXUA75..LHD202210-202311

main81550-0E240iAXUH78,TXUA7#..RHD202210-202312

main81550-0E370iAXUH70..LIMD202311-202410

main81550-0E370iAXUH78,TXUA7#;AXUH70..LE,XLE202311

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iAXUH7#,GSU7#¥300202002-202210

12V 21W,AMBER

main90981-15021iAXUH7#,TXUA75..LHD¥300202210-202311

12V 21W,AMBER

main90981-15021iAXUH78,TXUA7#..RHD¥300202210-202312

12V 21W,AMBER

main90981-15021iAXUH70..LIMD¥300202311-202410

12V 21W,AMBER

main90981-15021iAXUH78,TXUA7#;AXUH70..LE,XLE¥300202311

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60028iAXUH7#,GSU7#¥610202002-202210

main90075-60028iAXUH7#,TXUA75..LHD¥610202210-202311

main90075-60028iAXUH78,TXUA7#..RHD¥610202210-202312

81550NBULB, BACK UP LAMP

main90981-11059iAXUH7#,GSU7#¥200202002-202210

12V 16W

main90981-11059iAXUH7#,TXUA75..LHD¥200202210-202311

12V 16W

main90981-11059iAXUH78,TXUA7#..RHD¥200202210-202312

12V 16W

main90981-11059iAXUH70..LIMD¥200202311-202410

12V 16W

main90981-11059iAXUH78,TXUA7#;AXUH70..LE,XLE¥200202311

12V 16W

81555GCORD, REAR COMBINATION LAMP, RH

main81555-0E230iAXUH7#,GSU7#202002-202210

main81555-0E230iAXUH7#,TXUA75..LHD202210-202311

main81555-0E230iAXUH78,TXUA7#..RHD202210-202312

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E240iAXUH7#,GSU7#202002-202210

main81560-0E240iAXUH7#,TXUA75..LHD202210-202311

main81560-0E240iAXUH78,TXUA7#..RHD202210-202312

main81560-0E370iAXUH70..LIMD202311-202410

main81560-0E370iAXUH78,TXUA7#;AXUH70..LE,XLE202311

81565DCORD, REAR COMBINATION LAMP, LH

main81555-0E230iAXUH7#,GSU7#202002-202210

main81555-0E230iAXUH7#,TXUA75..LHD202210-202311

main81555-0E230iAXUH78,TXUA7#..RHD202210-202312

81580DLAMP ASSY, REAR, RH

main81580-0E180iAXUH7#,GSU7#202002-202210

main81580-0E180iAXUH7#,TXUA75..LHD202210-202311

main81580-0E180iAXUH78,TXUA7#..RHD202210-202312

main81580-0E290iAXUH70..LIMD202311-202410

main81580-0E290iAXUH78,TXUA7#;AXUH70..LE,XLE202311

81584PACKING, REAR LAMP RH

main81582-0E180iAXUH7#,GSU7#202002-202210

main81582-0E180iAXUH7#,TXUA75..LHD202210-202311

main81582-0E180iAXUH78,TXUA7#..RHD202210-202312

81584DGASKET, REAR LAMP

main81584-0E180iAXUH7#,GSU7#202002-202210

main81584-0E180iAXUH7#,TXUA75..LHD202210-202311

main81584-0E180iAXUH78,TXUA7#..RHD202210-202312

81585SOCKET & WIRE, REAR LAMP

main81585-0E120iAXUH7#,GSU7#202002-202210

main81585-0E120iAXUH7#,TXUA75..LHD202210-202311

main81585-0E120iAXUH78,TXUA7#..RHD202210-202312

8158ALED, REAR LAMP

main8158A-0D610iAXUH7#,GSU7#¥5,700202002-202210

main8158A-0D610iAXUH7#,TXUA75..LHD¥5,700202210-202311

main8158A-0D610iAXUH78,TXUA7#..RHD¥5,700202210-202312

81590ALAMP ASSY, REAR, LH

main81590-0E180iAXUH7#,GSU7#¥29,400202002-202210

main81590-0E180iAXUH7#,TXUA75..LHD¥29,400202210-202311

main81590-0E180iAXUH78,TXUA7#..RHD¥29,400202210-202312

main81590-0E290iAXUH70..LIMD202311-202410

main81590-0E290iAXUH78,TXUA7#;AXUH70..LE,XLE202311

81594BPACKING, REAR LAMP LH

main81592-0E180iAXUH7#,GSU7#202002-202210

main81592-0E180iAXUH7#,TXUA75..LHD202210-202311

main81592-0E180iAXUH78,TXUA7#..RHD202210-202312

9015960621

main90159-60621¥60

90176A0004

main90176-A0004

9018906242

main90189-06242¥70

26 parts on this diagram · 2 diagrams in section
