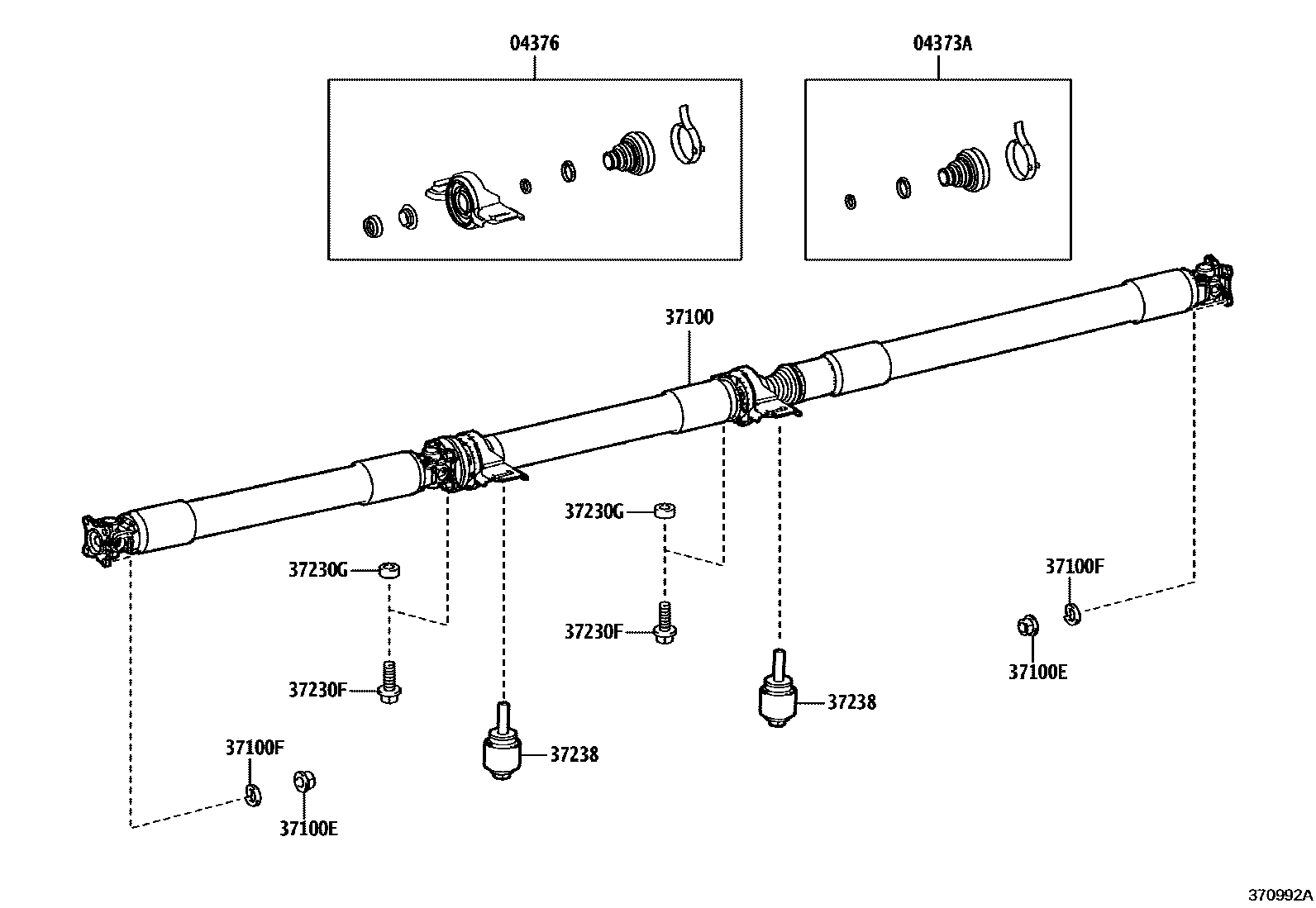

Toyota HIGHLANDER/KLUGER — PROPELLER SHAFT & UNIVERSAL JOINT
04376BEARING KIT, CENTER SUPPORT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
(L)
(J)
37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
(J)
*10-1.25PX35-35
*10-1.25PX35-35,(L)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=6.5
T=9.0
T=2.0
37238DAMPER, CENTER SUPPORT BEARING
8 parts on this diagram · 2 diagrams in section
