Toyota HIGHLANDER/KLUGER — PARKING BRAKE & CABLE

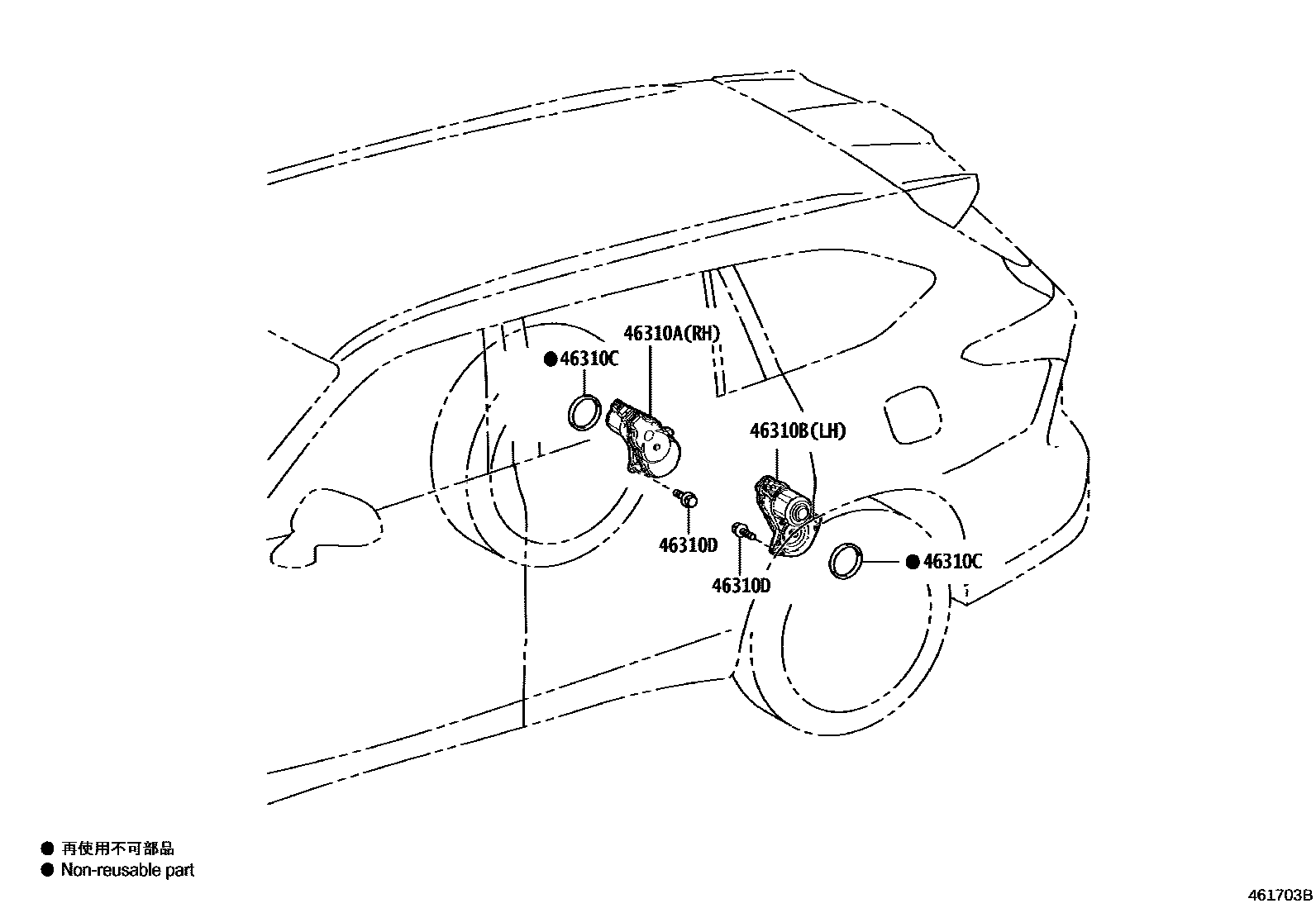

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-0A010iAXUH70,TXUA70202307-202410

MARK 46310-0A010

main46310-0A010iAXUH70,TXUA70202307-202312

(L)

main46310-33010iAXUH78,TXUA75¥14,400202210-202312

(J)

main46310-33010iAXUH70,TXUA70¥14,400202210-202410

MARK 46310-33010

main46310-33010iAXUH7#,GSU7#¥14,400202002-202210

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-0A010iAXUH70..LIMD202307-202410

MARK 46310-0A010

main46310-33010iAXUH7#,TXUA7#¥14,400202210-202410

MARK 46310-33010

main46310-33010iAXUH7#,GSU7#¥14,400202002-202210

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005iAXUH70..LIMD¥130202002-202410

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90016-AA703iAXUH7#,GSU7#¥270202002-202410

4 parts on this diagram · 1 diagram in section
