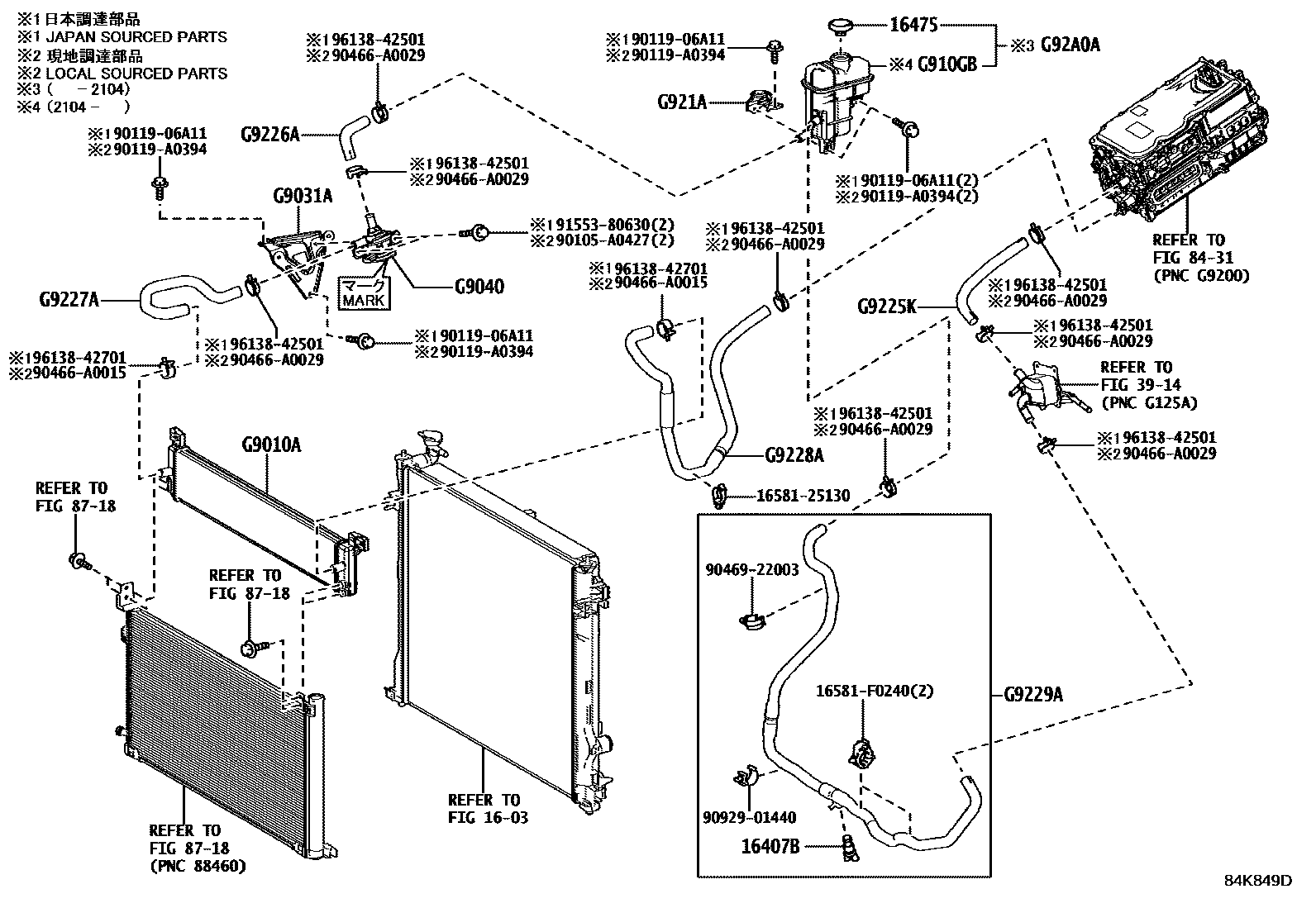

Toyota HIGHLANDER/KLUGER — INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AXUH7#..LHD¥380202002-202410

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXUH7#¥1,200202002-202410

3914

8431

8718

G9010ARADIATOR ASSY

mainG901048100iAXUH78;AXUH70..LE,XLE202210-202410

mainG901048100iAXUH7#202012-202210

NO PAINT

mainG901048110iAXUH7#202002-202012

BLACK PAINT

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E020iAXUH7#202002-202410

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904004020iAXUH78;AXUH70..LE,XLE202404-202410

(L)

mainG90400E050iAXUH7#202311-202404

(L)

subG9040-04020

mainG904028020iAXUH7#202210-202305

subG9040-48060¥27,900

mainG904042010iAXUH7#202002-202210

mainG904048060iAXUH78;AXUH70..LE,XLE202311-202411

(J)

mainG904048060iAXUH78..RHD202305-202312

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R010iAXUH78;AXUH70..LE,XLE202104-202410

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R010iAXUH7#202002-202410

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250E010iAXUH7#202002-202410

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R020iAXUH7#202002-202410

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E010iAXUH7#202002-202410

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E010iAXUH7#202002-202410

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E010iAXUH7#202002-202305

subG9229-0E011

mainG92290E011iAXUH7#..LHD202306-202410

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H00R020iAXUH7#202002-202104

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130¥260

16581F0240CLAMP, HOSE(FOR WATER HOSE)

main16581-F0240

90105A0427

main90105-A0427

9011906A11

main90119-06A11¥60

90119A0394

main90119-A0394

90466A0015

main90466-A0015

90466A0029

main90466-A0029

9046922003

main90469-22003¥110

9092901440

main90929-01440¥190

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

29 parts on this diagram · 1 diagram in section
