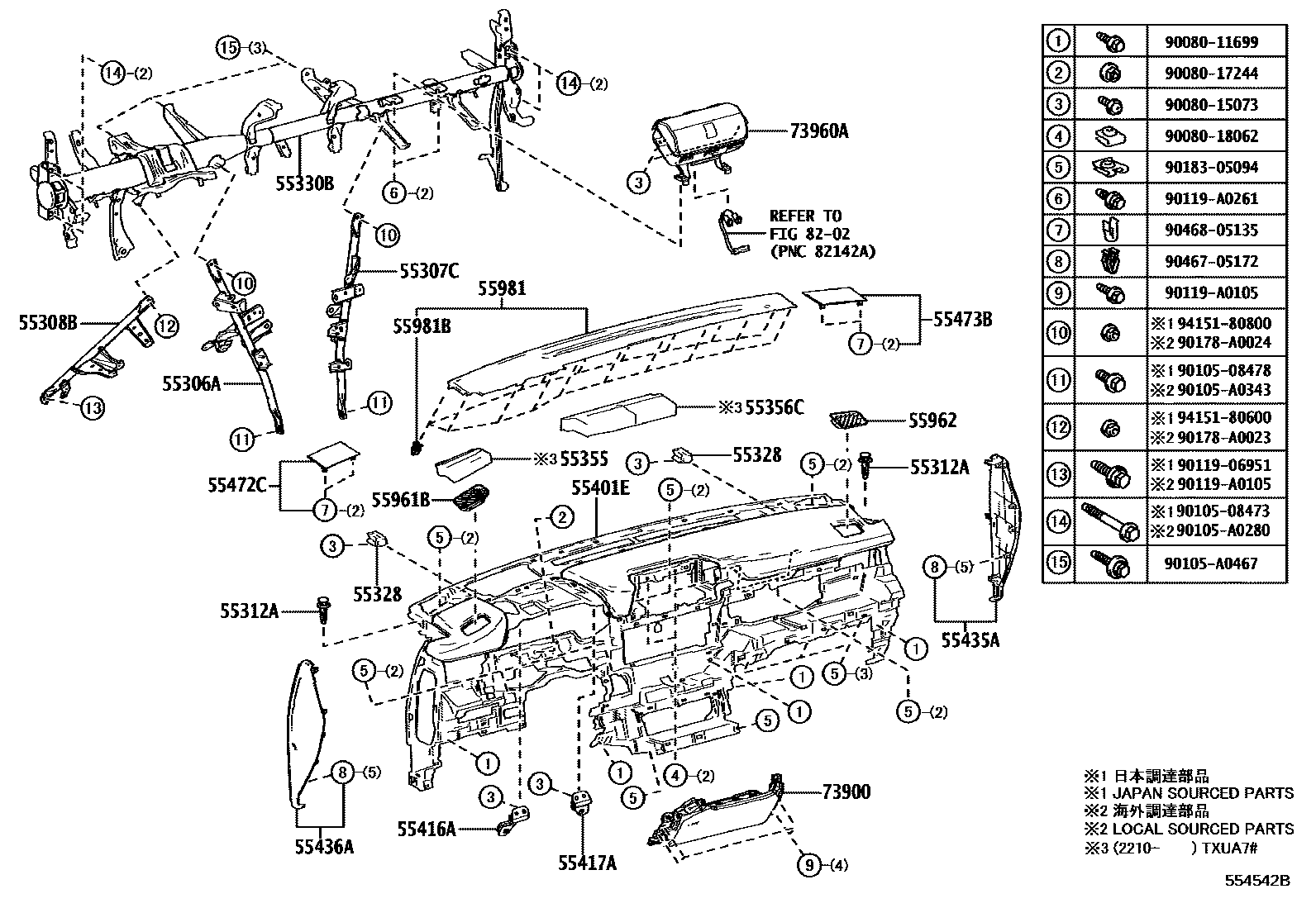

Toyota HIGHLANDER/KLUGER — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1WITH HEAD-UP DISPLAY 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1DRIVER SIDE 0006 1CENTER 0007 1CENTER, W(8INCH DISPLAY) 0008 1CENTER, W(8INCH DISPLAY & *IL0009 1CENTER, W(8INCH DISPLAY) 0010 1CENTER, W(12.3INCH DISPLAY) 0011 1CENTER, W(12.3INCH DISPLAY) 0012 1CENTER, W(12.3INCH DISPLAY) 0013 1PASSENGER SIDE 0014 1PASSENGER SIDE 0015 1PASSENGER SIDE 0016 1W/O(HEAD-UP DISPLAY) 0017 1W(HEAD-UP DISPLAY) 0018 1DRIVER SIDE 0019 1CENTER 0020 1CENTER, W(8INCH DISPLAY) 0022 1CENTER, W(12.3INCH DISPLAY) 0023 1CENTER 0024 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0E100iAXUH70..LIMD202002-202410

main55306-0E110iAXUH78,TXUA7#..RHD202011-202312

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E100iAXUH70..LIMD202002-202410

main55307-0E110iAXUH78,TXUA7#..RHD202011-202311

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-0E080iAXUH7#,GSU75..LHD202002-202410

main55308-0E090iAXUH78,GSU7#..RHD202011-202312

55312ACLIP, INSTRUMENT PANEL

main52161-02020iAXUH7#,GSU7#¥200202002-202410

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E060iAXUH7#,GSU7#202002-202410

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E130iAXUH78..LHD..LIMD..EUR;AXUH7#,GSU75..LHD..(LE,XLE)202002-202311

main55330-0E140iAXUH78..RHD..EUR;AXUH78,TXUA7#..LE..ARL202011-202312

main55330-0E150iAXUH78..LHD..LIMD..EUR202210-202311

PLATINUM PACKAGE

main55330-0E150iAXUH70..LIMD202002-202410

main55330-0E170iAXUH78..RHD..EUR202210-202312

PLATINUM PACKAGE

main55330-0E170iAXUH78,GSU7#..LIMD..ARL202012-202210

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0E130iTXUA7#202311

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0E150iTXUA7#202311

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0E130-C0iAXUH7#,GSU75..LHD..(LE,XLE)202002-202210

SOFT BLACK,TRIM1#,2#

main55401-0E130-E0iAXUH78,GSU75..LHD..(LE,XLE)..(EUR,RUS)202003-202210

NOBLE BROWN,TRIM4#

main55401-0E140-C1iAXUH7#,GSU75..LHD..LIMD202002-202210

BLACK, GREY,TRIM1#,2#

main55401-0E140-E2iAXUH7#,GSU75..LHD..LIMD202002-202210

NOBLE BROWN, BROWN 304,TRIM4#

main55401-0E150-C0iAXUH78,TXUA7#..LE..ARL202210-202312

SOFT BLACK,TRIM1#,2#,4#

main55401-0E150-C0iAXUH78,GSU7#..RHD..(LE,XLE)202011-202210

SOFT BLACK,TRIM1#,2#

main55401-0E150-E0iAXUH78,GSU7#..RHD..(LE,XLE)202011-202210

NOBLE BROWN,TRIM4#

main55401-0E160-C1iAXUH78,GSU7#..RHD..LIMD202011-202210

SOFT BLACK, GREY 166,TRIM1#,2#

main55401-0E160-C1iAXUH78,TXUA7#..RHD..LIMD202210-202312

SOFT BLACK, GREY 166,TRIM1#,2#,4#

main55401-0E160-E2iAXUH78,GSU7#..RHD..LIMD202011-202210

NOBLE BROWN, BROWN 304,TRIM4#

main55401-0E330-C0iAXUH78,TXUA75..(LE,XLE)..(EUR,RUS)202210-202311

SOFT BLACK,TRIM1#,2#

main55401-0E330-C0iAXUH7#..(LE,XLE)..GCC202210-202311

SOFT BLACK,TRIM1#,2#,4#

main55401-0E340-C1iAXUH78..LHD..LIMD..EUR202411

SOFT BLACK/GRAY,TRIM1#,2#,40,41

main55401-0E340-C1iTXUA75..LIMD..RUS202210-202411

SOFT BLACK/GRAY,TRIM1#,2#,4#

main55401-0E340-C1iAXUH78..LIMD..GCC202411

SOFT BLACK/GRAY,TRIM1#,2#,40

main55401-0E340-C2iAXUH78..LHD..LIMD202411

SOFT BLACK/BLACK,TRIM42

55416ARETAINER, METER HOOD, NO.1

main55416-0E090iAXUH7#,GSU7#202002-202410

55417ARETAINER, METER HOOD, NO.2

main55416-0E130iAXUH78,TXUA7#;AXUH70..LE,XLE202002-202410

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-0E100-C1iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main55435-0E100-C1iAXUH78..LIMD..GCC;AXUH78,TXUA7#..RHD202210-202410

BLACK,TRIM1#,2#,4#

main55435-0E100-E0iAXUH7#..LIMD..GCC;AXUH78,GSU7#..RHD202002-202210

NOBLE BROWN,TRIM4#

main55435-0E110-C1iAXUH78,GSU75..LHD..(EUR,RUS)202003-202210

BLACK,TRIM1#,2#

main55435-0E110-C1iAXUH78,TXUA75..LHD..(EUR,RUS)202210-202311

BLACK,TRIM1#,2#,4#

main55435-0E110-E0iAXUH78,GSU75..LHD..(EUR,RUS)202003-202210

NOBLE BROWN,TRIM4#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-0E110-C1iAXUH7#..(LE,XLE)..GCC202210-202410

BLACK,TRIM1#,2#,4#

main55436-0E110-C1iAXUH78..LHD..EUR;AXUH7#,GSU7#..ARL,GCC,RUS202002-202311

BLACK,TRIM1#,2#

main55436-0E110-E0iAXUH7#..LHD..LIMD;AXUH78,GSU7#..ARL,RUS;AXUH78..LHD..XLE..EUR202002-202210

NOBLE BROWN,TRIM4#

main55436-0E120-C1iAXUH78..RHD..EUR202210-202312

BLACK,TRIM1#,2#,4#

main55436-0E120-C1iAXUH78..RHD..EUR202011-202210

BLACK,TRIM1#,2#

main55436-0E120-E0iAXUH78..RHD..EUR202011-202210

NOBLE BROWN,TRIM4#

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0E090-C1iAXUH78..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202002-202410

BLACK,TRIM1#,2#,4#

main55472-0E090-C1iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0E080-C1iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main55473-0E080-C1iAXUH7#..(LE,XLE)..GCC202002-202410

BLACK,TRIM1#,2#,4#

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-0E070-C1iAXUH70..LIMD202210-202410

BLACK,TRIM1#,2#,4#

main55961-0E070-C1iAXUH7#,GSU75..LHD202002-202311

BLACK,TRIM1#,2#

main55961-0E070-E0iGSU75..RUS;AXUH7#..LHD..LIMD;AXUH78..LHD..XLE..EUR202002-202210

NOBLE BROWN,TRIM4#

main55961-0E080-C1iAXUH78,GSU7#..RHD202011-202210

BLACK,TRIM1#,2#

main55961-0E080-C1iAXUH78,TXUA7#..RHD202210-202312

BLACK,TRIM1#,2#,4#

main55961-0E080-E0iAXUH78,GSU7#..RHD202011-202210

NOBLE BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-0E070-C1iAXUH7#..(LE,XLE)..GCC202210-202410

BLACK,TRIM1#,2#,4#

main55962-0E070-C1iAXUH7#,GSU75..LHD202002-202311

BLACK,TRIM1#,2#

main55962-0E070-E0iGSU75..RUS;AXUH7#..LHD..LIMD;AXUH78..LHD..XLE..EUR202002-202210

NOBLE BROWN,TRIM4#

main55962-0E080-C1iAXUH78,GSU7#..RHD202011-202210

BLACK,TRIM1#,2#

main55962-0E080-C1iAXUH78,TXUA7#..RHD202210-202312

BLACK,TRIM1#,2#,4#

main55962-0E080-E0iAXUH78,GSU7#..RHD202011-202210

NOBLE BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0E080-C0iTXUA75..LE..RUS;AXUH78..LHD..EUR202003-202311

BLACK,TRIM1#,2#,4#

main55981-0E080-C0iAXUH7#..(LE,XLE)..GCC202002-202311

BLACK,TRIM1#,2#

main55981-0E090-C0iAXUH78,TXUA75..LIMD..(GCC,RUS)202002-202410

BLACK,TRIM1#,2#,4#

main55981-0E090-C0iAXUH78,TXUA75..LIMD..(GCC,RUS)202210-202311

PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#

main55981-0E100-C0iAXUH78..RHD..EUR;AXUH78,TXUA7#..LE..ARL202011-202312

BLACK,TRIM1#,2#,4#

main55981-0E110-C0iAXUH78,TXUA7#..LIMD..ARL202012-202312

BLACK,TRIM1#,2#,4#

main55981-0E110-C0iAXUH78,TXUA7#..LIMD..ARL202210-202312

PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#

55981BCLIP(FOR DEFROSTER NOZZLE GARNISH)

main90467-05171iAXUH7#,TXUA75..LHD¥60202002-202410

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-0E090-C0iTXUA75..RUS;AXUH78..XLE..EUR;AXUH78..LHD..LIMD202002-202311

BLACK,TRIM1#,2#

main73900-0E090-C0iAXUH7#..(LE,XLE)..GCC202210-202410

BLACK,TRIM1#,2#,4#

main73900-0E090-E0iGSU75..RUS;AXUH7#..LHD..LIMD;AXUH78..LHD..XLE..EUR202002-202210

NOBLE BROWN,TRIM4#

main73900-0E101-C0iAXUH78,TXUA7#..RHD202210-202312

BLACK,TRIM1#,2#,4#

main73900-0E101-C0iAXUH78,GSU7#..RHD202011-202210

BLACK,TRIM1#,2#

main73900-0E101-E0iAXUH78,GSU7#..RHD202011-202210

NOBLE BROWN,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E110iAXUH7#,GSU7#202002-202207

sub73960-0E111

main73960-0E111iAXUH78,TXUA7#;AXUH70..LE,XLE202208-202410

8202

9008011699

main90080-11699¥110

9008015073

main90080-15073

9008017244

main90080-17244¥80

9008018062

main90080-18062

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

90105A0280

main90105-A0280

90105A0343

main90105-A0343

90105A0467

main90105-A0467

9011906951

main90119-06951¥80

90119A0105

main90119-A0105

90119A0261

main90119-A0261

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9018305094

main90183-05094¥90

9046705172

main90467-05172¥60

9046805135

main90468-05135¥130

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

41 parts on this diagram · 23 diagrams in section
