Toyota HIGHLANDER/KLUGER — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0E190iAXUH78,TXUA7#..RHD202210-202312

main53410-0E190iAXUH7#,TXUA75..LHD202210-202311

main53410-0E190iAXUH70..LIMD202311-202410

main53410-0E190iAXUH78,TXUA7#;AXUH70..LE,XLE202311

main53410-0E190iAXUH7#,GSU7#202002-202210

53420HINGE ASSY, HOOD, LH

main53420-0E190iAXUH7#,GSU7#202002-202210

main53420-0E190iAXUH7#,TXUA75..LHD202210-202311

main53420-0E190iAXUH78,TXUA7#..RHD202210-202312

main53420-0E190iAXUH70..LIMD202311-202410

main53420-0E190iAXUH78,TXUA7#;AXUH70..LE,XLE202311

53440DSUPPORT ASSY, HOOD

main53440-0E090iAXUH7#,GSU7#202002-202210

main53440-0E090iAXUH7#,TXUA75..LHD202210-202311

main53440-0E090iAXUH78,TXUA7#..RHD202210-202312

main53440-0E090iAXUH70..LIMD202311-202410

main53440-0E090iAXUH78,TXUA7#;AXUH70..LE,XLE202311

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iAXUH7#,GSU7#¥220202002-202210

main90480-15025iAXUH7#,TXUA75..LHD¥220202210-202311

main90480-15025iAXUH78,TXUA7#..RHD¥220202210-202312

main90480-15025iAXUH70..LIMD¥220202311-202410

main90480-15025iAXUH78,TXUA7#;AXUH70..LE,XLE¥220202311

53452HOLDER, HOOD STAY

main53452-02220iAXUH7#,GSU7#202002-202210

main53452-02220iAXUH7#,TXUA75..LHD202210-202311

main53452-02220iAXUH78,TXUA7#..RHD202210-202312

main53452-02220iAXUH70..LIMD202311-202410

main53452-02220iAXUH78,TXUA7#;AXUH70..LE,XLE202311

53510LOCK ASSY, HOOD

main53510-0E150iAXUH70..XLE;TXUA75..RUS;AXUH78..LHD..(LIMD,XLE)¥2,930202311

U.A.E. SPEC&DATA COMMUNICATION MODULE-UAE DCM

main53510-0E150iGSU75..RUS;AXUH7#..LHD..(LIMD,XLE)¥2,930202002-202210

main53510-0E150iAXUH78..LE..GCC¥2,930202311

DATA COMMUNICATION MODULE-MID-EAST DCM

main53510-0E150iAXUH70..LE¥2,930202311

KUWAIT SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main53510-0E150iTXUA75..RUS;AXUH7#..LHD..(LIMD,XLE)¥2,930202210-202311

U.A.E. SPEC&DATA COMMUNICATION MODULE-UAE DCM

main53510-0E150iTXUA75..RUS;AXUH7#..LHD..(LIMD,XLE)¥2,930202210-202311

BAHRAIN SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main53510-0E150iTXUA75..RUS;AXUH7#..LHD..(LIMD,XLE)¥2,930202210-202311

QATAR SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main53510-0E150iAXUH70..LIMD¥2,930202311-202410

main53510-0E160iAXUH7#..LE..GCC202311

BAHRAIN SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main53510-0E160iAXUH7#..LE..GCC202210-202311

main53510-0E160iAXUH7#..LE..GCC202002-202210

main53510-48270iAXUH78,TXUA7#..RHD202401

main53510-48270iAXUH78,TXUA7#..RHD202210-202312

main53510-48270iAXUH78,GSU7#..RHD202011-202210

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAXUH78,TXUA7#;AXUH70..LE,XLE¥90202311

WD=0.9,CW=21

main90506-09055iAXUH7#,GSU7#¥90202002-202210

WD=0.9,CW=21

main90506-09055iAXUH7#,TXUA75..LHD¥90202210-202311

WD=0.9,CW=21

main90506-09055iAXUH78,TXUA7#..RHD¥90202210-202312

WD=0.9,CW=21

main90506-09055iAXUH70..LIMD¥90202311-202410

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAXUH70..LIMD¥90202311-202410

WD=1.2,CW=8.5

main90506-12063iAXUH78,TXUA7#;AXUH70..LE,XLE¥90202311

WD=1.2,CW=8.5

main90506-12063iAXUH78,TXUA7#..RHD¥90202210-202312

WD=1.2,CW=8.5

main90506-12063iAXUH7#,GSU7#¥90202002-202210

WD=1.2,CW=8.5

main90506-12063iAXUH7#,TXUA75..LHD¥90202210-202311

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAXUH78,TXUA7#;AXUH70..LE,XLE¥90202311

WD=1.8,CW=13

main90506-18067iAXUH7#,GSU7#¥90202002-202210

WD=1.8,CW=13

main90506-18067iAXUH7#,TXUA75..LHD¥90202210-202311

WD=1.8,CW=13

main90506-18067iAXUH78,TXUA7#..RHD¥90202210-202312

WD=1.8,CW=13

main90506-18067iAXUH70..LIMD¥90202311-202410

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-0E010iAXUH7#,GSU7#202002-202210

main53577-0E010iAXUH7#,TXUA7#202210-202302

main53577-0E011iAXUH7#,TXUA75..LHD202303-202311

main53577-0E011iAXUH78,TXUA7#..RHD202303-202312

main53577-0E011iAXUH70..LIMD202311-202410

main53577-0E011iAXUH78,TXUA7#;AXUH70..LE,XLE202311

53579CAP, HOOD LOCK NUT

main53579-0E010iAXUH7#,GSU7#202002-202210

main53579-0E010iAXUH7#,TXUA75..LHD202210-202311

main53579-0E010iAXUH78,TXUA7#..RHD202210-202312

main53579-0E010iAXUH70..LIMD202311-202410

main53579-0E010iAXUH78,TXUA7#;AXUH70..LE,XLE202311

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02040-C0iAXUH7#..(LE,XLE)..GCC202210-202311

BLACK,TRIM1#,2#

main53601-02040-C0iAXUH78..LIMD..ARL;AXUH7#..(LE,XLE)..(ARL,GCC)202002-202210

BLACK,TRIM1#,2#

main53601-02040-C0iAXUH78..LIMD..ARL;AXUH7#..(LE,XLE)..(ARL,GCC)202002-202210

BLACK,TRIM1#,2#,40

main53601-02040-C0iGSU7#..LIMD;AXUH78..LIMD..EUR202003-202210

BLACK,TRIM1#,2#,40,41

main53601-02040-C0iAXUH7#..(LE,XLE)..GCC202210-202311

BLACK,TRIM1#,2#,4#

main53601-02040-C0iAXUH78,TXUA7#..RHD202210-202312

BLACK,TRIM1#,2#,4#

main53601-02040-C0iAXUH70..LIMD202311-202410

BLACK,TRIM1#,2#,4#

main53601-02040-C0iAXUH7#..(LE,XLE)..GCC202311

BLACK,TRIM1#,2#

main53601-02040-C0iAXUH7#..(LE,XLE)..GCC202311

BLACK,TRIM1#,2#,4#

main53601-02040-E0iGSU7#..LIMD;AXUH78..LIMD..EUR202003-202210

NOBLE BROWN,TRIM40,41

main53601-02040-E0iAXUH78..ARL202012-202210

NOBLE BROWN,TRIM4#

main53601-02040-E0iGSU7#..LE;AXUH78..XLE..EUR;AXUH7#..LIMD..GCC202002-202210

NOBLE BROWN,TRIM40

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0E090iAXUH78,TXUA7#;AXUH70..LE,XLE202311-202501

main53630-0E090iAXUH78,TXUA7#..RHD202210-202312

main53630-0E090iAXUH7#,GSU7#202002-202210

main53630-0E090iAXUH7#,TXUA75..LHD202210-202311

main53630-0E090iAXUH70..LIMD202311-202410

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iAXUH70..LIMD¥80202311-202410

main90469-06005iAXUH7#,GSU7#¥80202002-202210

main90469-06005iAXUH7#,TXUA75..LHD¥80202210-202311

main90469-06005iAXUH78,TXUA7#;AXUH70..LE,XLE¥80202311

main90469-06005iAXUH78,TXUA7#..RHD¥80202210-202312

9008010384

main90080-10384

9008050330

main90080-50330¥50

90105A0068

main90105-A0068

90119A0484

main90119-A0484

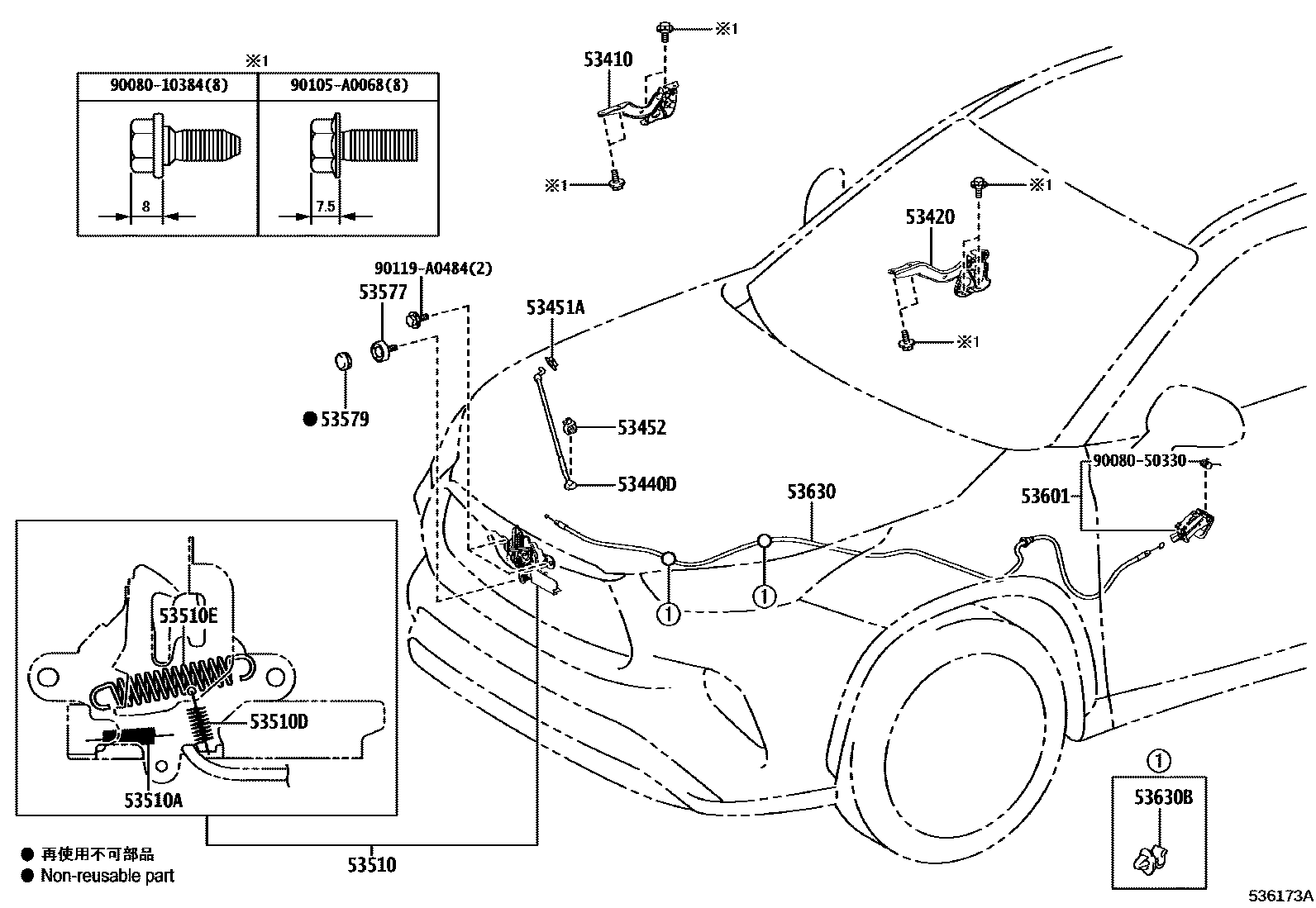

18 parts on this diagram · 2 diagrams in section
