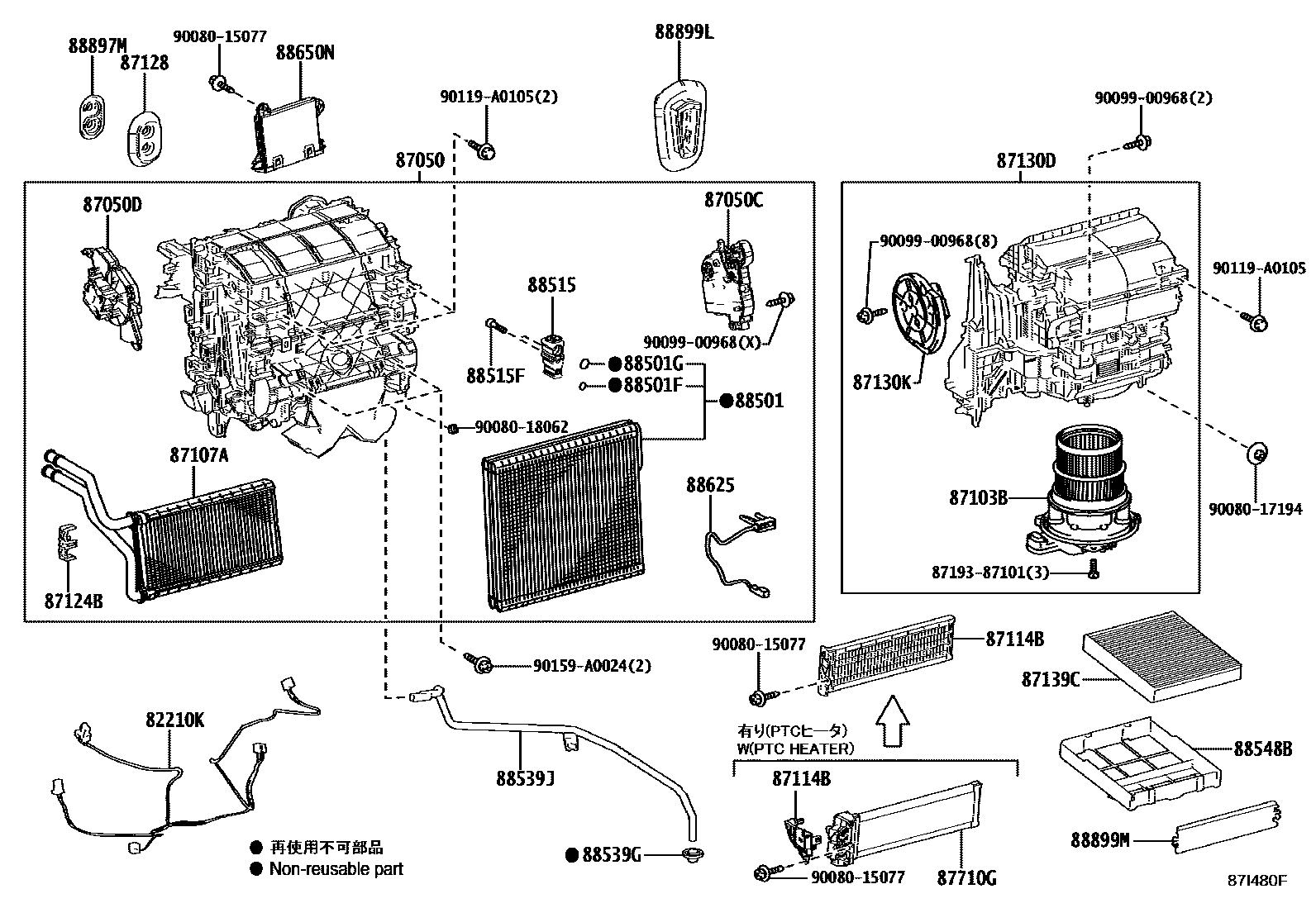

Toyota HIGHLANDER/KLUGER — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
LEATHER PACKAGE
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
(L)
(J)
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87124BCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
(L)
(L)
(J)
(J)
87139CFILTER, CLEAN AIR
DEODORANT FILTER
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
(L)
A/C OIL:ND-OIL11
(L)
(J)
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6,(L)
ID=10.8,OD=15.6
ID=10.8,OD=15.6,(J)
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2,(L)
ID=13.4,OD=18.2
ID=13.4,OD=18.2,(J)
88515VALVE, COOLER EXPANSION
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
8719387101
9008015077
9008017194
main90080-17194
9008018062
main90080-18062
9009900968
main90099-00968
90119A0105
main90119-A0105
90159A0024
main90159-A0024
33 parts on this diagram · 5 diagrams in section
