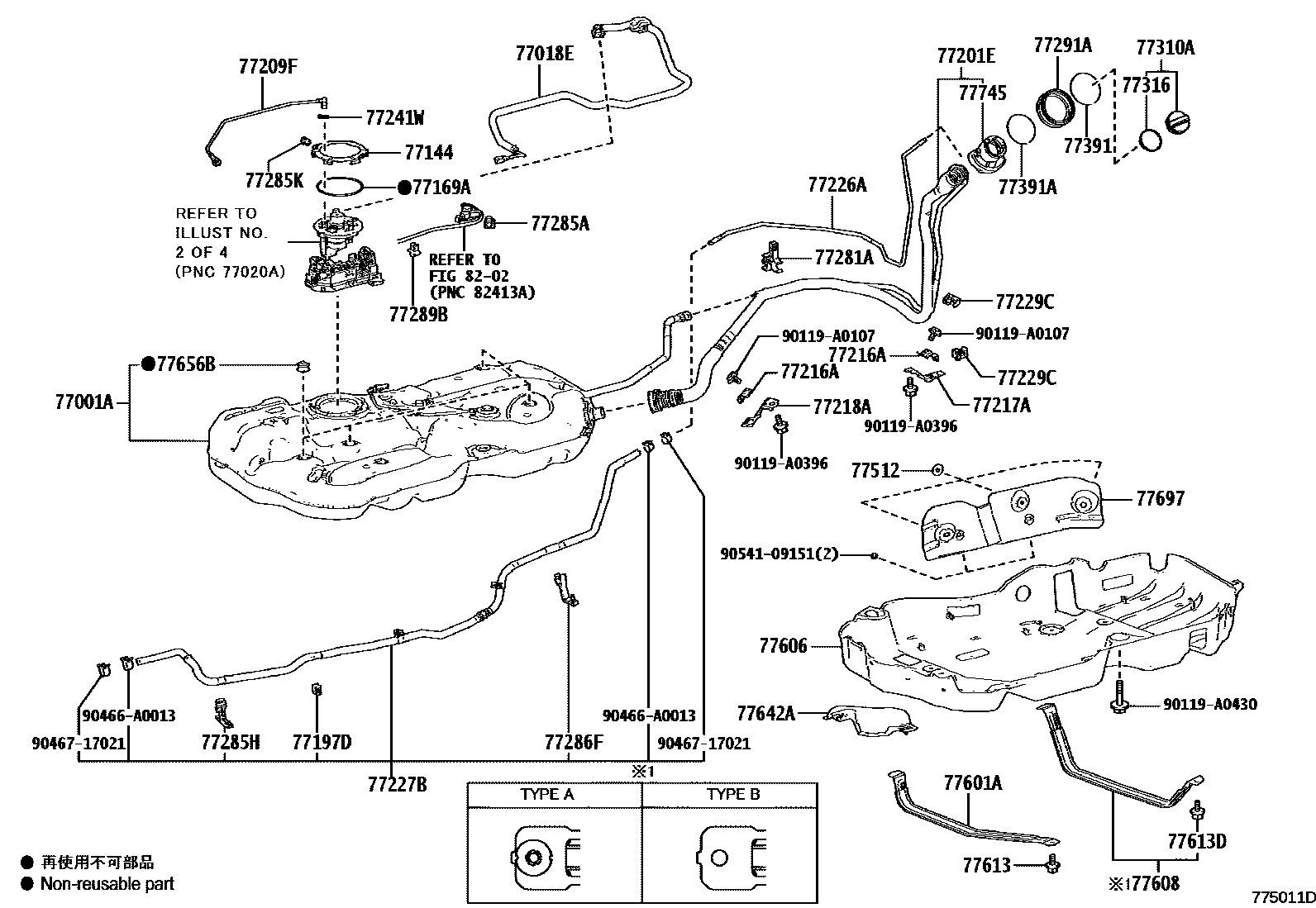

Toyota HIGHLANDER/KLUGER — FUEL TANK & TUBE
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77144RETAINER, FUEL PUMP GAUGE
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77227BTUBE, FUEL TANK BREATHER, NO.7
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77281ACLAMP, FUEL FILLER PIPE
77285ASUPPORT, FUEL RETURN AND MAIN TUBE
77285HCLAMP, FUEL TUBE, NO.1
77285KCLAMP, FUEL TUBE, NO.1
77286FCLAMP, FUEL TUBE, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608BAND SUB-ASSY, FUEL TANK, NO.2
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
77613BOLT, FUEL TANK BAND SET
77613DBOLT, FUEL TANK BAND SET, NO.2
77642APROTECTOR, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77697INSULATOR, FUEL TANK HEAT, NO.1
77745FILTER, CHARCOAL CANISTER, NO.1
8202
90119A0107
main90119-A0107
90119A0396
main90119-A0396
90119A0430
main90119-A0430
90466A0013
main90466-A0013
9046717021
9054109151
42 parts on this diagram · 9 diagrams in section
