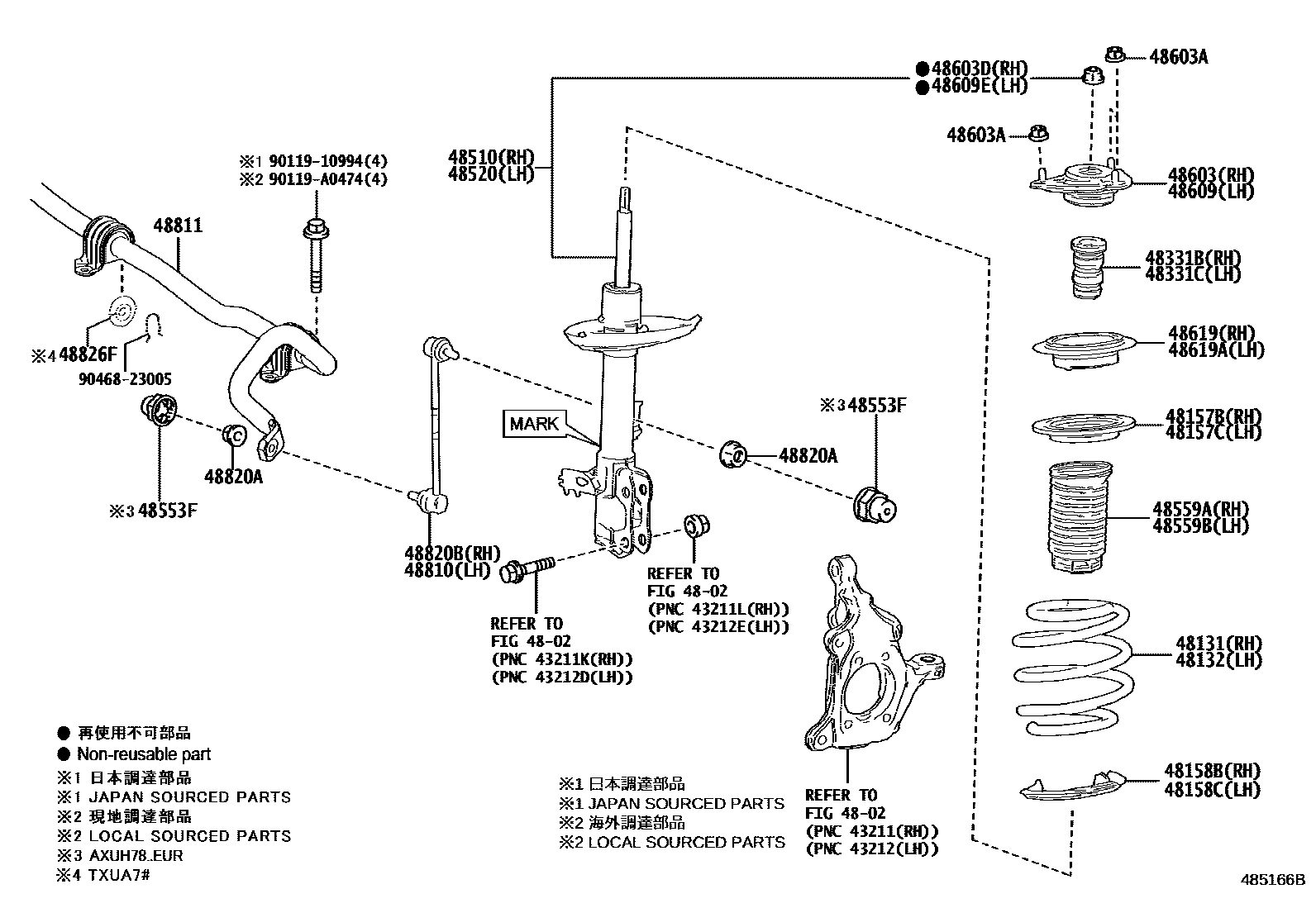

Toyota HIGHLANDER/KLUGER — FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0E340
MARK 48510-0E340
MARK 48510-0E340
MARK 48510-0E340
MARK 48510-0E340
MARK 48510-0E350
MARK 48510-0E390
MARK 48510-0E390
MARK 48510-0E390
MARK 48510-0E370
MARK 48510-0E370
MARK 48510-0E370
MARK 48510-0E370
MARK 48510-0E580
MARK 48510-0E580
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-0E340
MARK 48520-0E340
MARK 48520-0E340
MARK 48520-0E340
MARK 48520-0E340
MARK 48520-0E350
MARK 48520-0E390
MARK 48520-0E390
MARK 48520-0E390
MARK 48520-0E370
MARK 48520-0E370
MARK 48520-0E370
MARK 48520-0E370
MARK 48520-0E580
MARK 48520-0E580
48553FCAP
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
(J)
(J)
(J)
(J)
(J)
(L)
(L)
(L)
(L)
(L)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
(J)
(J)
(J)
(J)
(J)
(L)
(L)
(L)
(L)
(L)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820ANUT(FOR FRONT STABILIZER LINK)
(L)
(L)
(L)
(L)
(L)
(J)
(J)
(J)
(J)
(J)
48820BLINK ASSY, FRONT STABILIZER, RH
48826FPROTECTOR, STABILIZER
9011910994
90119A0474
main90119-A0474
9046823005
29 parts on this diagram · 1 diagram in section
