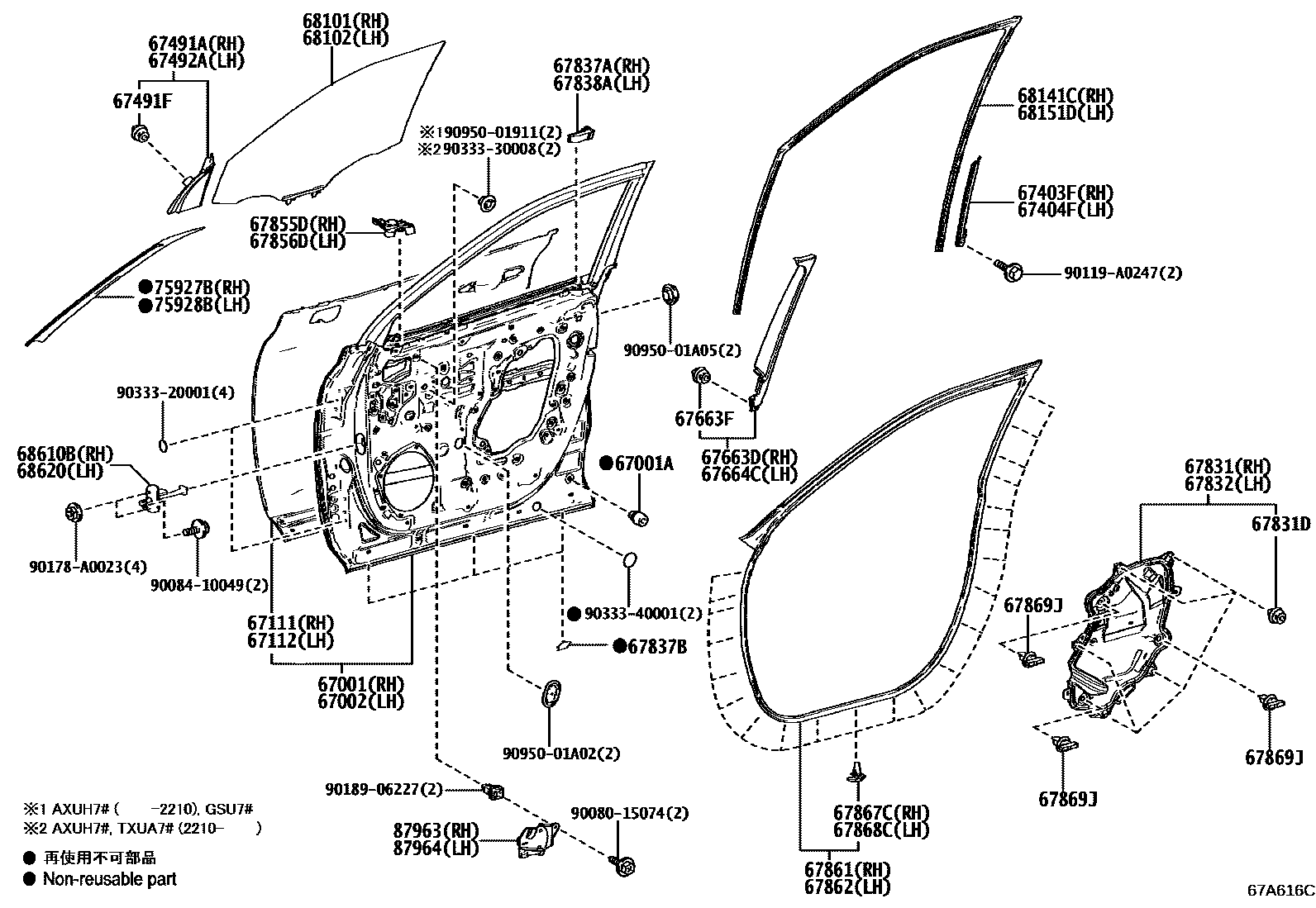

Toyota HIGHLANDER/KLUGER — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0E171iAXUH78,TXUA7#;AXUH70..LE,XLE¥46,700202311

main67001-0E171iAXUH70..LIMD¥46,700202311-202410

main67001-0E171iAXUH7#,GSU7#¥46,700202002-202210

main67001-0E171iAXUH7#,TXUA75..LHD¥46,700202210-202311

main67001-0E171iAXUH78,TXUA7#..RHD¥46,700202210-202312

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iAXUH7#,GSU7#¥100202002-202210

main90541-09124iAXUH7#,TXUA75..LHD¥100202210-202311

main90541-09124iAXUH78,TXUA7#..RHD¥100202210-202312

main90541-09124iAXUH78,TXUA7#;AXUH70..LE,XLE¥100202311

main90541-09124iAXUH70..LIMD¥100202311-202410

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0E171iAXUH7#,GSU7#202002-202210

main67002-0E171iAXUH78,TXUA7#..RHD202210-202312

main67002-0E171iAXUH7#,TXUA75..LHD202210-202311

main67002-0E171iAXUH70..LIMD202311-202410

main67002-0E171iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67111PANEL, FRONT DOOR, OUTER RH

main67111-0E081iAXUH7#,TXUA75..LHD202210-202311

main67111-0E081iAXUH78,TXUA7#..RHD202210-202312

main67111-0E081iAXUH70..LIMD202311-202410

main67111-0E081iAXUH78,TXUA7#;AXUH70..LE,XLE202311

main67111-0E081iAXUH7#,GSU7#202002-202210

67112PANEL, FRONT DOOR, OUTER LH

main67112-0E081iAXUH7#,GSU7#202002-202210

main67112-0E081iAXUH7#,TXUA75..LHD202210-202311

main67112-0E081iAXUH78,TXUA7#..RHD202210-202312

main67112-0E081iAXUH70..LIMD202311-202410

main67112-0E081iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0E090iAXUH7#,GSU7#202002-202210

main67403-0E090iAXUH7#,TXUA75..LHD202210-202311

main67403-0E090iAXUH78,TXUA7#..RHD202210-202312

main67403-0E090iAXUH70..LIMD202311-202410

main67403-0E090iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0E090iAXUH7#,GSU7#202002-202210

main67404-0E090iAXUH7#,TXUA75..LHD202210-202311

main67404-0E090iAXUH78,TXUA7#..RHD202210-202312

main67404-0E090iAXUH70..LIMD202311-202410

main67404-0E090iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-0E060iAXUH78,TXUA7#;AXUH70..LE,XLE¥790202311

main67491-0E060iAXUH7#,GSU7#¥790202002-202210

main67491-0E060iAXUH7#,TXUA75..LHD¥790202210-202311

main67491-0E060iAXUH78,TXUA7#..RHD¥790202210-202312

main67491-0E060iAXUH70..LIMD¥790202311-202410

67491FCLIP(FOR DOOR TRIM)

main90467-10167iAXUH70..LIMD¥90202311-202410

main90467-10167iAXUH78,TXUA7#..RHD¥90202210-202312

main90467-10167iAXUH7#,GSU7#¥90202002-202210

main90467-10167iAXUH7#,TXUA75..LHD¥90202210-202311

main90467-10167iAXUH78,TXUA7#;AXUH70..LE,XLE¥90202311

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-0E060iAXUH70..LIMD202311-202410

main67492-0E060iAXUH7#,GSU7#202002-202210

main67492-0E060iAXUH7#,TXUA75..LHD202210-202311

main67492-0E060iAXUH78,TXUA7#..RHD202210-202312

main67492-0E060iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67663DGARNISH, DOOR FRAME, RH

main67663-0E070iAXUH7#,GSU7#¥1,940202002-202210

main67663-0E070iAXUH7#,TXUA75..LHD¥1,940202210-202311

main67663-0E070iAXUH78,TXUA7#..RHD¥1,940202210-202312

main67663-0E070iAXUH70..LIMD¥1,940202311-202410

main67663-0E070iAXUH78,TXUA7#;AXUH70..LE,XLE¥1,940202311

67663FCLIP(FOR DOOR FRAME GARNISH)

main90467-A0005iAXUH7#,GSU7#202002-202210

main90467-A0005iAXUH7#,TXUA75..LHD202210-202311

main90467-A0005iAXUH78,TXUA7#..RHD202210-202312

main90467-A0005iAXUH70..LIMD202311-202410

main90467-A0005iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67664CGARNISH, DOOR FRAME, LH

main67664-0E070iAXUH7#,GSU7#202002-202210

main67664-0E070iAXUH7#,TXUA75..LHD202210-202311

main67664-0E070iAXUH78,TXUA7#..RHD202210-202312

main67664-0E070iAXUH70..LIMD202311-202410

main67664-0E070iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0E090iAXUH7#,GSU7#202002-202210

main67831-0E090iAXUH7#,TXUA75..LHD202210-202311

main67831-0E090iAXUH78,TXUA7#..RHD202210-202312

main67831-0E090iAXUH70..LIMD202311-202410

main67831-0E090iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-A0005iAXUH78,TXUA7#;AXUH70..LE,XLE202311

main90467-A0005iAXUH7#,GSU7#202002-202210

main90467-A0005iAXUH7#,TXUA75..LHD202210-202311

main90467-A0005iAXUH78,TXUA7#..RHD202210-202312

main90467-A0005iAXUH70..LIMD202311-202410

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0E090iAXUH7#,GSU7#202002-202210

main67832-0E090iAXUH7#,TXUA75..LHD202210-202311

main67832-0E090iAXUH78,TXUA7#..RHD202210-202312

main67832-0E090iAXUH70..LIMD202311-202410

main67832-0E090iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67837ASEAL, FRONT DOOR VENT, RH

main67837-0E110iAXUH7#,GSU7#¥640202002-202210

main67837-0E110iAXUH7#,TXUA75..LHD¥640202210-202311

main67837-0E110iAXUH78,TXUA7#..RHD¥640202210-202312

main67837-0E110iAXUH70..LIMD¥640202311-202410

main67837-0E110iAXUH78,TXUA7#;AXUH70..LE,XLE¥640202311

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0E060iAXUH7#,GSU7#202002-202210

main67837-0E060iAXUH7#,TXUA75..LHD202210-202311

main67837-0E060iAXUH78,TXUA7#..RHD202210-202312

main67837-0E060iAXUH70..LIMD202311-202410

main67837-0E060iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67838ASEAL, FRONT DOOR VENT, LH

main67838-0E110iAXUH7#,GSU7#202002-202210

main67838-0E110iAXUH7#,TXUA75..LHD202210-202311

main67838-0E110iAXUH78,TXUA7#..RHD202210-202312

main67838-0E110iAXUH70..LIMD202311-202410

main67838-0E110iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-0E050iAXUH7#,GSU7#¥450202002-202210

main67855-0E050iAXUH7#,TXUA75..LHD¥450202210-202311

main67855-0E050iAXUH78,TXUA7#..RHD¥450202210-202312

main67855-0E050iAXUH70..LIMD¥450202311-202410

main67855-0E050iAXUH78,TXUA7#;AXUH70..LE,XLE¥450202311

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-0E050iAXUH7#,GSU7#202002-202210

main67856-0E050iAXUH7#,TXUA75..LHD202210-202311

main67856-0E050iAXUH78,TXUA7#..RHD202210-202312

main67856-0E050iAXUH70..LIMD202311-202410

main67856-0E050iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0E090iAXUH7#,GSU7#¥5,500202002-202210

main67861-0E090iAXUH7#,TXUA75..LHD¥5,500202210-202311

main67861-0E090iAXUH78,TXUA7#..RHD¥5,500202210-202312

main67861-0E090iAXUH70..LIMD¥5,500202311-202410

main67861-0E090iAXUH78,TXUA7#;AXUH70..LE,XLE¥5,500202311

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0E090iAXUH7#,GSU7#202002-202210

main67862-0E090iAXUH7#,TXUA75..LHD202210-202311

main67862-0E090iAXUH78,TXUA7#..RHD202210-202312

main67862-0E090iAXUH70..LIMD202311-202410

main67862-0E090iAXUH78,TXUA7#;AXUH70..LE,XLE202311

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAXUH7#,TXUA75..LHD¥100202210-202311

main67867-12150iAXUH7#,GSU7#¥100202002-202210

main67867-12150iAXUH78,TXUA7#..RHD¥100202210-202312

main67867-12150iAXUH70..LIMD¥100202311-202410

main67867-12150iAXUH78,TXUA7#;AXUH70..LE,XLE¥100202311

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAXUH7#,GSU7#¥100202002-202210

main67867-12150iAXUH7#,TXUA75..LHD¥100202210-202311

main67867-12150iAXUH78,TXUA7#..RHD¥100202210-202312

main67867-12150iAXUH70..LIMD¥100202311-202410

main67867-12150iAXUH78,TXUA7#;AXUH70..LE,XLE¥100202311

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0E010iAXUH7#,GSU7#202002-202210

main67869-0E010iAXUH7#,TXUA75..LHD202210-202311

main67869-0E010iAXUH78,TXUA7#..RHD202210-202312

main67869-0E010iAXUH70..LIMD202311-202410

main67869-0E010iAXUH78,TXUA7#;AXUH70..LE,XLE202311

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0E110iAXUH7#,GSU75..LIMD..(GCC,RUS);AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR)¥39,100202002-202210

main68101-0E110iAXUH7#,TXUA75..LHD..LIMD¥39,100202210-202311

main68101-0E110iAXUH78,TXUA7#..RHD¥39,100202210-202312

main68101-0E110iAXUH70..LIMD¥39,100202311-202410

main68101-0E110iAXUH78,TXUA75..LIMD..(GCC,RUS);AXUH78,TXUA7#..(LE,LIMD)..(ARL,EUR)¥39,100202311

main68101-0E120iAXUH7#,TXUA75..LHD..(LE,XLE)202210-202311

main68101-0E120iAXUH7#,GSU75..(LE,XLE)..(EUR,GCC,RUS)202002-202210

main68101-0E120iAXUH7#,TXUA75..LHD..(LE,XLE)202311

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0E110iAXUH70..LIMD202311-202410

main68102-0E110iAXUH7#,GSU75..LIMD..(GCC,RUS);AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR)202002-202210

main68102-0E110iAXUH7#,TXUA75..LHD..LIMD202210-202311

main68102-0E110iAXUH78,TXUA7#..RHD202210-202312

main68102-0E110iAXUH78,TXUA75..LIMD..(GCC,RUS);AXUH78,TXUA7#..(LE,LIMD)..(ARL,EUR)202311

main68102-0E120iAXUH7#,TXUA75..LHD..(LE,XLE)202311

main68102-0E120iAXUH7#,TXUA75..LHD..(LE,XLE)202210-202311

main68102-0E120iAXUH7#,GSU75..(LE,XLE)..(EUR,GCC,RUS)202002-202210

68141CRUN, FRONT DOOR GLASS, RH

main68141-0E080iAXUH7#,GSU7#¥2,550202002-202210

main68141-0E080iAXUH7#,TXUA75..LHD¥2,550202210-202311

main68141-0E080iAXUH78,TXUA7#..RHD¥2,550202210-202312

main68141-0E080iAXUH70..LIMD¥2,550202311-202410

main68141-0E080iAXUH78,TXUA7#;AXUH70..LE,XLE¥2,550202311

68151DRUN, FRONT DOOR GLASS, LH

main68151-0E080iAXUH7#,GSU7#202002-202210

main68151-0E080iAXUH7#,TXUA75..LHD202210-202311

main68151-0E080iAXUH78,TXUA7#..RHD202210-202312

main68151-0E080iAXUH70..LIMD202311-202410

main68151-0E080iAXUH78,TXUA7#;AXUH70..LE,XLE202311

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0E100iAXUH7#,GSU7#202002-202103

main68610-0E180iAXUH7#,GSU7#202103-202210

main68610-0E180iAXUH7#,TXUA75..LHD202210-202311

main68610-0E180iAXUH78,TXUA7#..RHD202210-202312

main68610-0E180iAXUH70..LIMD202311-202410

main68610-0E180iAXUH78,TXUA7#;AXUH70..LE,XLE202311

68620CHECK ASSY, FRONT DOOR, LH

main68620-0E100iAXUH7#,GSU7#202002-202103

main68620-0E160iAXUH7#,GSU7#202103-202210

main68620-0E160iAXUH7#,TXUA75..LHD202210-202311

main68620-0E160iAXUH78,TXUA7#..RHD202210-202312

main68620-0E160iAXUH70..LIMD202311-202410

main68620-0E160iAXUH78,TXUA7#;AXUH70..LE,XLE202311

75927BTAPE, BLACK OUT, NO.4 RH

main75927-0E010iAXUH78,TXUA7#..LIMD¥12,300202311

main75927-0E010iAXUH7#,GSU7#..LIMD¥12,300202002-202210

main75927-0E010iAXUH7#,TXUA75..LHD..LIMD¥12,300202210-202311

main75927-0E010iAXUH78,TXUA7#..RHD..LIMD¥12,300202210-202312

main75927-0E010iAXUH70..LIMD¥12,300202311-202410

main75927-0E020iAXUH7#,TXUA75..LHD..(LE,XLE)202210-202311

main75927-0E020iAXUH7#,GSU7#..LE,XLE202002-202210

main75927-0E020iAXUH78,TXUA7#..LE..ARL202210-202312

main75927-0E020iAXUH7#,TXUA7#..LE,XLE202311

75928BTAPE, BLACK OUT, NO.4 LH

main75928-0E010iAXUH70..LIMD202311-202410

main75928-0E010iAXUH7#,GSU7#..LIMD202002-202210

main75928-0E010iAXUH7#,TXUA75..LHD..LIMD202210-202311

main75928-0E010iAXUH78,TXUA7#..RHD..LIMD202210-202312

main75928-0E010iAXUH78,TXUA7#..LIMD202311

main75928-0E020iAXUH7#,TXUA7#..LE,XLE202311

main75928-0E020iAXUH78,TXUA7#..LE..ARL202210-202312

main75928-0E020iAXUH7#,TXUA75..LHD..(LE,XLE)202210-202311

main75928-0E020iAXUH7#,GSU7#..LE,XLE202002-202210

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0E030iAXUH78,TXUA7#..RHD202210-202312

main87963-0E030iAXUH7#,GSU7#202002-202210

main87963-0E030iAXUH7#,TXUA75..LHD202210-202311

main87963-0E030iAXUH70..LIMD202311-202410

main87963-0E030iAXUH78,TXUA7#;AXUH70..LE,XLE202311

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0E030iAXUH78,TXUA7#;AXUH70..LE,XLE202311

main87964-0E030iAXUH7#,GSU7#202002-202210

main87964-0E030iAXUH78,TXUA7#..RHD202210-202312

main87964-0E030iAXUH70..LIMD202311-202410

main87964-0E030iAXUH7#,TXUA75..LHD202210-202311

9008015074

main90080-15074¥60

9008410049

main90084-10049

90119A0247

main90119-A0247

90178A0023

main90178-A0023

9018906227

main90189-06227¥70

9033320001

main90333-20001¥70

9033330008

main90333-30008¥70

9033340001

main90333-40001¥100

9095001911

main90950-01911¥50

9095001A02

main90950-01A02¥100

9095001A05

main90950-01A05¥100

47 parts on this diagram · 2 diagrams in section
