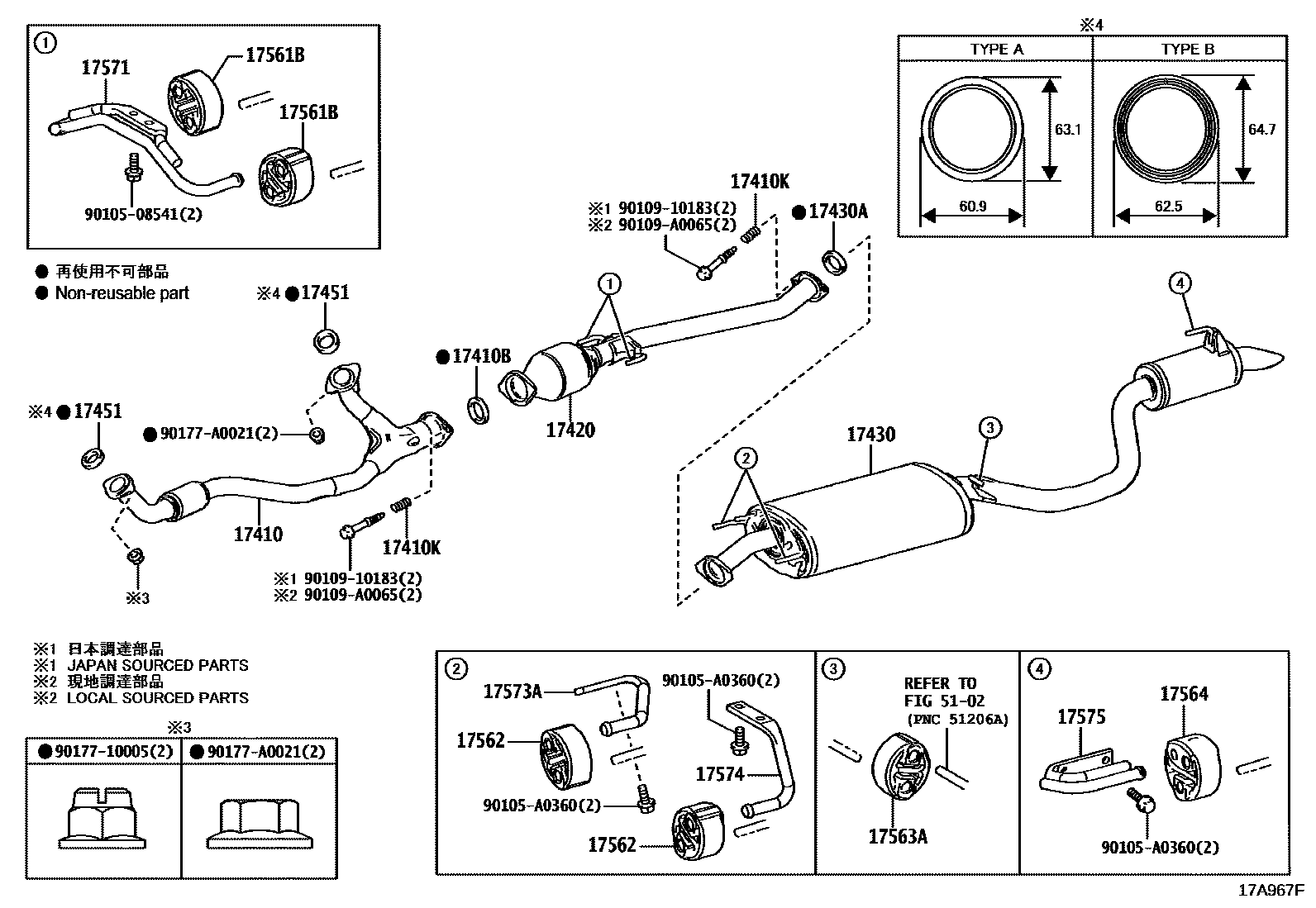

Toyota HIGHLANDER/KLUGER — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17410-F0271
*114=TOYOTA/PC6/Y
UKRAINE SPEC
GEORGIA SPEC
AZERBAIJAN SPEC
17410BGASKET, EXHAUST PIPE
17410KSPRING, EXHAUST PIPE
(J)
(L)
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17451GASKET, EXHAUST PIPE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17564SUPPORT,EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102
9010508541
90105A0360
main90105-A0360
9010910183
90109A0065
main90109-A0065
9017710005
90177A0021
22 parts on this diagram · 3 diagrams in section
