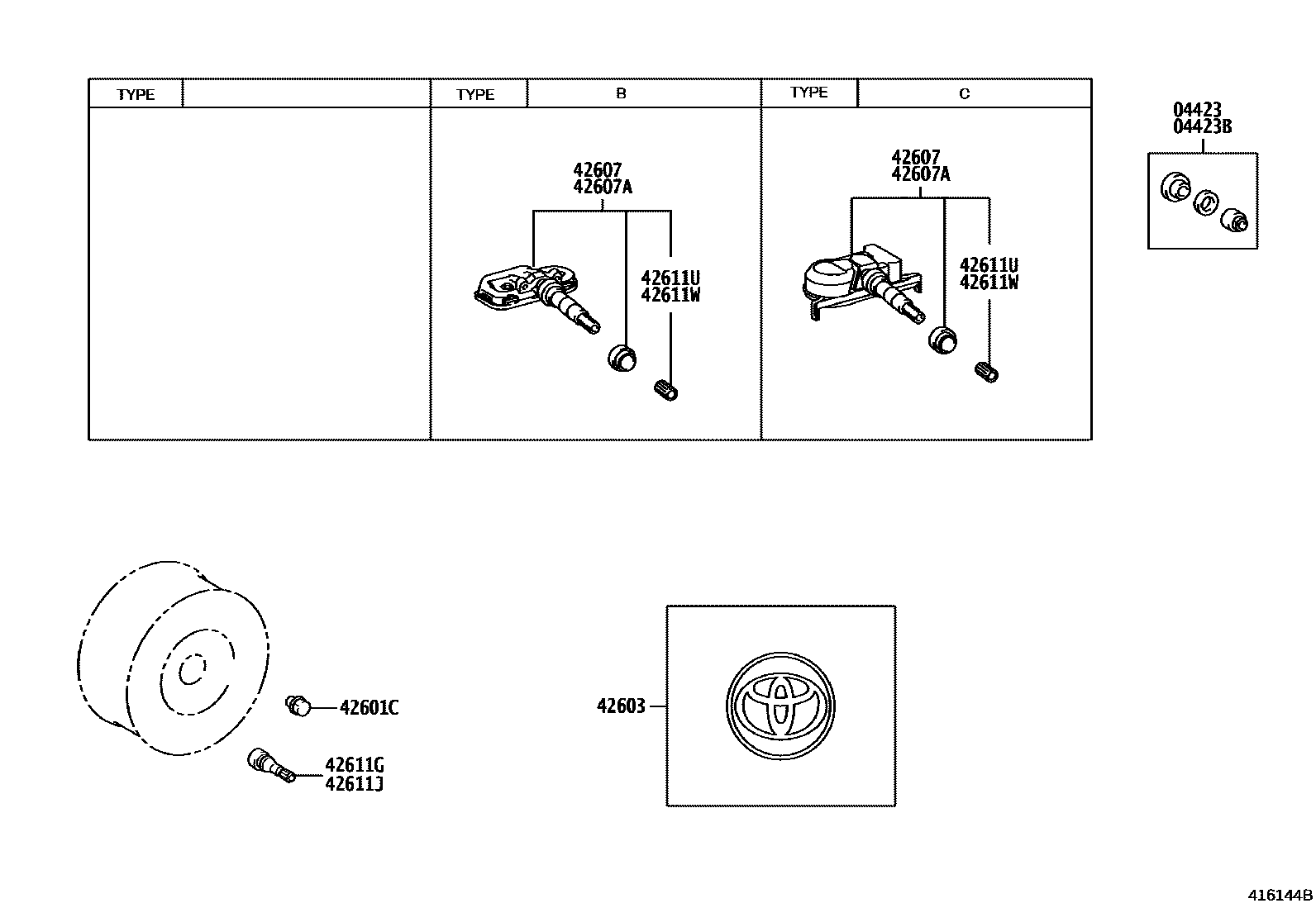

Toyota HIGHLANDER/KLUGER — DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0E010iAXUH7#,GSU75..EUR,GCC,RUS¥280202002-202410

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-0E010iAXUH7#,TXUA75..GCC,RUS¥280202210-202311

ISRAEL SPEC&PLATINUM PACKAGE

main04423-0E010iAXUH7#,TXUA75..GCC,RUS¥280202210-202311

UKRAINE SPEC

main04423-0E010iAXUH7#,TXUA75..GCC,RUS¥280202210-202311

UKRAINE SPEC&PLATINUM PACKAGE

main04423-0E010iAXUH78..LHD..EUR¥280202210-202311

GEORGIA SPEC

main04423-0E010iAXUH78..LHD..EUR¥280202210-202311

GEORGIA SPEC&PLATINUM PACKAGE

main04423-0E010iAXUH78..LHD..EUR¥280202210-202311

AZERBAIJAN SPEC

main04423-0E010iAXUH78..LHD..EUR¥280202210-202311

AZERBAIJAN SPEC&PLATINUM PACKAGE

main04423-0E010iAXUH78..LHD..EUR¥280202210-202311

ISRAEL SPEC

main04423-0E010iGSU75..RUS¥280202003-202210

42601WHEEL, DISC

main4260D-0E030iAXUH7#..LIMD..GCC¥60,700202002-202410

20X8J,#,TYPE D:REFER ILLUST.

main42611-0E510iAXUH7#,GSU7#..LE..(ARL,GCC)202002-202312

18X8J,#,TYPE A:REFER ILLUST.

main42611-0E530iAXUH7#..XLE..GCC202002-202311

18X8J,#,TYPE B:REFER ILLUST.

main42611-0E580iAXUH7#..XLE..GCC202002-202311

18X8J,#,TYPE C:REFER ILLUST.

main42611-0E590iAXUH78,TXUA75..(LE,XLE)..(EUR,RUS)202003-202311

18X8J,#,TYPE C:REFER ILLUST.

main4261A-0E150iAXUH78..RHD..EUR202003-202312

20X8J,#,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001iAXUH7#,TXUA7#¥410202002-202310

sub90942-A1009¥370

main90942-A1009iAXUH78,TXUA7#;AXUH70..LE,XLE¥370202311-202410

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-08010iAXUH78,TXUA7#..RHD202002-202410

*ALU

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-07010iAXUH7#,GSU75..EUR,GCC,RUS¥7,200202002-202210

TYPE B:REFER ILLUST.

main42607-08030iAXUH70..LIMD202210-202410

TYPE C:REFER ILLUST.

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-07010iAXUH7#,GSU75..GCC,RUS¥7,200202002-202210

TYPE B:REFER ILLUST.

main42607-08030iAXUH78..LHD..LIMD..EUR202210-202311

ISRAEL SPEC,TYPE C:REFER ILLUST.

main42607-08030iAXUH7#,TXUA75..GCC,RUS202210-202410

TYPE C:REFER ILLUST.

main42607-08030iAXUH7#,TXUA75..GCC,RUS202210-202311

GEORGIA SPEC,TYPE C:REFER ILLUST.

main42607-08030iAXUH7#,TXUA75..GCC,RUS202210-202311

GEORGIA SPEC&PLATINUM PACKAGE,TYPE C:REFER ILLUST.

main42607-08030iAXUH7#,TXUA75..GCC,RUS202210-202311

AZERBAIJAN SPEC,TYPE C:REFER ILLUST.

main42607-08030iAXUH7#,TXUA75..GCC,RUS202210-202311

AZERBAIJAN SPEC&PLATINUM PACKAGE,TYPE C:REFER ILLUST.

main42607-08030iAXUH7#,TXUA75..GCC,RUS202210-202311

ISRAEL SPEC&PLATINUM PACKAGE,TYPE C:REFER ILLUST.

main42607-08030iAXUH7#,TXUA75..GCC,RUS202210-202311

UKRAINE SPEC,TYPE C:REFER ILLUST.

main42607-08030iAXUH7#,TXUA75..GCC,RUS202210-202311

UKRAINE SPEC&PLATINUM PACKAGE,TYPE C:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90080-45006iAXUH78,GSU7#..ARL¥470202012-202410

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iAXUH78,GSU7#..ARL,EUR¥470202011-202410

42611UCAP, TIRE VALVE

main90942-A5002iAXUH7#,GSU75..EUR,GCC,RUS¥90202002-202210

TYPE B:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..EUR,GCC,RUS¥90202210-202410

TYPE C:REFER ILLUST.

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-A5002iAXUH7#,GSU75..GCC,RUS¥90202002-202210

TYPE B:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202410

TYPE C:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202311

GEORGIA SPEC,TYPE C:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202311

GEORGIA SPEC&PLATINUM PACKAGE,TYPE C:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202311

AZERBAIJAN SPEC,TYPE C:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202311

AZERBAIJAN SPEC&PLATINUM PACKAGE,TYPE C:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202311

ISRAEL SPEC,TYPE C:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202311

ISRAEL SPEC&PLATINUM PACKAGE,TYPE C:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202311

UKRAINE SPEC,TYPE C:REFER ILLUST.

main90942-A5002iAXUH7#,TXUA75..GCC,RUS¥90202210-202311

UKRAINE SPEC&PLATINUM PACKAGE,TYPE C:REFER ILLUST.

11 parts on this diagram · 2 diagrams in section
