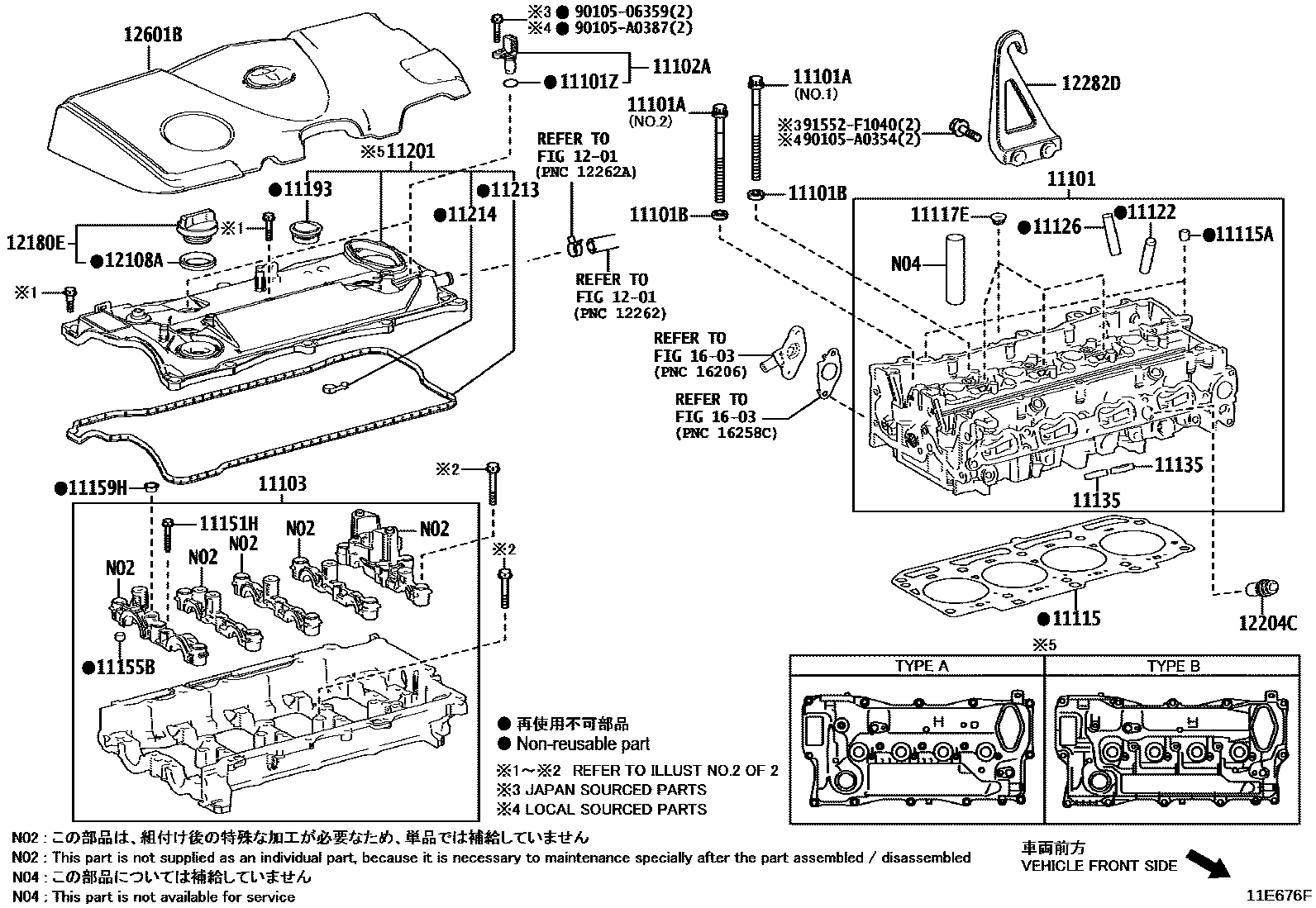

Toyota HIGHLANDER/KLUGER — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
*697
*636
(J),*636
*694
*489 OR *715 OR *716
*489 OR *769
(L),*636
*695
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1,(J)
*636,NO.1:REFER ILL.
*636,NO.2:REFER ILL.
NO.2,(J)
NO.2
NO.2,(J),NO.2
NO.1,(L)
*489,NO.1:REFER ILL.
*489,769NO1:REF ILL.
*489,769NO2:REF ILL.
*489,NO.2:REFER ILL.
NO.2,(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
*636,*489 OR *769
*489,*636
(L)
11101ZO RING, CAM POSITION SENSOR
*636,*489
*636,*489 OR *769
*489,*636
11102HEAD, CYLINDER, LH
*697
11102ASENSOR, CAMSHAFT POSITION
*636
(J)
(L)
*489
*489 OR *769
11103HOUSING SUB-ASSY, CAMSHAFT
(J)
*636
*489
*489 OR *769
(L)
11115GASKET, CYLINDER HEAD
*636
(J)
*489 OR *769
*489
(L)
11115APIN, RING
*489,*636
*636,*489 OR *769
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*489,(J)
(J),*636
*636
*489 OR *769(L)
*489,(L)
*489
(L),*636
11122BUSH, INTAKE VALVE GUIDE
STD,*636,*489 OR *769
STD,*489,*636
STD,*636,*489
STD,*694,*695
STD
O/S 0.05,*694,*695
O/S 0.05,*636,*489 OR *769
O/S 0.05
O/S 0.05,*489,*636
O/S 0.05,*636,*489
11126BUSH, EXHAUST VALVE GUIDE
STD,*489
STD,*489 OR *769
O/S 0.05,*636
O/S 0.05,*489
O/S 0.05,*489 OR *769
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD,*636,*489 OR *769
STD,*636
STD,*489,*636
STD,*636,*489
STD,*489
STD,*489,(J)
STD,*694,*695
STD,*489
STD,*489,(L)
O/S 0.03,*489,*636
O/S 0.03,*636,*489 OR *769
O/S 0.03,*636
O/S 0.03,*489
11151PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*636
(J)
(L)
*489
*489 OR *769
11155BPIN, RING
*489 OR *769
*636
*489,*636
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*636,*489
*489,*636
*636,*489 OR *769
11193GASKET, SPARK PLUG TUBE
*636
(J)
*489 OR *769
(L)
*489
11201COVER SUB-ASSY, CYLINDER HEAD
*636
*636T/P A:REF.ILLUST
*694
*636T/P B:REF.ILLUST
*489,769T/PA:REF ILL
sub11201-F0060
*695,(L)
*489,769T/PB:REF ILL
11213GASKET, CYLINDER HEAD COVER
*489,*636
*636,*489 OR *769
(J)
(L)
11214GASKET, CYLINDER HEAD COVER, NO.2
*636,*489 OR *769
*489,*636
(J)
(L)
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
*489,*636
*636,*489
*636,*489 OR *769
12180ECAP ASSY, OIL FILLER
*636,*489
*636,*489 OR *769
*489,*636
12204CVALVE SUB-ASSY, VENTILATION
*636,*489 OR *769
*636
*489
*636,*489
12282DHANGER, ENGINE, NO.2
*489,*636
*636,*489 OR *769
12601BCOVER SUB-ASSY, ENGINE, NO.1
1603
9010506359
90105A0354
main90105-A0354
90105A0387
main90105-A0387
91552F1040
33 parts on this diagram · 10 diagrams in section
